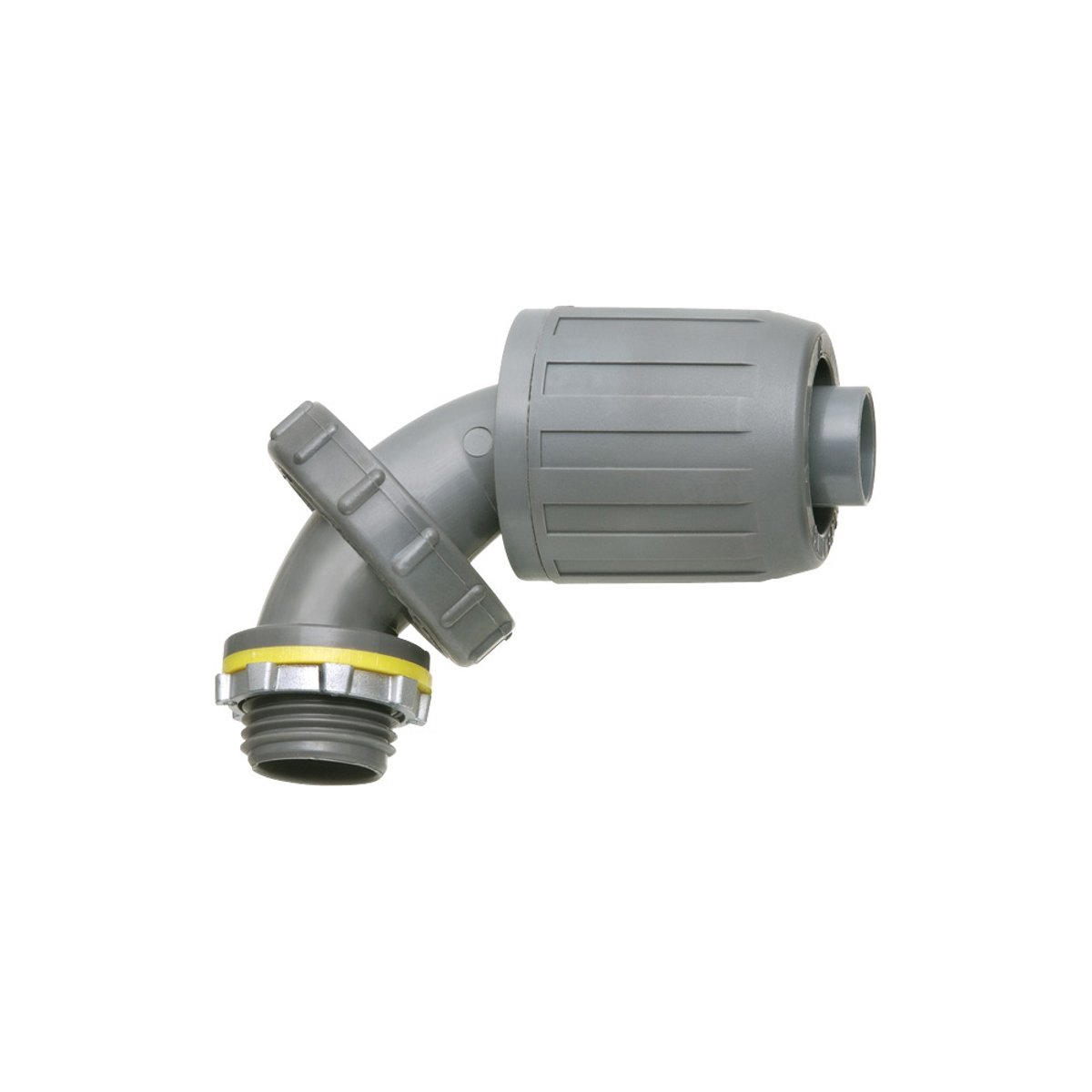

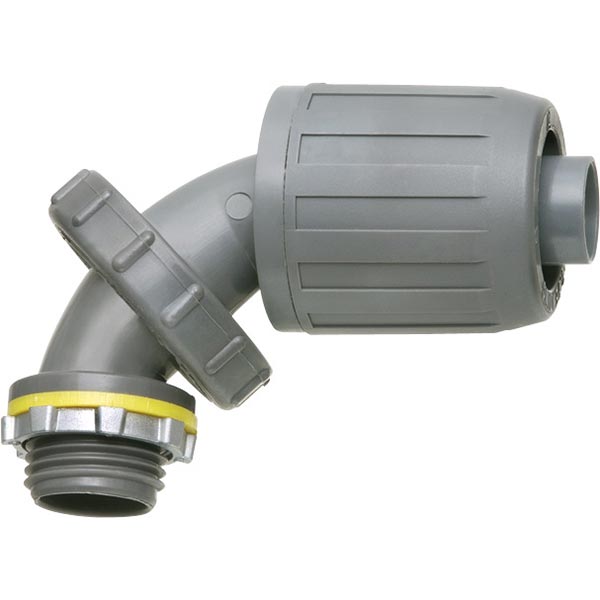

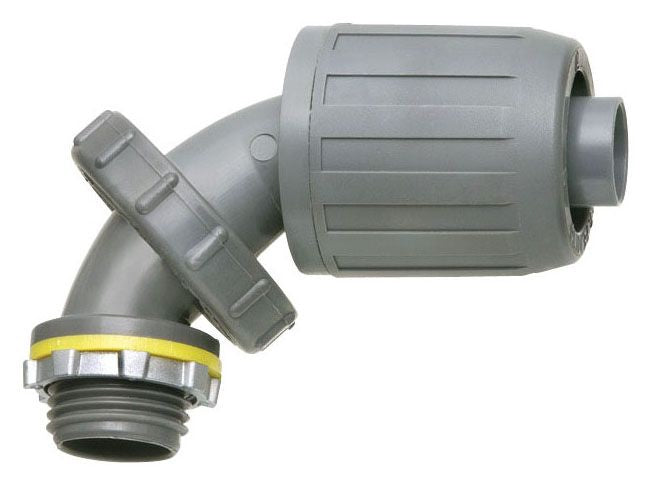

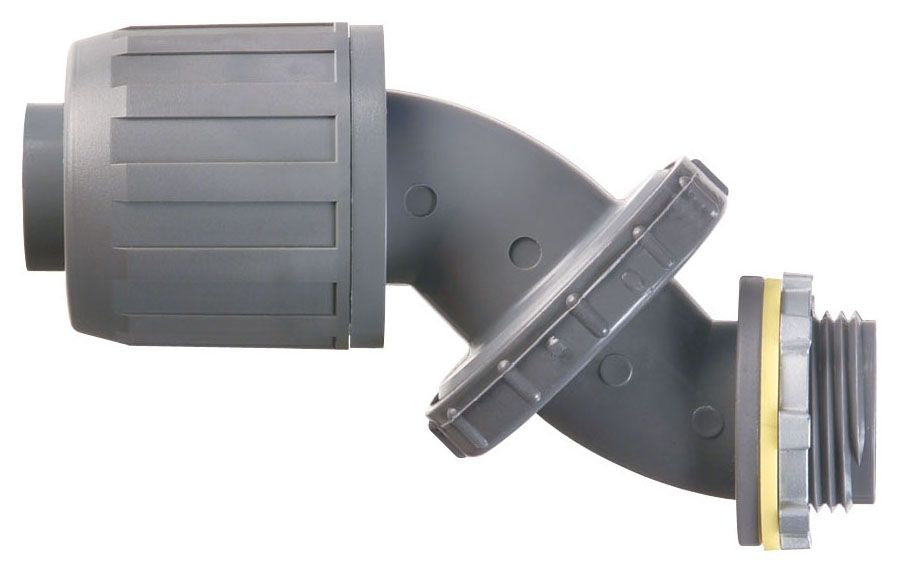

Arlington NMLT590 Zero to 90 degree SNAP2IT Non Metallic Liquid Tight Connector 1/2 inches Trade Size

Product Description

The Arlington NMLT590 is a zero to 90 degree SNAP2IT non-metallic liquid-tight connector designed for type B conduit. It features a 1/2" trade size and adjusts from 0 to 90 degrees by loosening and retightening the center nut. This connector offers a push-on installation for NM cable applications.

• Adjusts for angles from 0 to 90 degrees
• Suitable for type B liquidtight non-metallic conduit
• UV-rated plastic construction

Product Highlights

This liquid tight connector is ideal for creating secure connections in tight spaces. UL and CSA listed.

Product Information

Standard Information

• Brand: Arlington
• Manufacturer Part Number: NMLT590
• Country of Origin: USA

Technical Specifications

• Catalog Number: NMLT590
• Manufacturer: Arlington
• Brand: Arlington
• Sub Brand: Snap2It, Zero to 90
• Country of Origin: United States
• Made in USA: Yes
• Application: NM Cable, Outdoor
• Connection: Threaded X Push In
• Form: Form B
• Material: UV-Rated Plastic
• Special Features: 1/2 IN Knockout
• Standard: UL and CSA
• Item Type: Push-In Connector
• Size: L(2.435) x W(3.165) x H(3.165)
• Mounting Type: Push-In/Threaded
• Suitable For Use With: Type B Liquidtight Non-Metallic Conduit
• Type: Non-Metallic, Push-In
• Trade Size: 1/2 in
• Angle: 90 deg
• Adjustable: Yes - Adjusts from 0° to 90°
• Conduit Type: Non-Metallic Liquid Tight Conduit, Type B Only
• Knockout Size(s): 1/2"
• Style: Push-On
• Approval: UL, CSA
• Used On: Non-Metallic Liquidtight Type B Conduit
• Overall Dimension: 3.165 Inch W x 2.435 Inch H
• Standards/Approvals: CSA File No. LR49636|UL File No. E60812
• Mfg Standards/Approvals: CSA File No. LR49636|UL File No. E60812
• GTIN: 00018997039002
• UPC: 018997039002
• UNSPSC: 39121420
• Standard & Approvals: CSA Certified, UL Listed, RoHS Complaint
• Features & Benefits: 1/2 in knockout size Form B
• ADI Part Number: 9N-NMLT590
• Brand Name: Arlington Industries
