Product Description

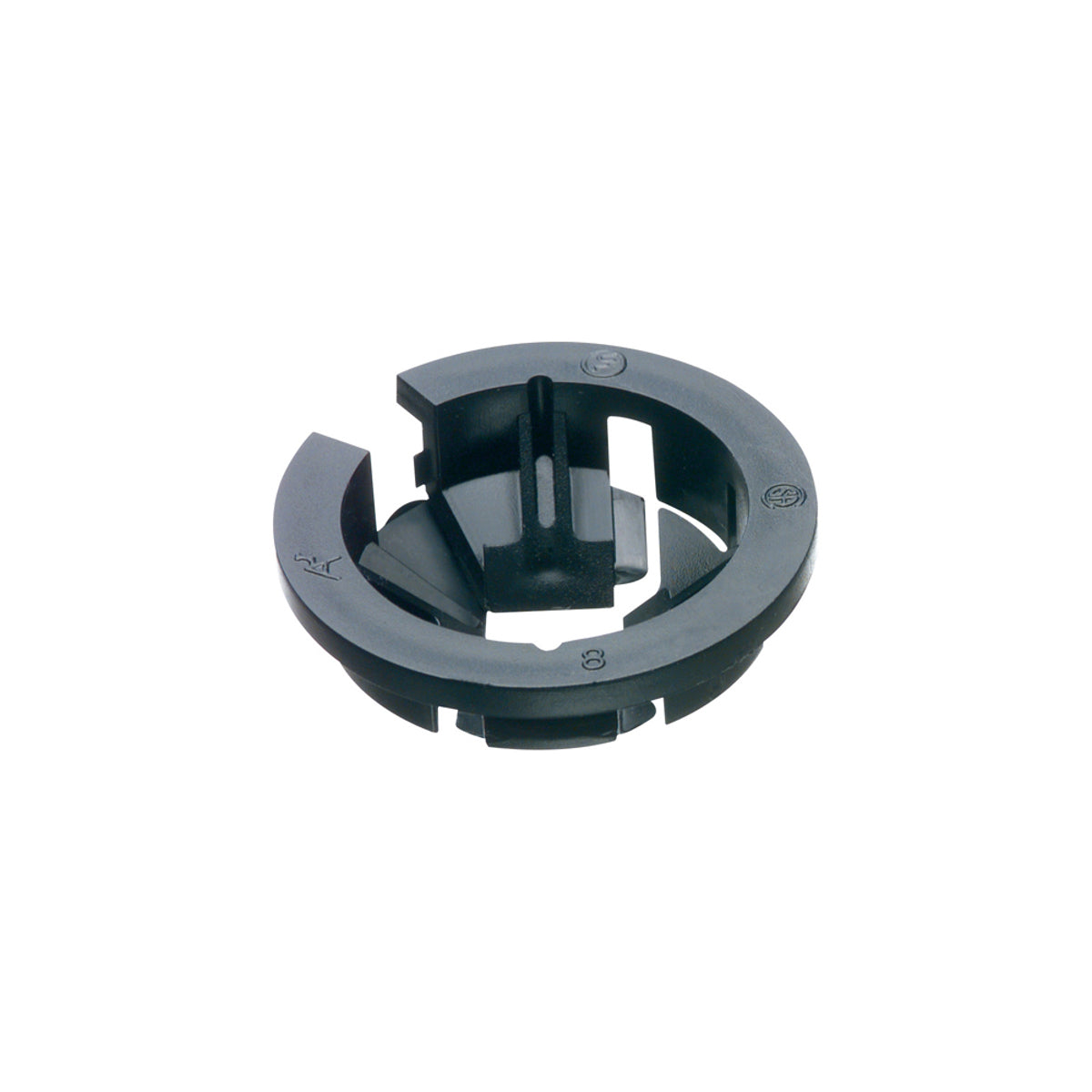

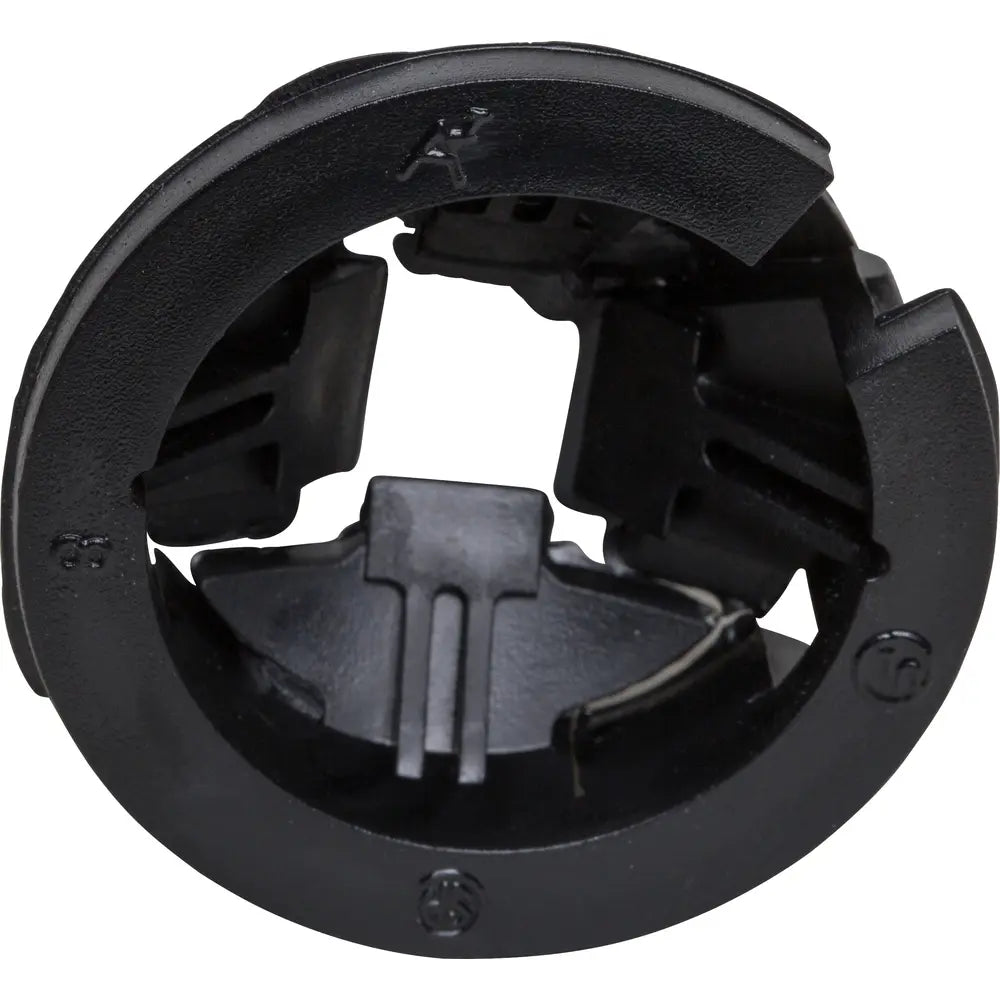

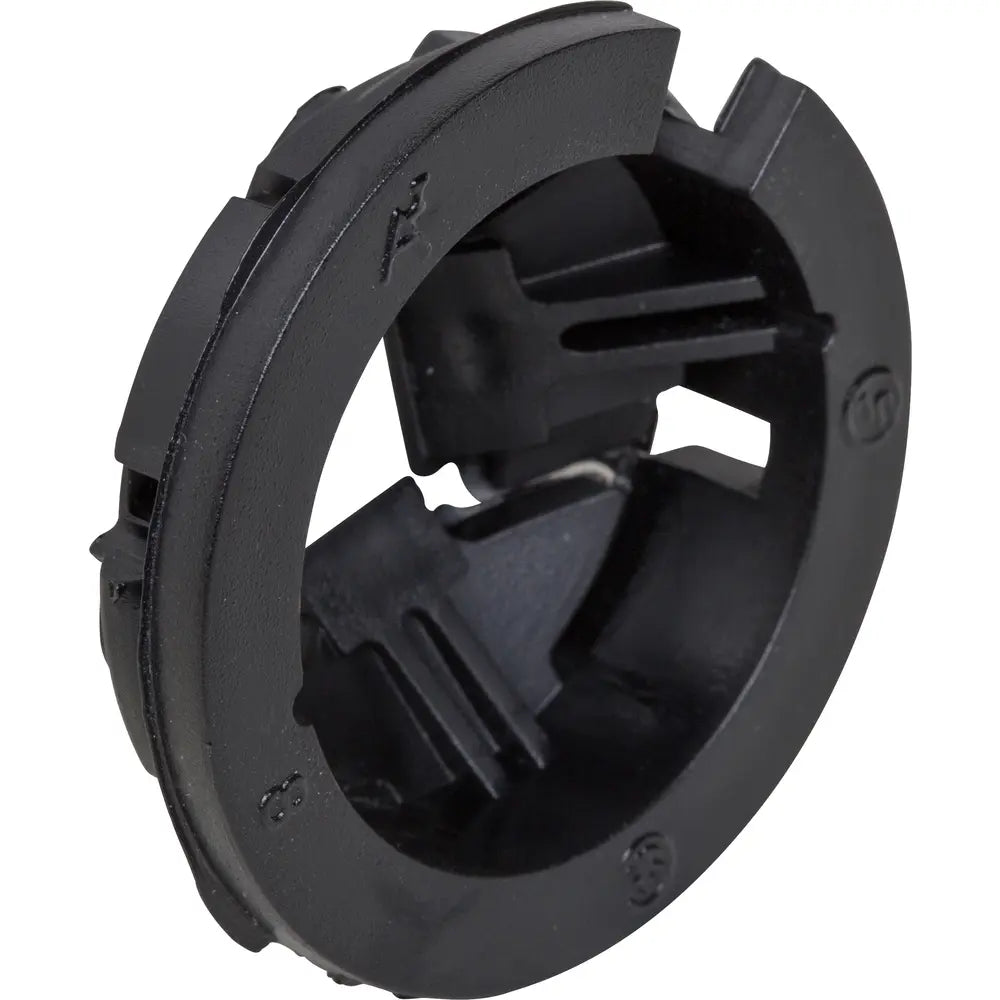

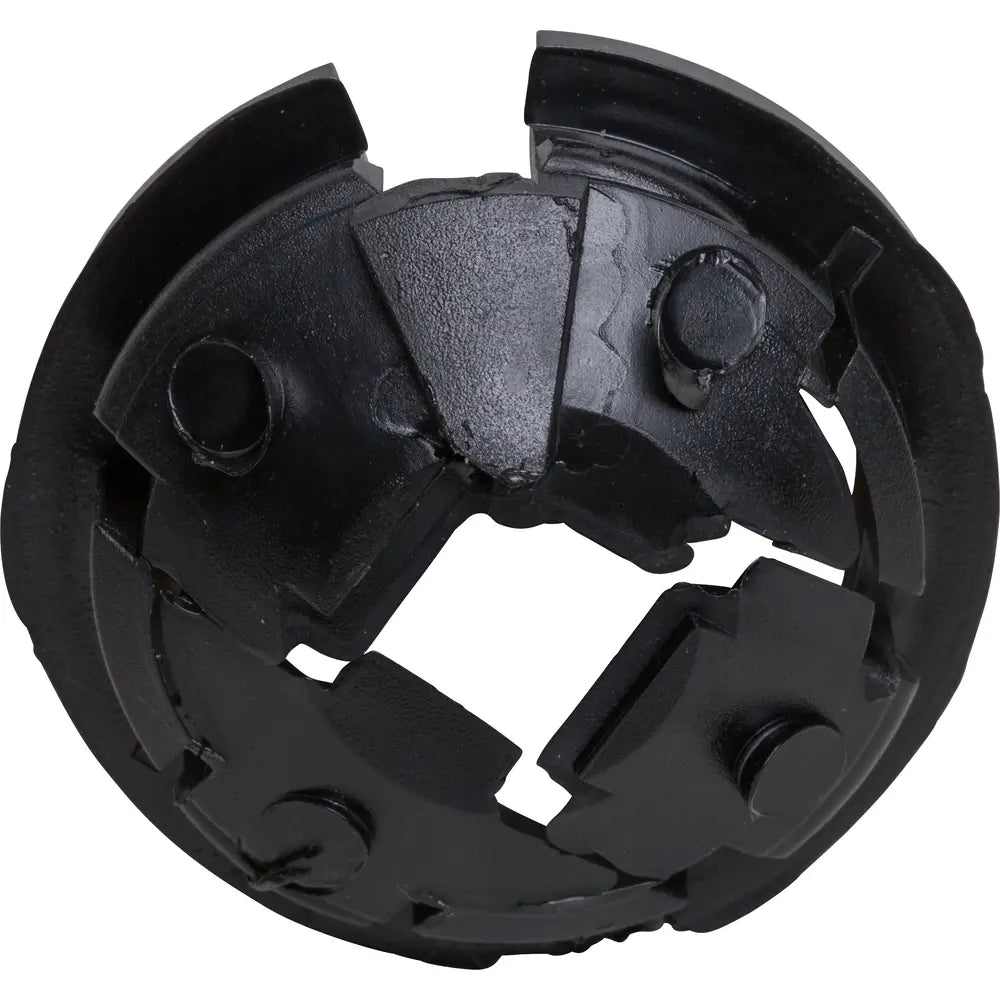

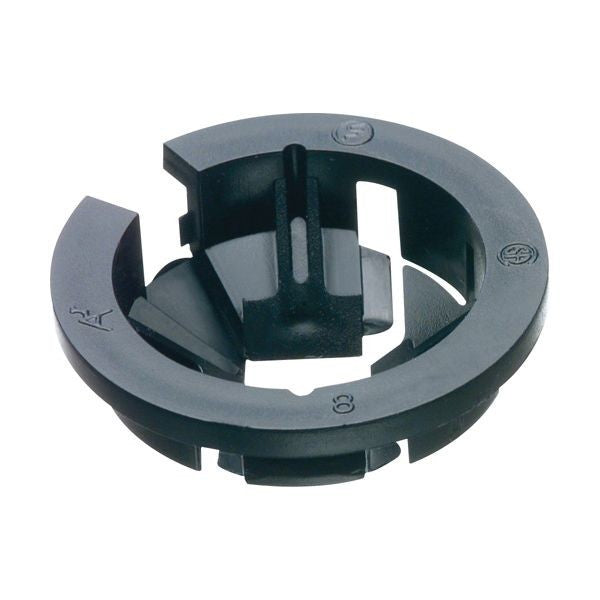

The Arlington NM96 is a plastic, 1" knockout size push-in connector that snaps into a knockout using light finger pressure. It securely holds wires and is simple to remove with the twist of a screwdriver. This non-insulated connector features a push-in connection.
- Push-in connector
- Snaps into knockout using light finger pressure
- Holds wires securely
Product Highlights
The Arlington NM96 offers a simple and secure solution for connecting wires in 1" knockouts, with easy installation and removal.
Product Information
Standard Information
-
Brand: ARLINGTON
-
Manufacturer Part Number: NM96
-
Country of Origin: USA
Technical Specifications
-
Type: Non-Metallic Push-in Connectors
-
Length: 0.683 Inches
-
Diameter: 1.648 Inches
-
Material: Plastic
-
Standard: cULus
-
Connection: Push-In
-
Insulation: Non-Insulated
-
Trade Size: 1 in
-
Country of Origin: US
-
MPN: NM96
-
Brand: ARLINGTON
-
Knockout Size: 1"
-
Cable Type: NM
-
Connection Type: Push-In
-
Standards/Approvals: CSA File No. LR49636|cULus 372D|ECCN EAR99|UL Listed
-
Number of Conductors: 4/3 to 8/3 and 6/2 to 6/3 AWG
-
Application: NM Cable
-
Cable Entry: Black
-
Product Name: Non-Metallic Cable Connector
-
Connector Type: Push-in
-
Stripped Catalog Number: NM96
-
Catalog Description (MFR): Plastic, 1" knockout size Push-in connector snaps into knockout using light finger pressure, holds wires securely and is simple to remove with the twist of a screw driver.
-
Invoice Description (MFR): 1" PLASTIC NM CBLE CN
-
Buy Line: ARL
-
Catalog Number: NM96
-
Manufacturer: Arlington
-
Made in USA: Yes
-
UPC: 018997721587
-
GTIN: 00018997721587
-
Item Type: Push-In Connector
-
Installation: Push-In
-
Cable Size: (3) 8 to 4 AWG, (1) 6/2 to 6/3 AWG
-
Approval: UL, CSA
-
Conductor Size: (1) 4/3-8/3 AWG, (1) 6/2-4/2 AWG
-
UNSPSC: 39121409
-
Manufacturer Name: Arlington
-
Sub Brand: Black Button
