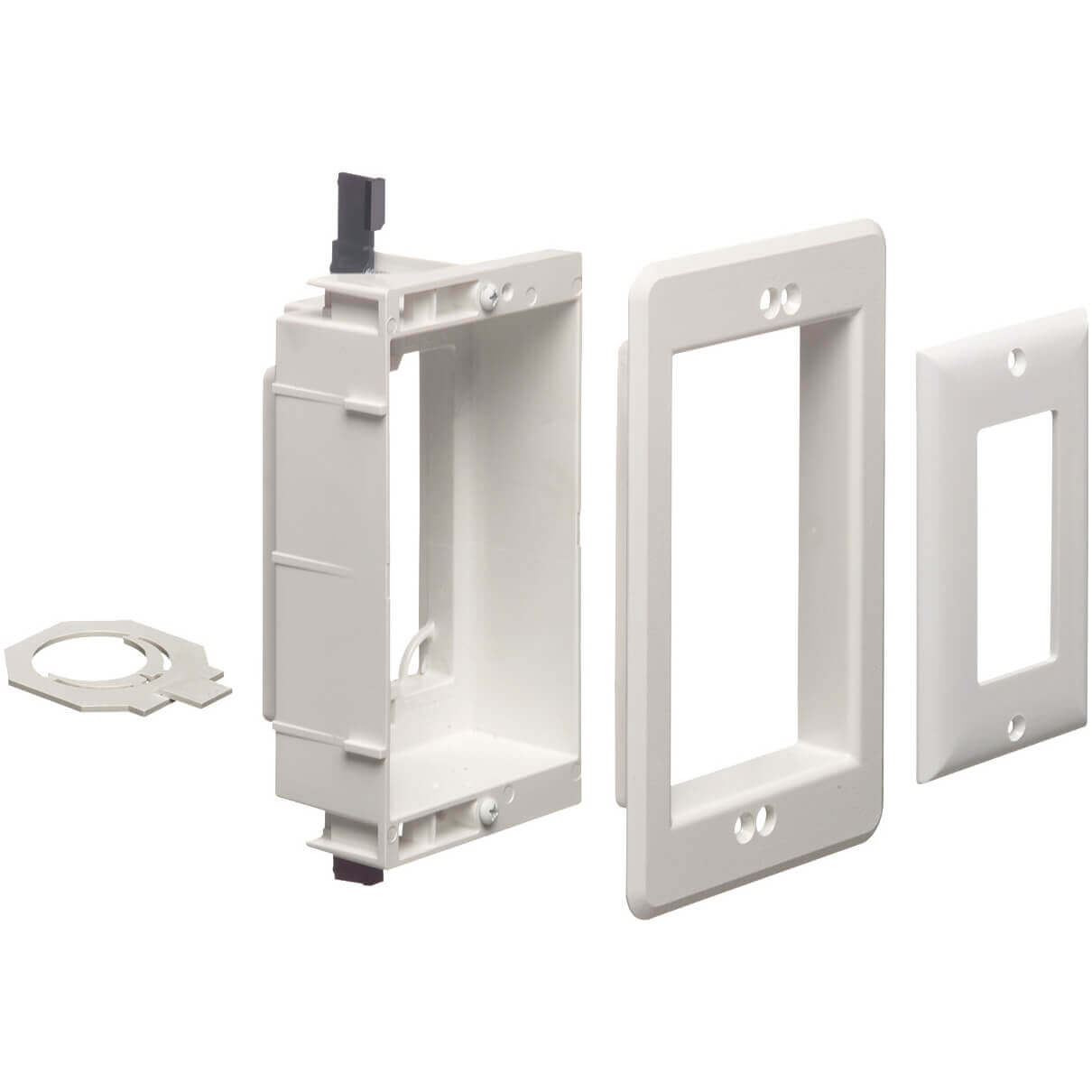

Arlington LVU1W Recessed Low-Voltage Mounting Bracket 1-Gang

Product Description

The ARLINGTON LVU1W recessed low-voltage mounting bracket is designed for both new and old construction. This non-metallic, 1-gang bracket allows for quick and easy installation of Class 2 low-voltage wiring recessed in the wall. It adjusts to fit 1/4" to 1-1/2" wall thicknesses and features mounting wings for secure attachment.

• Non-metallic construction
• Suitable for old or new work
• Recessed design allows connectors to be set back
• Adjusts to fit 1/4" to 1-1/2" wall thicknesses

Product Highlights

This mounting bracket is a space-saving solution for installing low-voltage wiring behind plasmas, LCD TVs, and other applications where space is limited.

Product Information

Standard Information

• Brand: ARLINGTON
• Manufacturer Part Number: LVU1W
• Country of Origin: USA

Technical Specifications

• Type: 1-Gang
• Material: Plastic
• Trade Size: 1-Gang
• Usage: Quick and Easy Installation of Class 2 Low-Voltage Wiring Recessed in the Wall
• Brand Name: Arlington Industries
• Manufacturer: Arlington Industries, Inc
• Manufacturer Part Number: LVU1W
• Packaged Quantity: 1
• Product Model: LVU1W
• Product Name: LVU1W Single Gang Recessed Mounting Bracket
• Product Series: LVU
• Product Type: Mounting Bracket
• Compatibility: Low Voltage Class 2 Device
• UL / CSA Listed: Yes
• Applications: Retrofit or New Construction
• Wall Plates: Accepts Standard 1 Gang Wall Plates and Decorator Plates
• Impact Resistant: Impact Resistant Plastic
• Stud Compatibility: Works with 2 x 4 Studs and 3/8" or Thicker Sheetrock
• Panel Cut Out Dimensions: 3.25"W x 5.9" H
• Overall Dimensions: 4 3/16" W x 6 11/16"H x 2 3/16" D
