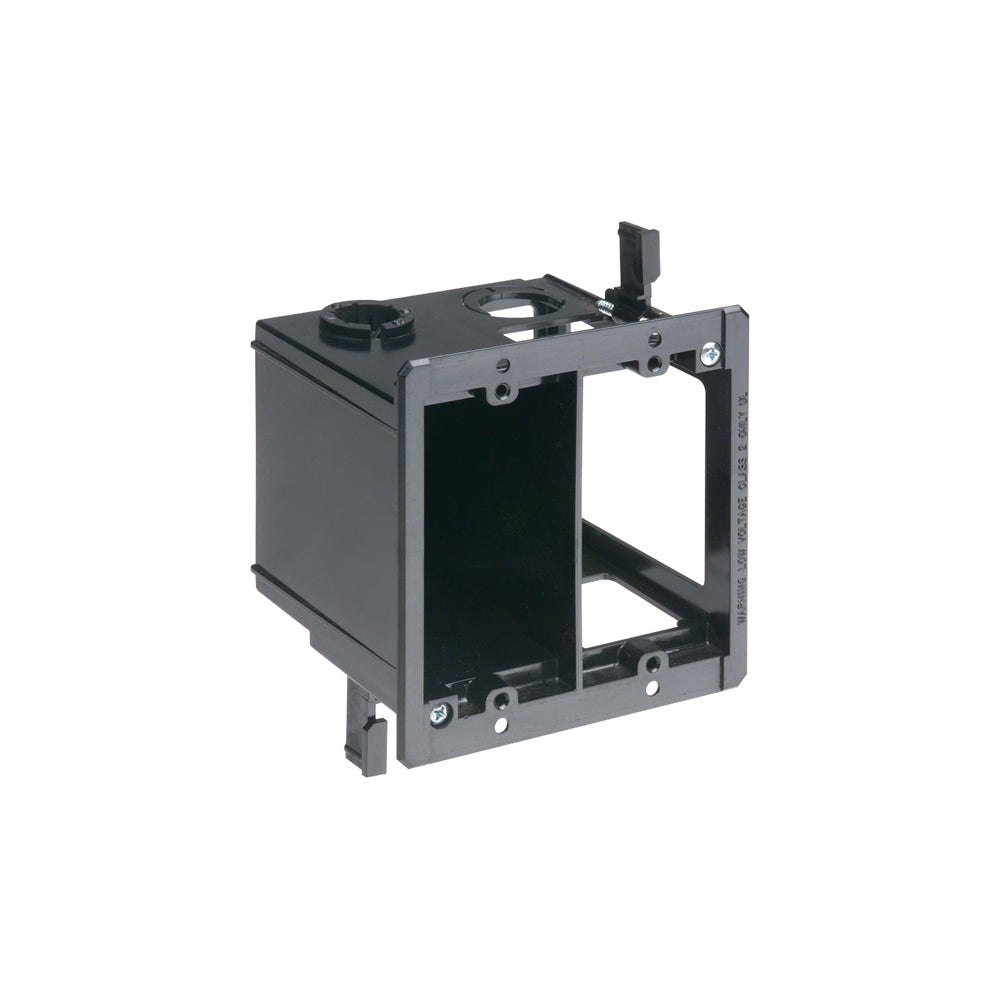

Arlington LVDR2 Power and Low Voltage Box for Existing Construction 20 cu in

Product Description

The Arlington LVDR2 is a power and low voltage box for existing construction. This unit is designed with a low voltage side that features a combination of half inch and three-quarter inch knockouts. It also provides a two-hour fire rating and is ideal for installation in walls with a thickness range from a quarter inch to one and a half inches.

• Combination power and low voltage box
• Two-hour fire rating
• 20 cubic inch capacity

Product Highlights

This box adapts to various installation needs, allowing for both power and low voltage applications.

Product Information

Standard Information

• Brand: Arlington
• MPN: LVDR2

Technical Specifications

• Catalog Number: LVDR2
• Manufacturer: Arlington
• Material: Plastic
• Color: Black
• Application: Power/Phone Cable, Fiber Optic Installation
• Cable Entry: Plastic
• Cubic Capacity: 20 CU IN
• Dimensions: 4.25 in L x 4.185 in W x 3.440 in H
• Mounting Type: Panel/Threaded
• Number of Gangs: 2
• Number of Knockouts: 2
