Arlington LTMC75 Liquid Tight Concrete Fitting for PVC Jacketed MC Cable and Tech90 Cable 3/4 in

Product Description

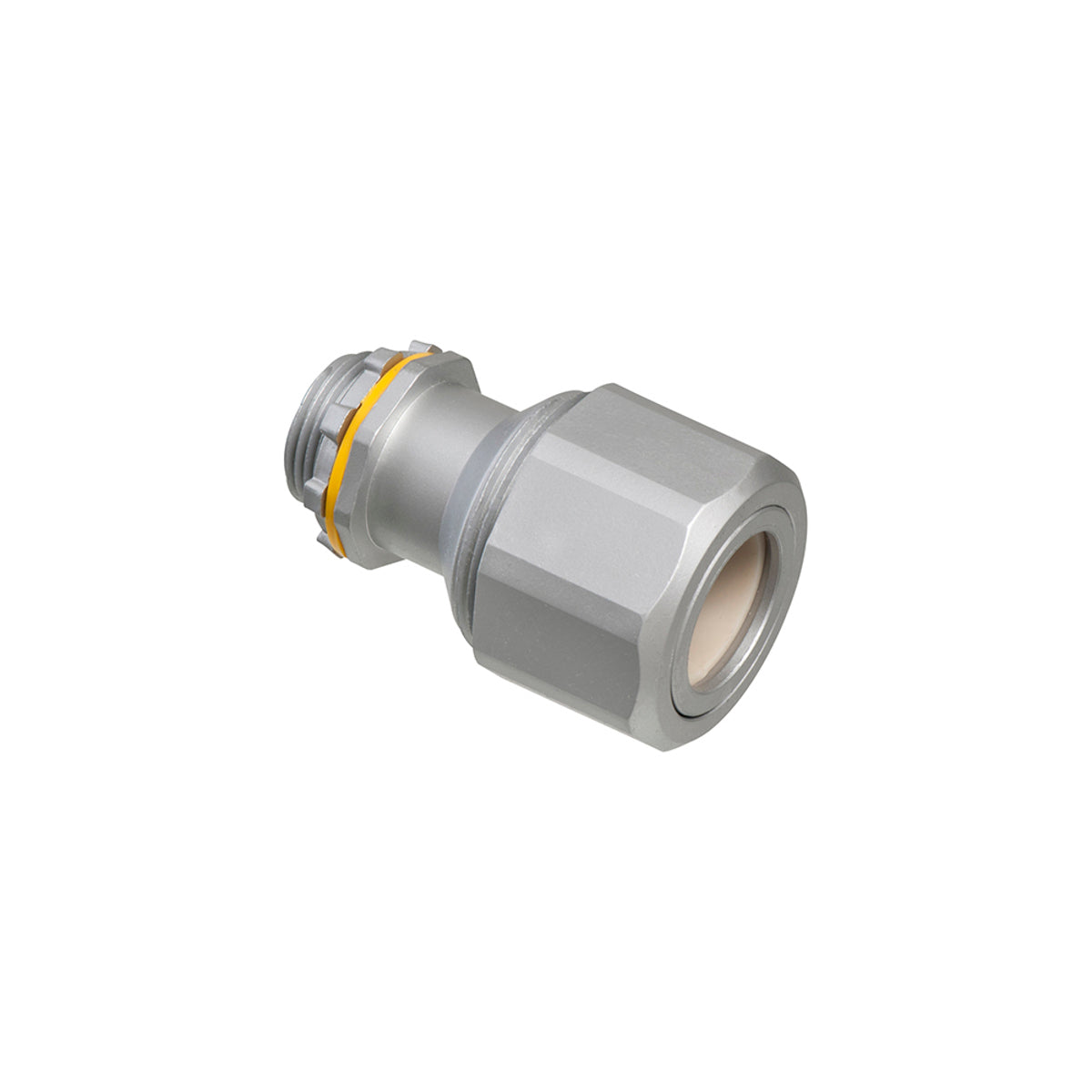

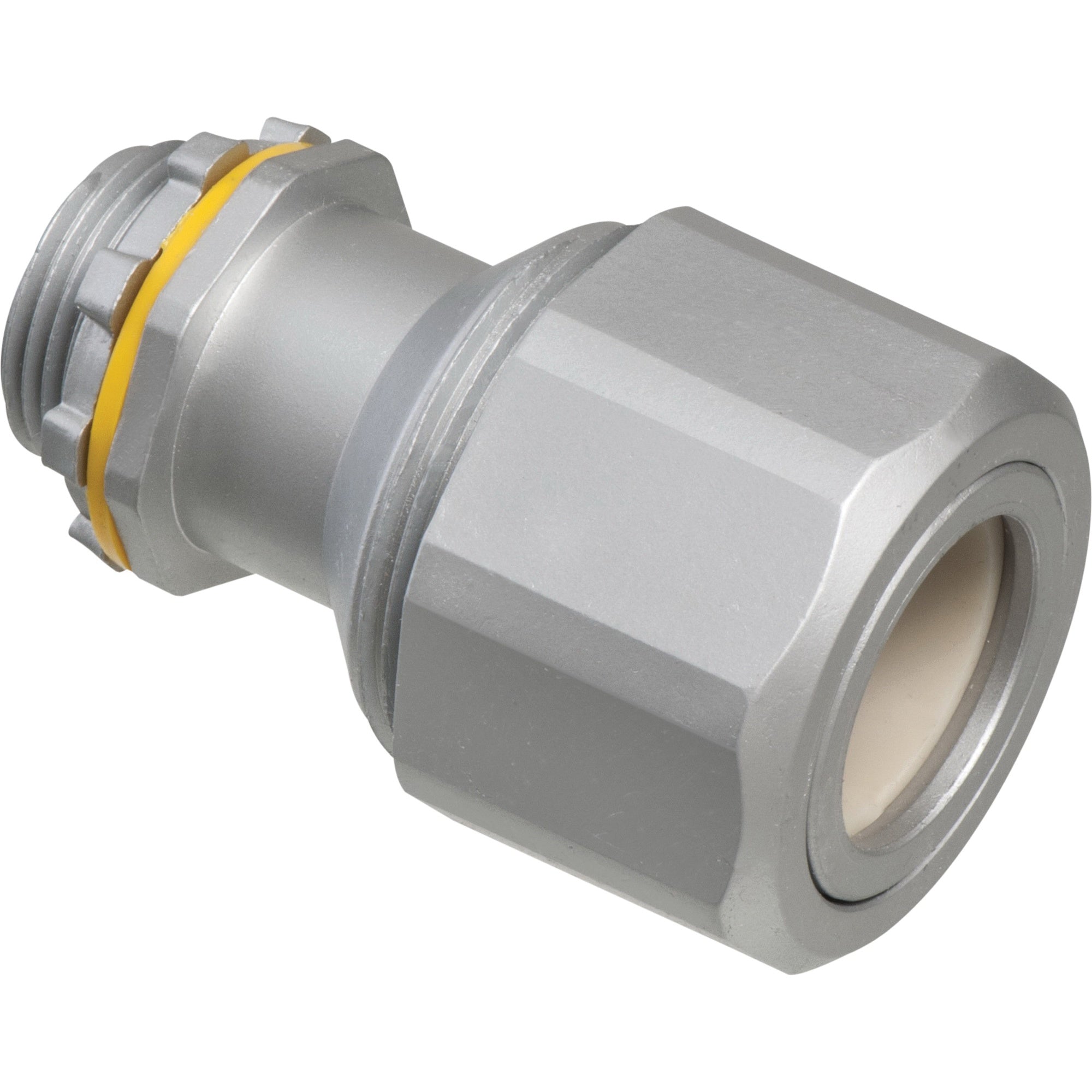

The Arlington LTMC75 is a liquid-tight concrete fitting designed for use with PVC jacketed MC cable and Tech90 cable. It has a trade size of three-fourths inch and accommodates cable ranges from zero point seven two five inches to zero point nine eight inches. This fitting is suitable for parking decks and is made from die-cast zinc for durability.

• Trade size of three-fourths inch
• Cable range of zero point seven two five inches to zero point nine eight inches
• Designed for use with PVC jacketed MC and Tech90 cables

Product Highlights

The Arlington LTMC75 provides a reliable connection in challenging environments. Its construction is liquid-tight and concrete-tight, making it ideal for outdoor applications.

Product Information

Standard Information

• Manufacturer: Arlington Industries
• Part Number: LTMC75

Technical Specifications

• Dimensions: Two point six zero three inches length x one point six eight inches width x one point six eight inches height
• Material: Zinc
• Color: Silver
• Cable Openings: Zero point seven two five inches to zero point nine eight inches
• Type: Concrete/Liquidtight
• UPC: 018997168016
• Weight: Approximately zero point seventeen pounds
