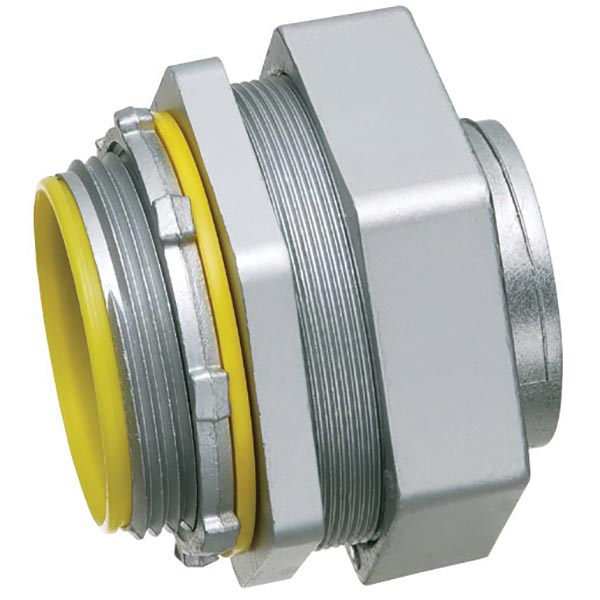

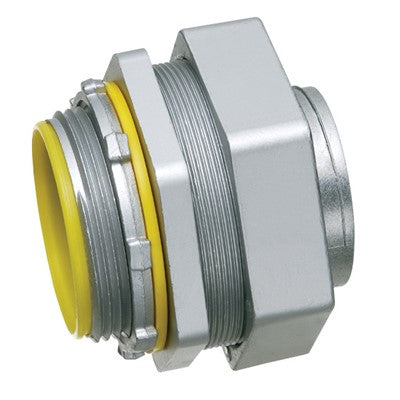

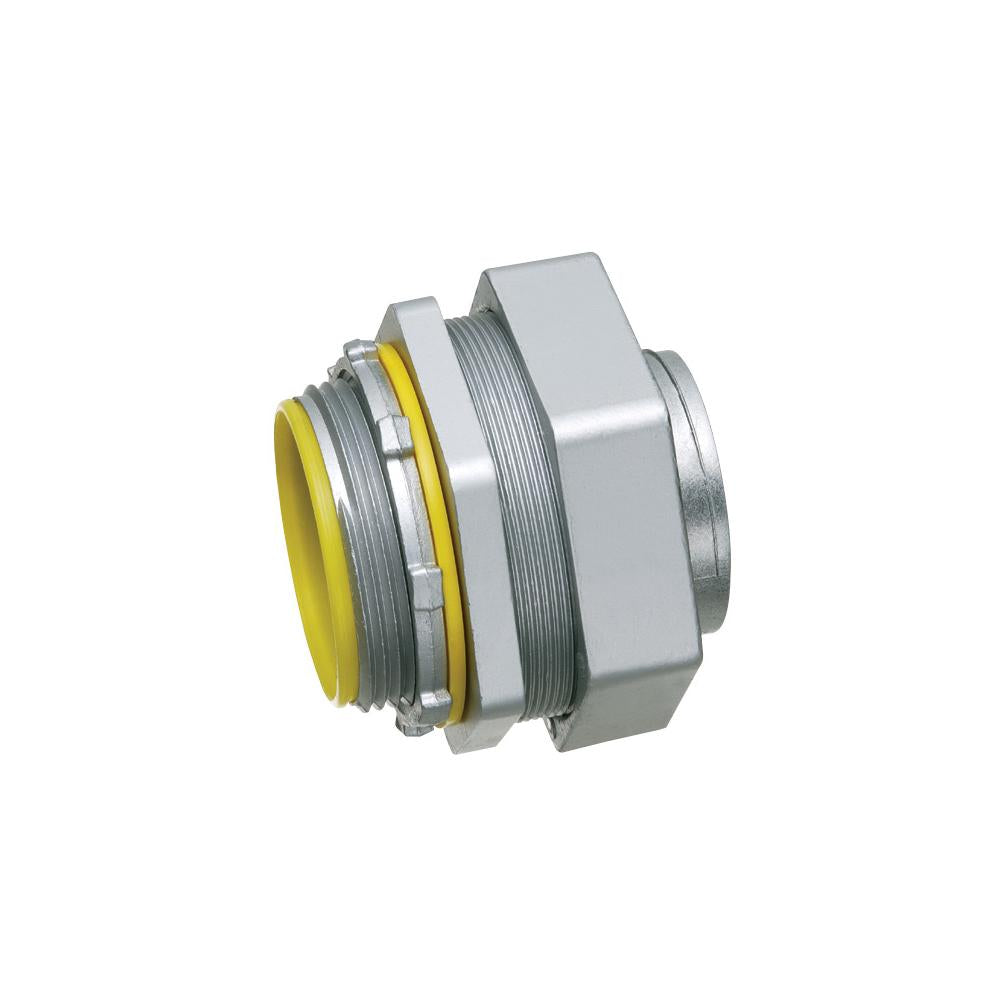

Arlington LT300 Form B Insulated Throat Straight Connector 3 in

Product Description

Arlington LT300 is a Form B insulated throat straight connector for use with liquidtight metallic and non-metallic (Type B) conduit. It is constructed of die-cast zinc and provides a tapered threaded hub with a nitrile O-ring and steel locknut, 13/16 in L thread, and a 3 in trade size. The connector secures and protects conduit connections to enclosures and is rated -25 to 95 °C with UL and CSA approvals.

• Form B insulated throat straight connector, trade size 3 in, for Type B liquidtight conduit
• Die-cast zinc construction with tapered threaded hub, nitrile O-ring, steel locknut and 13/16 in L thread
• Temperature range -25 to 95 °C; meets BAA compliance, CSA File No LR49636 and UL File No E60812

Product Highlights

3 in trade size straight liquidtight connector with insulated throat and die-cast zinc construction

Product Information

Standard Information

• Brand: ARLINGTON
• Manufacturer Part Number: LT300
• Country of Origin: United States

Technical Specifications

• Brand: Arlington
• MPN: LT300
• Product Type: Liquid-tight straight connector
• Type: Form B insulated throat straight
• Material: Die cast zinc
• Trade Size: 3 in
• Suitable For: Liquidtight metallic and non-metallic conduit (Type B)
• Insulated Throat: Yes (Form B)
• Dimensions: 4.946 in L x 4.946 in W x 3.013 in H
• Knockout Size: 3 in
• Thread Length: 13/16 in L thread
• Tapered Hub Features: Tapered threaded hub with nitrile O-ring and steel locknut
• Temperature Range: -25 to 95 °C
• Standards/Approvals: BAA Compliant; CSA File No LR49636; UL File No E60812
• Connector Type: Straight liquidtight connector
• Weight: 3.218 lb
• Country of Origin: United States
• UPC: 018997323002
