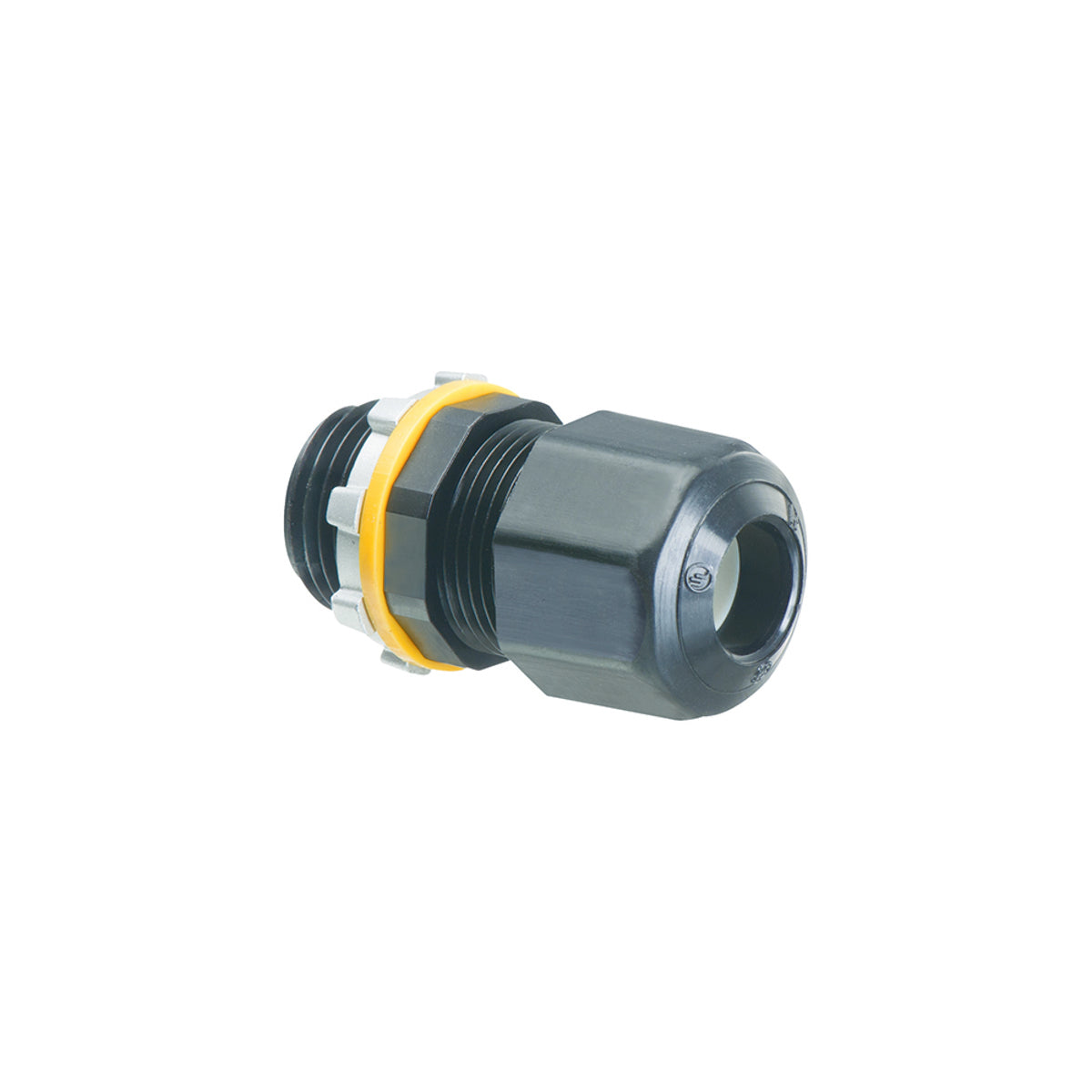

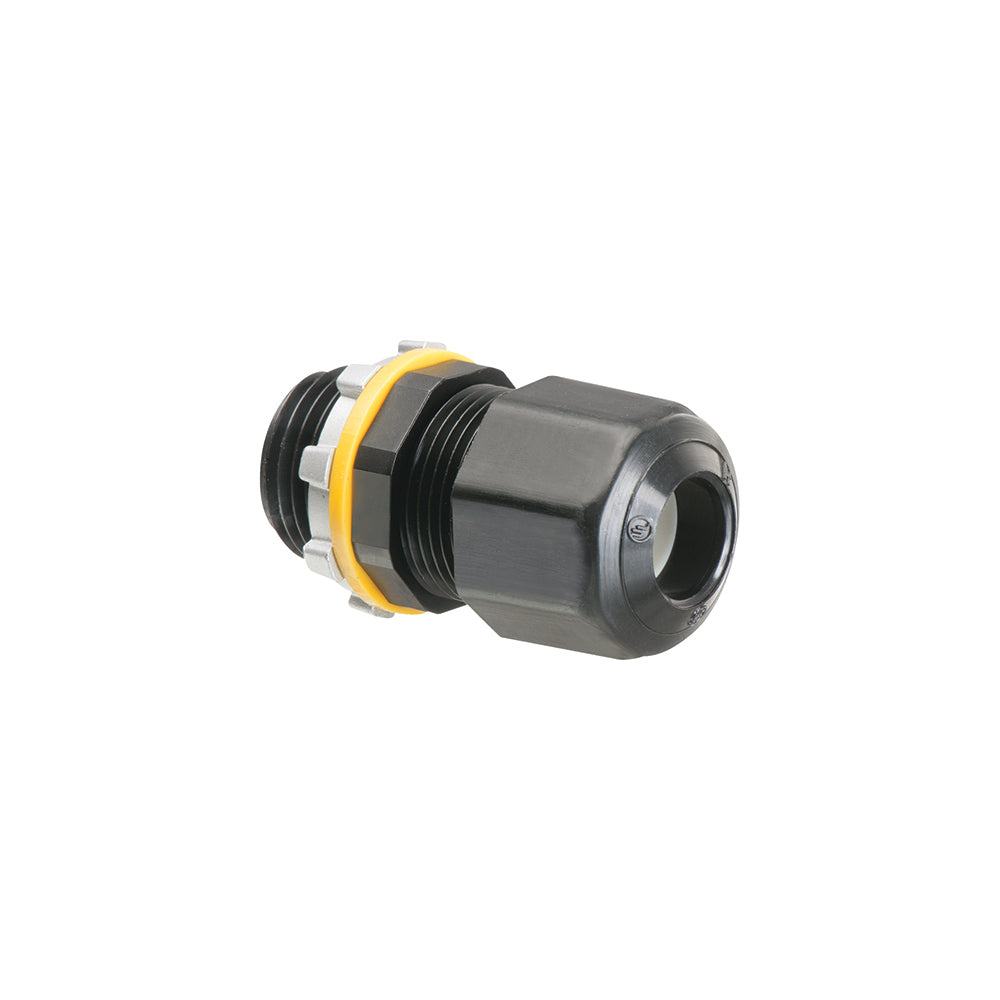

Arlington LPCG50BL Low Profile Oiltight Strain Relief Cord Connector 1/2 in (0.2 to 0.472 in)

Product Description

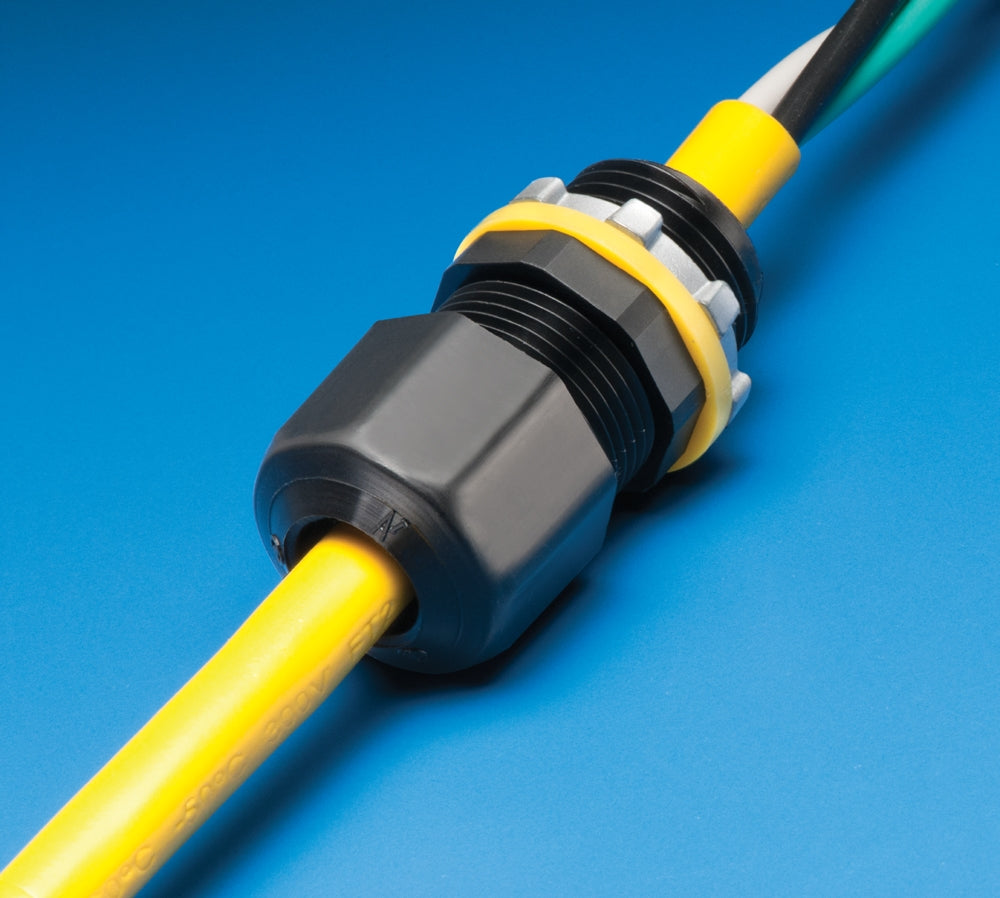

The Arlington LPCG50BL is a low-profile, oiltight strain relief cord connector designed to support a cord range of two hundred to four hundred seventy-two thousandths of an inch with a half-inch trade size. Constructed from nylon, polyethylene, and Santoprene, this connector provides a liquid-tight seal that enhances pullout resistance. It features a unique grommet with gripping fingers that allows for easy installation and a secure fit. The included sealing ring ensures a tight seal when used in non-threaded openings.

• Supports a cord range of 0.200 to 0.472 inches
• Made from durable materials: Nylon, Polyethylene, and Santoprene
• UL Listed and CSA Certified for safety

Product Highlights

This connector is suitable for various applications in electrical installations, especially where a secure, moisture-resistant connection is required.

Product Information

Standard Information

• Brand: Arlington
• Type: Low Profile Oiltight Strain Relief

Technical Specifications

• Color: Black
• Material: Nylon (Body), Santoprene (Grommet), Polyethylene (Sealing Ring), Zinc (Locknut)
• Dimensions: 0.978 inches (Length) x 0.978 inches (Width) x 1.792 inches (Height)
• Trade Size: 1/2 inch
• Cable Openings: 0.200 to 0.472 inches
• Weight: 0.037 pounds
• Country of Origin: United States
• Standard Approval: UL and CSA
