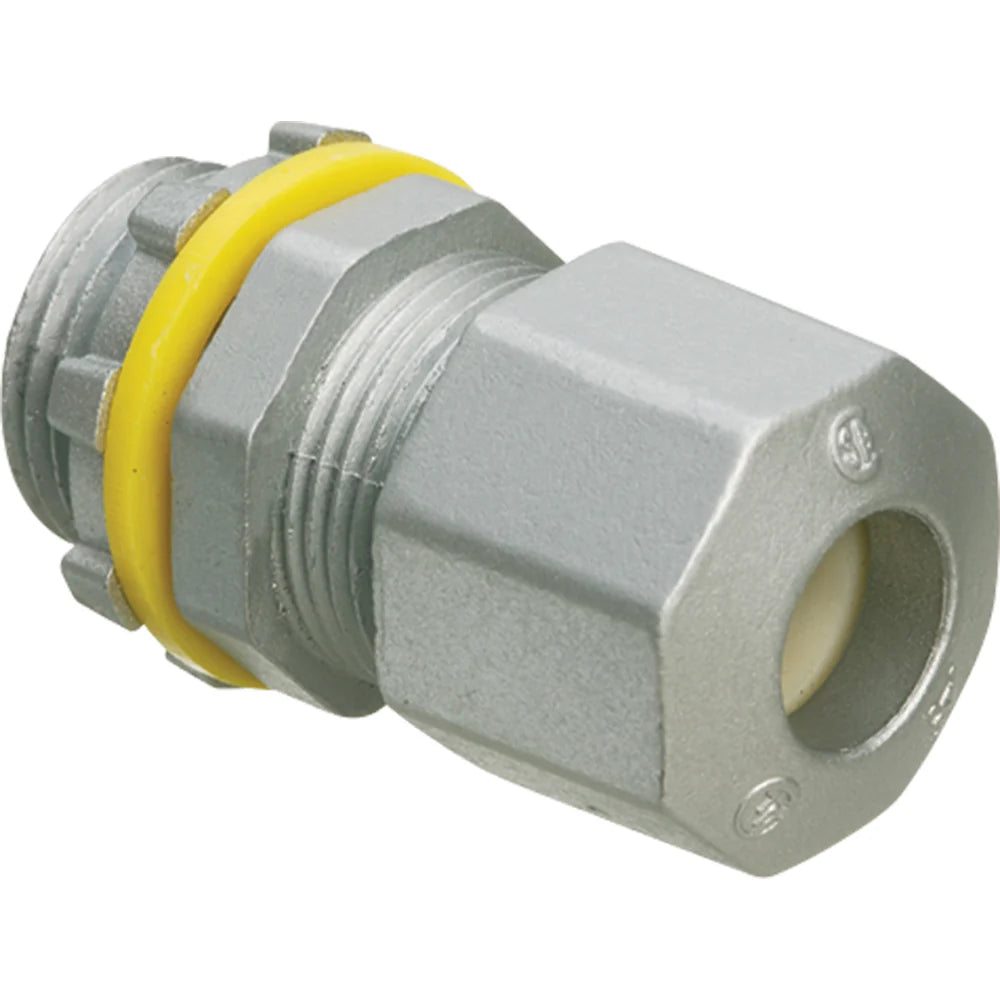

Arlington LPCG507Z Low Profile Liquidtight Oiltight Strain Relief Cord Connector 1/2 in Trade 0.385 to 0.75 in Cable Openings

Product Description

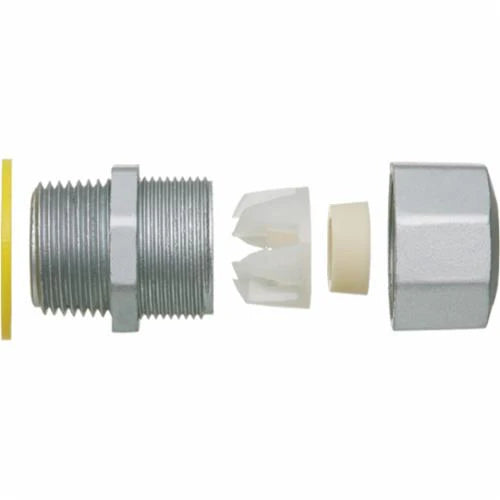

The Arlington LPCG507Z is a low-profile liquidtight and oiltight strain relief cord connector designed for a trade size of one half inch. It supports cable diameters ranging from zero point three eight five inches to zero point seven five inches. This product includes a sealing ring and locknut for secure installation.

• Material: Zinc die-cast
• Thread Length: Zero point five one seven inches
• Made in the USA

Product Highlights

Ideal for protecting electrical connections in outdoor or wet locations, this connector provides a reliable seal and excellent pullout resistance.

Product Information

Standard Information

• Manufacturer: Arlington
• Part Number: LPCG507Z

Technical Specifications

• Hub Size: 1/2 inch
• Conductor Range: 0.385 to 0.75 inches
• Material: Zinc, Santoprene, Nylon, Polyethylene
• Special Features: Oil tight, furnished with sealing ring and locknut
• Country of Origin: United States
• Standards: UL E105706, CSA LR49636
• Dimensions: L(1.230) x W(1.230) x H(2.250)
