Product Description

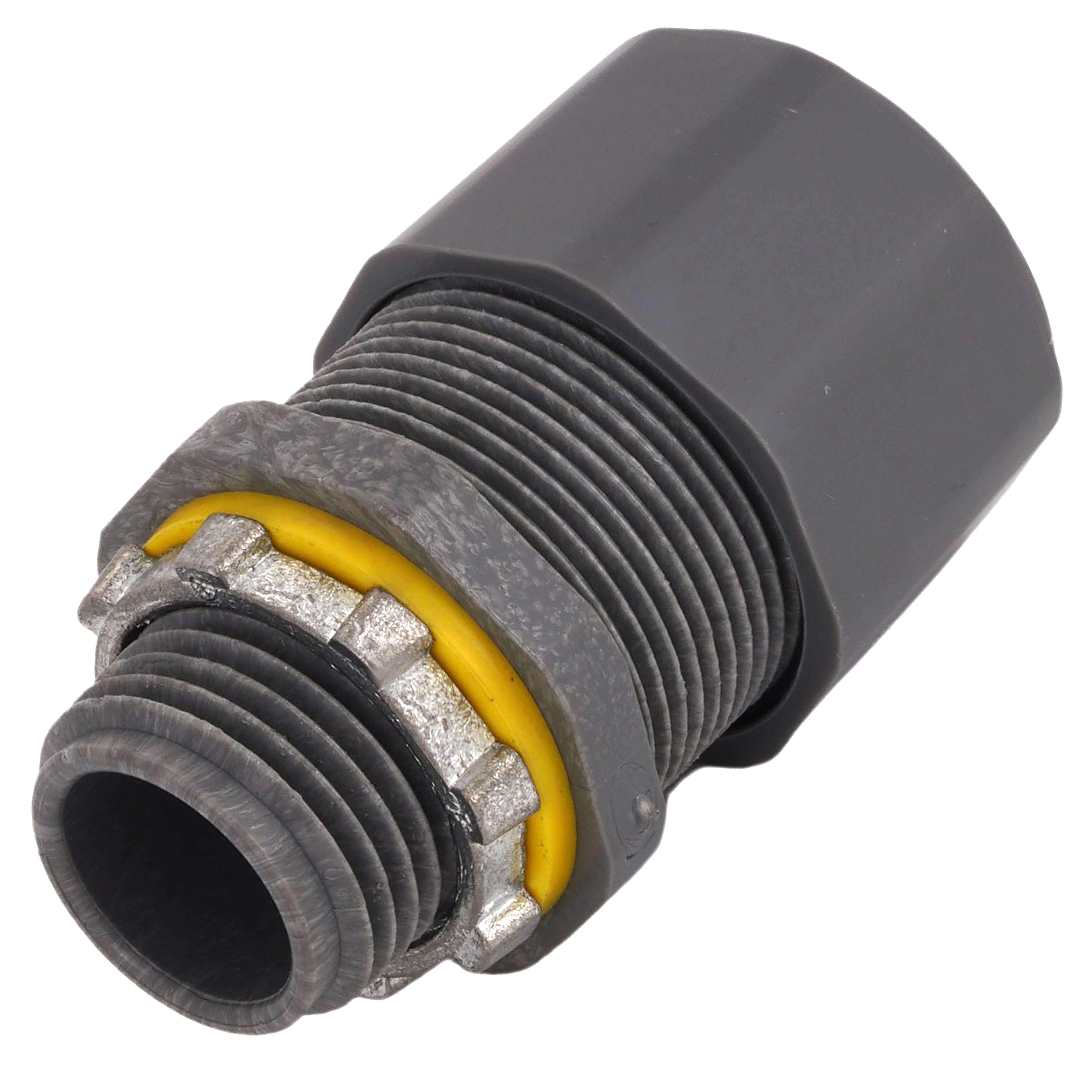

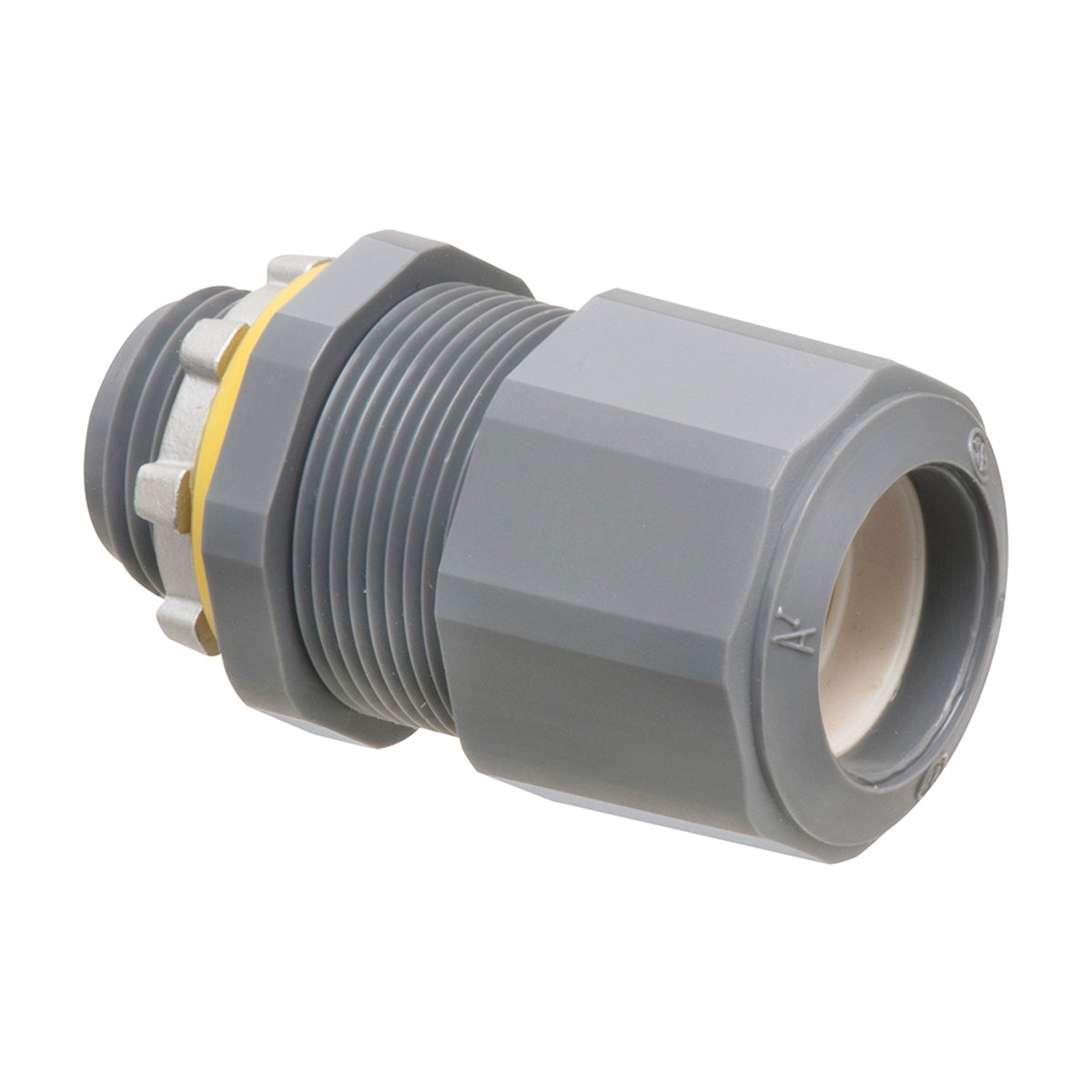

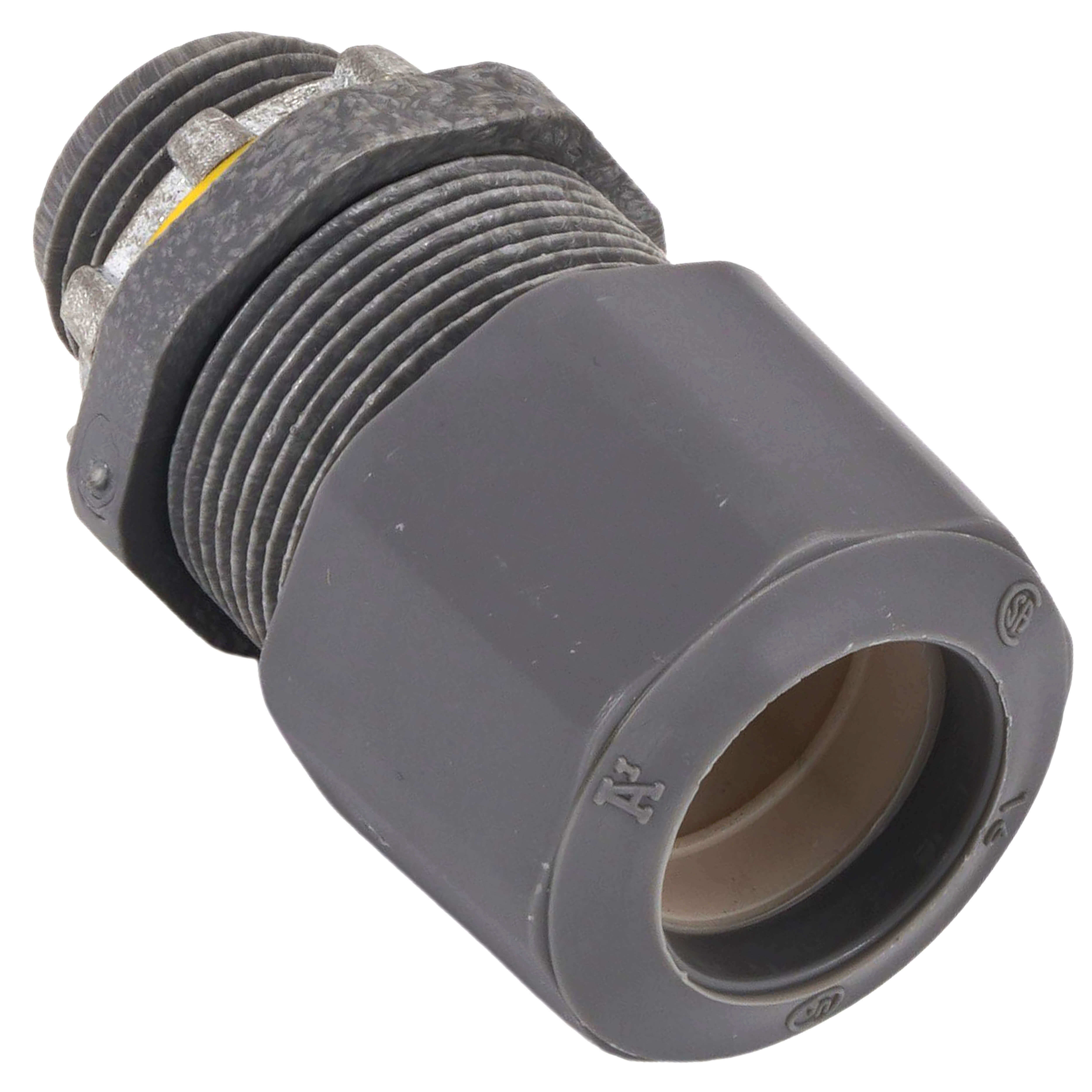

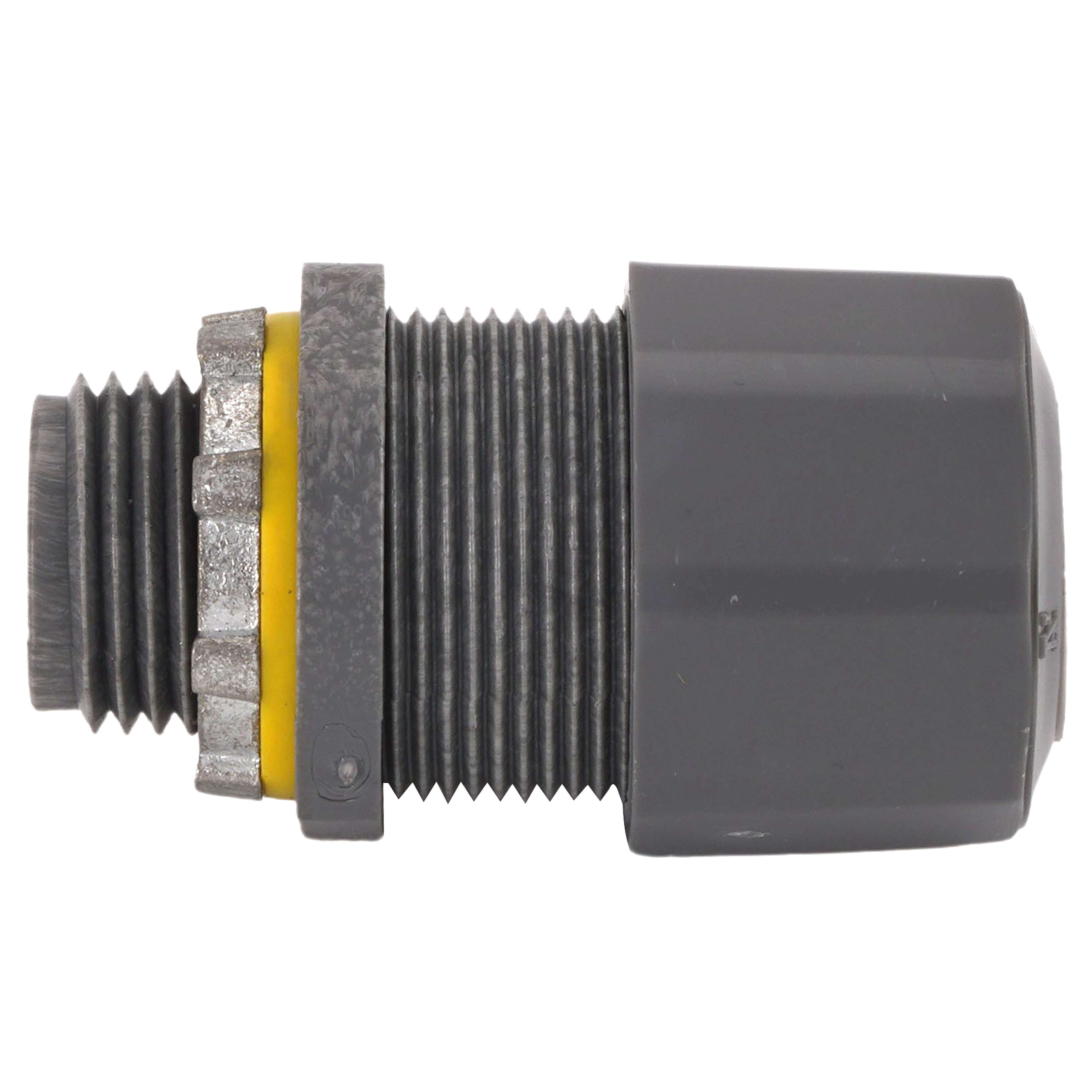

The ARLINGTON LPCG507 cord connector is a low profile, liquidtight, oiltight strain relief designed for 1/2 inch trade size applications. It accommodates cable openings from 0.385 to 0.75 inches and features a straight connection. This connector includes a sealing ring to ensure a liquidtight seal in non-threaded openings.
- Oil-tight, furnished with sealing ring and locknut
- Largest cord range in the industry
- Liquidtight seal and superior pullout resistance
Product Highlights
Arlington LPCG507 ensures a secure, liquidtight connection for various cord and cable applications, reducing the need to stock multiple connector sizes.
Product Information
Standard Information
-
Brand: ARLINGTON
-
Manufacturer Part Number: LPCG507
-
Country of Origin: US
Technical Specifications
-
Type: Low Profile Liquidtight Oiltight Strain Relief
-
Cable Openings: 0.385 to 0.75 in
-
Connection Type: Straight
-
Manufacturer: ARLINGTON
-
Trade Size: 1/2 in
-
Material: Nylon/Polyethylene/Santoprene™/Zinc
-
Thread Length: 0.517 Inch
-
Standards: UL E105706 Listed, CSA LR49636 Certified
-
Approval: UL, CSA
-
Application: Liquidtight, Oiltight, Strain Relief
-

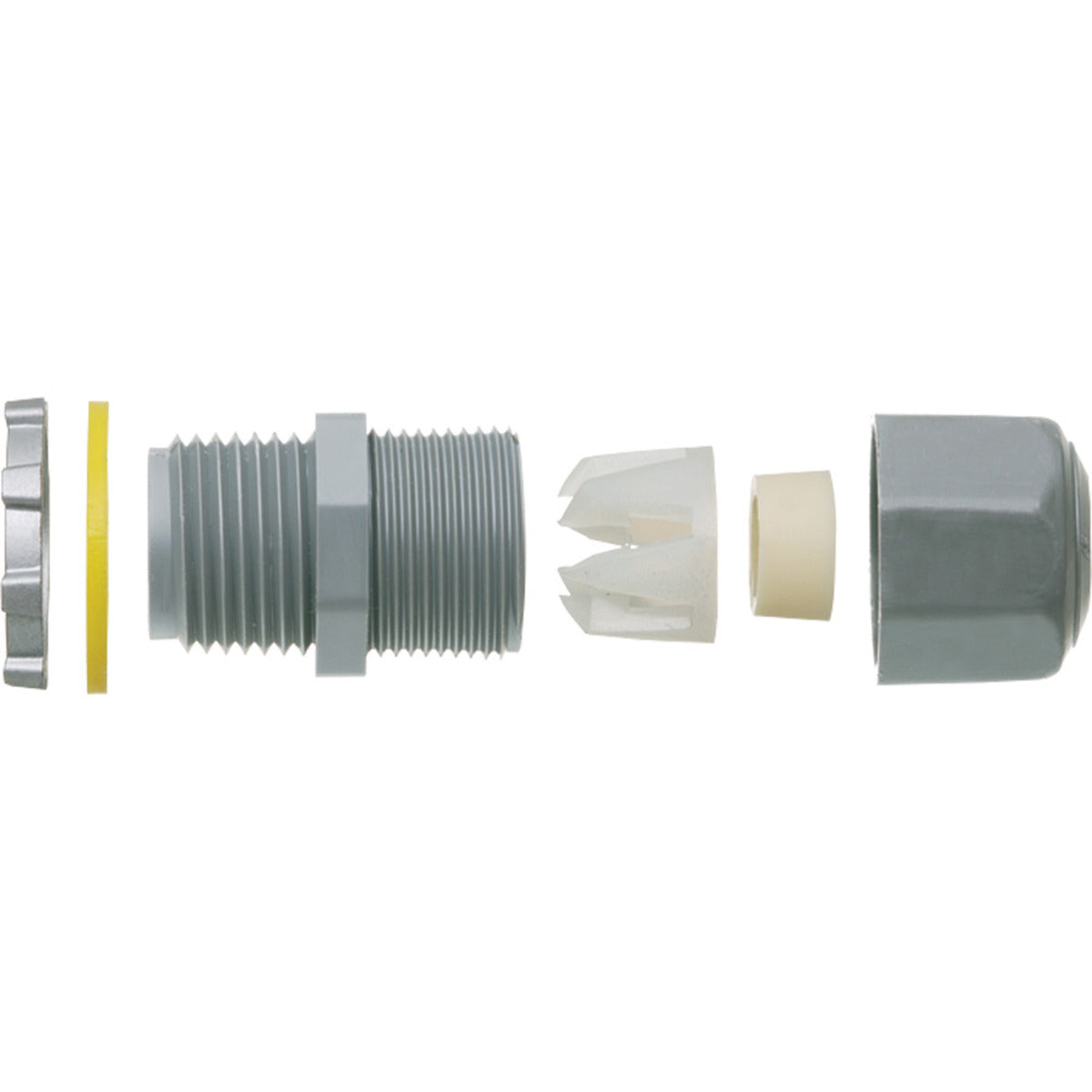

Includes: Sealing Ring, Locknut, UF Grommet and Cord Grommet
-
Brand Name: Arlington
-
Grommet Material: Santoprene®
-
Sealing Ring Material: Polyethylene
-
Locknut Material: Zinc
-
Angle: Straight
-
Connector Type: Threaded
-
Special Features: Oil Tight, Furnished With Sealing Ring And Locknut
-
Hub Size: 1/2 Inch
-
Conductor Size: 0.385 - 0.75 Inch
-
Connection Rating: Liquidtight
-
Connector Material: Nylon
-
Mounting: Threaded
-
Country of Origin: US
