Arlington LPCG503 Low Profile Liquidtight Oiltight Strain Relief Cord Connector 1/2 in Trade 0.1 to 0.3 in

Product Description

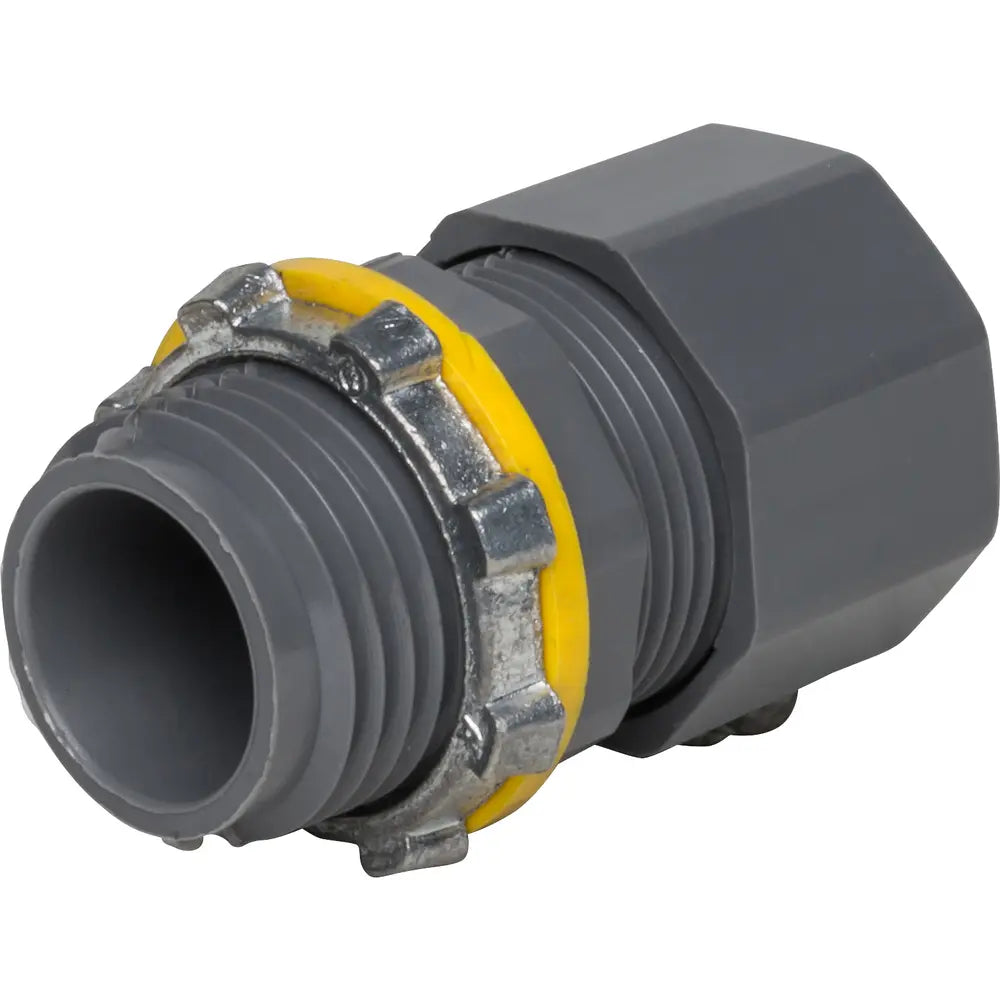

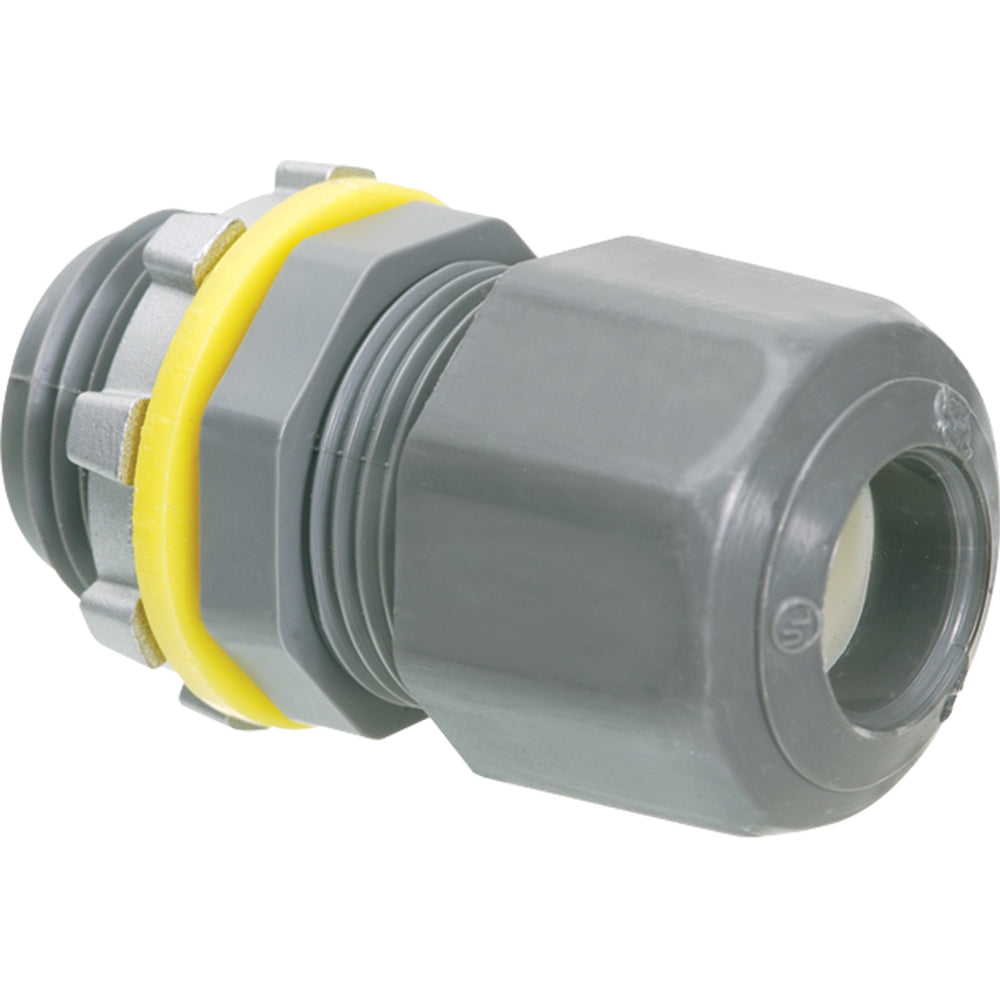

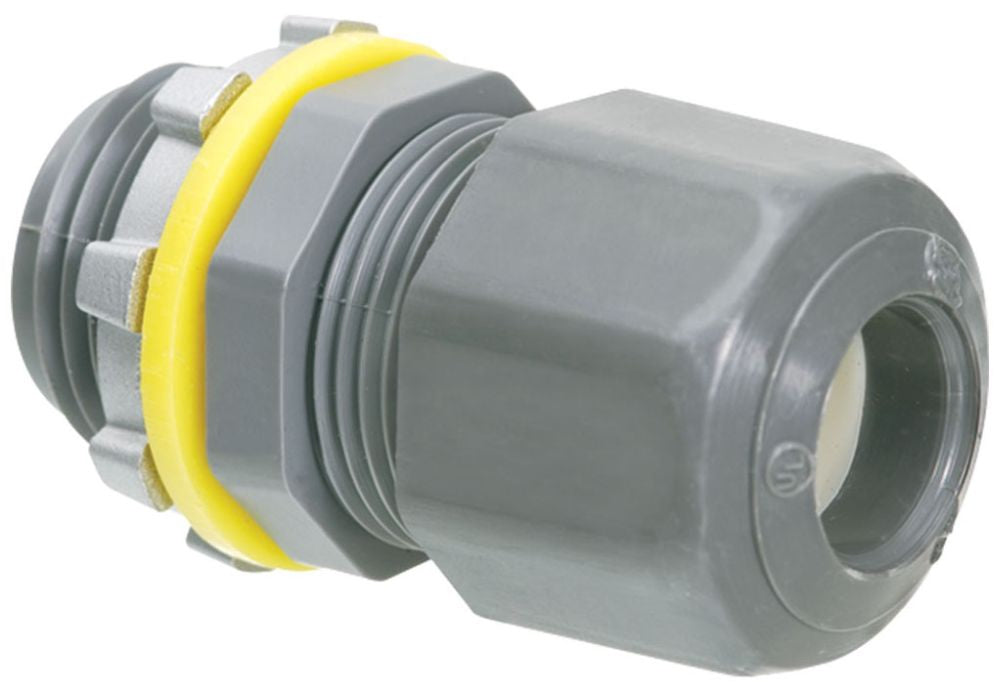

Arlington LPCG503 is a low-profile, liquid-tight, and oil-tight strain relief cord connector. It accommodates cables from 0.1 to 0.3 inches in diameter and has a trade size of one half inch. This connector is made from nylon and includes a Santoprene grommet, polyethylene sealing ring, and zinc locknut, ensuring a secure fit and reliable operation.

• Oil-tight design with sealing ring and locknut
• Supports a cable range of zero point one to zero point three inches
• Easy installation with superior pullout resistance

Product Highlights

This connector is ideal for various electrical applications that require strain relief and sealing against liquids.

Product Information

Standard Information

• Manufacturer: Arlington
• Type: Low Profile Liquidtight Oiltight Strain Relief

Technical Specifications

• Dimensions: zero point nine seven eight inches length x zero point nine seven eight inches width x one point seven nine two inches height
• Trade Size: one half inch
• Conductor Range: zero point one to zero point three inches
• Material: Nylon/Polyethylene/Santoprene/Zinc
• Standards: UL Listed (E105706), CSA Certified (LR49636)
