Arlington L420 Zinc Die-Cast Single Screw Squeeze Connector For AC, MCI Cable (1/2 Inch Knockout) Replacement MPN

Product Description

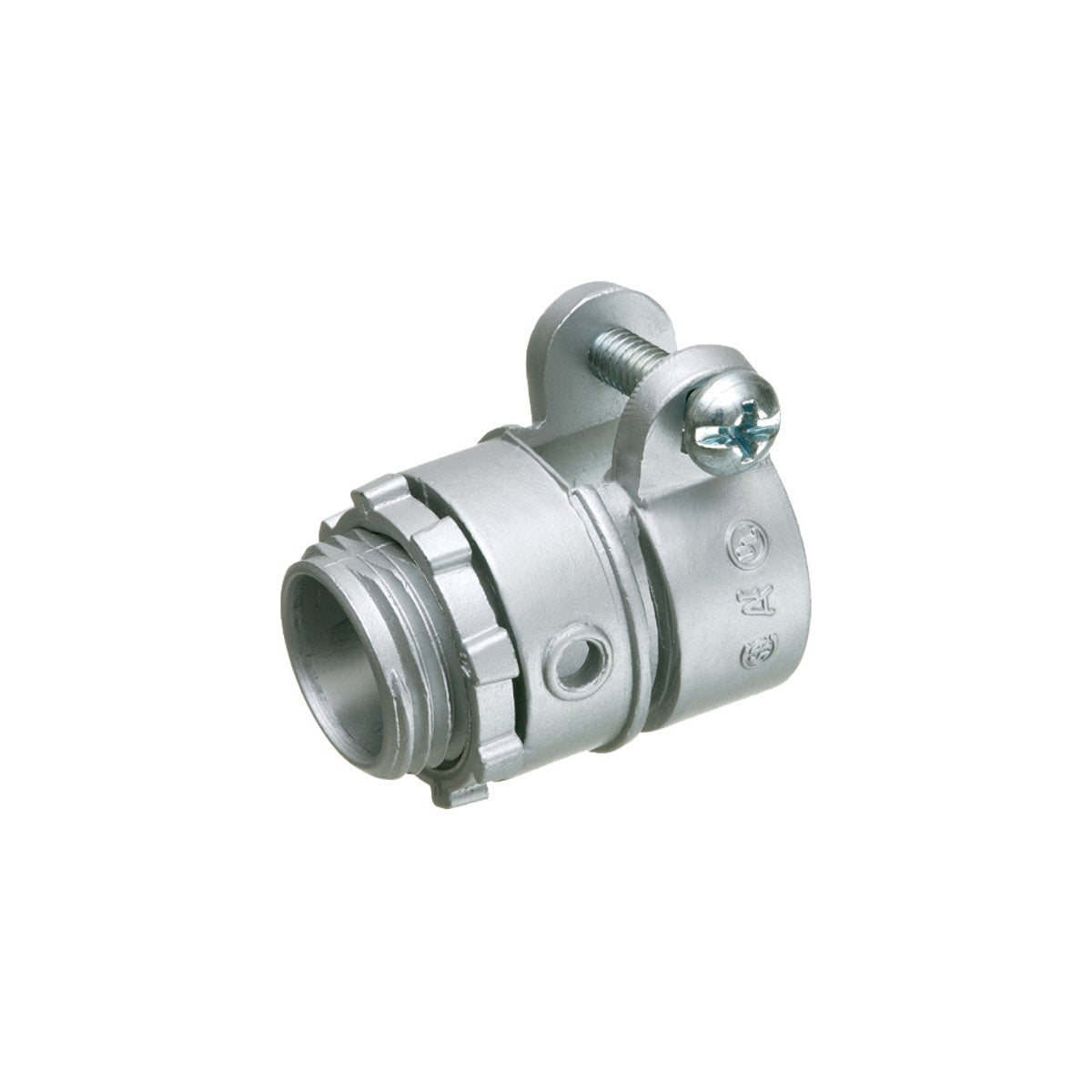

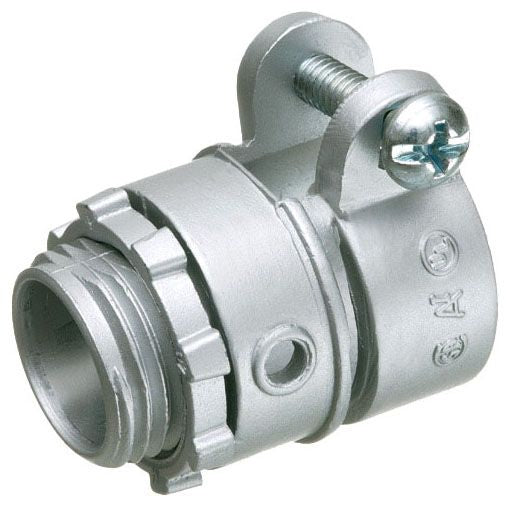

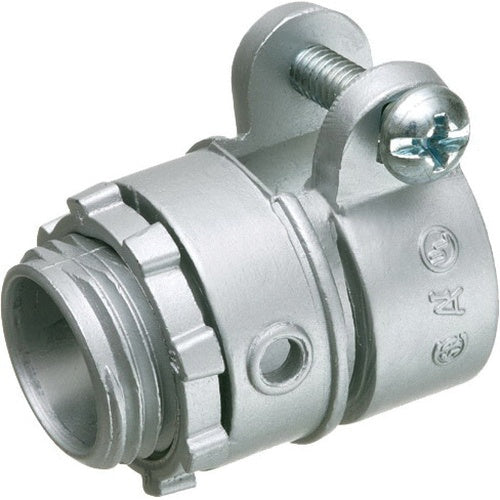

The Arlington L420 is a zinc die-cast single screw squeeze connector designed for connecting AC and MCI cables. The product fits a half-inch knockout and accommodates a cable range of zero point five three to zero point six two inches. The connector ensures a secure and concrete-tight connection when taped.

• Fits half-inch knockout.
• Concrete-tight when taped.
• Meets UL and CSA standards.

Product Highlights

This connector is built for reliability in electrical installations, suitable for both indoor and outdoor applications. It effectively bonds cables and conduits while maintaining safety and compliance with industry standards.

Product Information

Standard Information

• Manufacturer: Arlington Industries
• Material: Zinc Die Cast

Technical Specifications

• Trade Size: 3/8 Inch
• Knockout Size: 1/2 Inch
• End Stop Diameter: 0.400 x 0.580 Inches
• Length: 1.032 Inches
• Thread Length: 0.460 Inches
• Height: 1.155 Inches
• Conductor Range: 0.530 to 0.620 Inches
• Standards: UL and CSA Certified
• Country of Origin: United States
