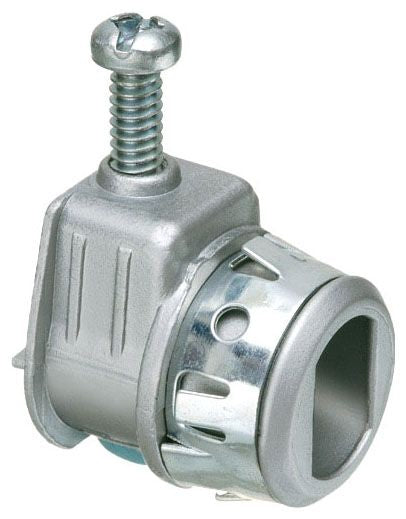

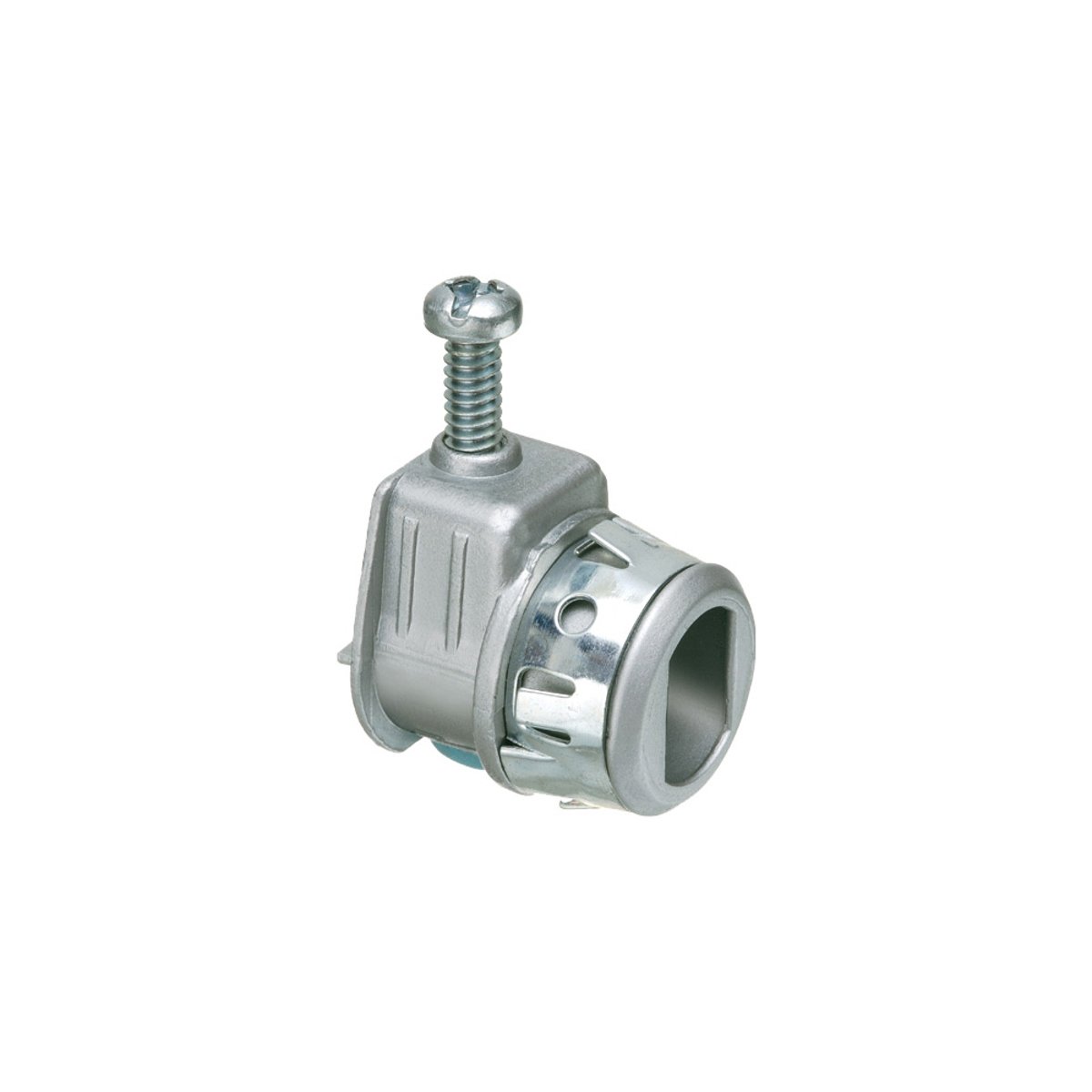

Arlington L19ST SNAP-TITE Cable Connector 1 in

Product Description

The ARLINGTON L19ST SNAP-TITE Cable Connector is a single screw connector with a 1 in trade size and 1 in knockout. It is designed for aluminum, steel, flex, AC, AC90, ACG90, NM, MCI, and Teck90 cables with cable openings from 1.1 to 1.4 inches. Connection is made via saddle and screw.

• Concretetight when taped
• 1.03 in Dia end stop
• Saddle/Screw Connection

Product Highlights

This zinc die-cast connector features a spring steel clip and is suitable for a variety of cable types.

Product Information

Standard Information

• Brand: ARLINGTON
• Manufacturer Part Number: L19ST
• Country of Origin: USA

Technical Specifications

• Material: Die Cast Zinc
• Cable Type: Aluminum/Steel/Flex/AC/AC90/ACG90/NM/MCI/Teck90
• Trade Size: 1 in
• Knockout Size: 1 in
• Cable Openings: 1.1 to 1.4 in
• ConnectionType: Saddle/Screw
• Catalog Number: L19ST
• Manufacturer: Arlington
• Brand: Arlington
• Sub Brand: Snap-Tite
• Country of Origin: United States
• Made in USA: Yes
• Standard: CULUS and CSA
• UPC: 018997086501
• GTIN: 00018997086501
• Type: Single Screw
• Cable Range: 1.100 - 1.400
• End Stop Diameter: 1.030
