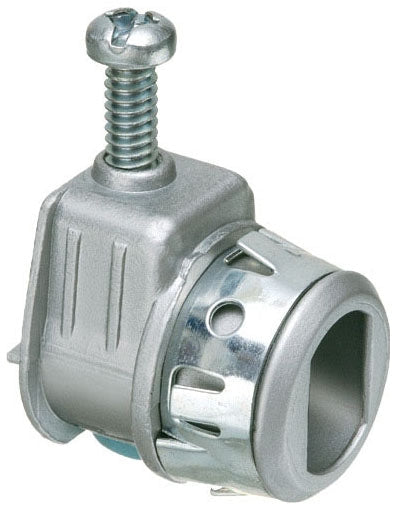

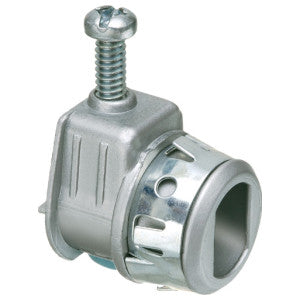

Arlington L16ST 1/2 inches 1 Screw Saddle Type Snap-Tite Connector

Product Description

The Arlington L16ST is a 1/2" 1 Screw Saddle Type Snap-Tite Connector with spring steel clip for NM, Flex, AC, ACG90, AC90 Teck90 MCI steel and aluminum jacketed cables. Cable range .405 to .650 with an end stop diameter of .400 x .580. This connector is for 3/8 inch MC cable and 1/2 inch KO with 0.650 inch maximum opening.

• Single screw zinc die-cast saddle connector
• Includes spring steel clip for secure fit
• Compatible with NM, Flex, AC, ACG90, AC90, Teck90 cables

Product Highlights

The Arlington L16ST connector is a single-screw saddle type with a spring steel clip and listed for flexible cord. It is made of zinc die cast.

Product Information

Standard Information

• Brand: ARLINGTON
• Manufacturer Part Number: L16ST
• Country of Origin: US - United States

Technical Specifications

• Brand: Arlington
• Part Number: L16ST
• UPC: 01899780064
• Type: Straight
• Trade Size: 1/2 Inch
• Knockout Size: 1/2 Inch
• Cable Opening: Single
• Cable/Conduit Type: Armored Cable, Flexible Metal Conduit, Metal Clad Cable, Aluminum Jacketed Cable, Non-Metallic Cable
• Cord Size: 0.25 to 0.66 Inch
• Length: 1.05 Inch
• Installation: (1) Screw, Saddle
• Throat Type: Non-Insulated
• Material: Die-Cast Zinc
• Brand Name: Arlington Industries
• Product Type: Connector
• Height: 1.22"
• Width: 1.22"
• Use With: Armored Cable
• Applications: Flexible/MCI-A Cable
• Size: 3/8 in
• Standard: CSA C22.2 No. 85,UL E23018,cULus
• Sub Brand: Snap-Tite
• Product UPC: 01899780064
