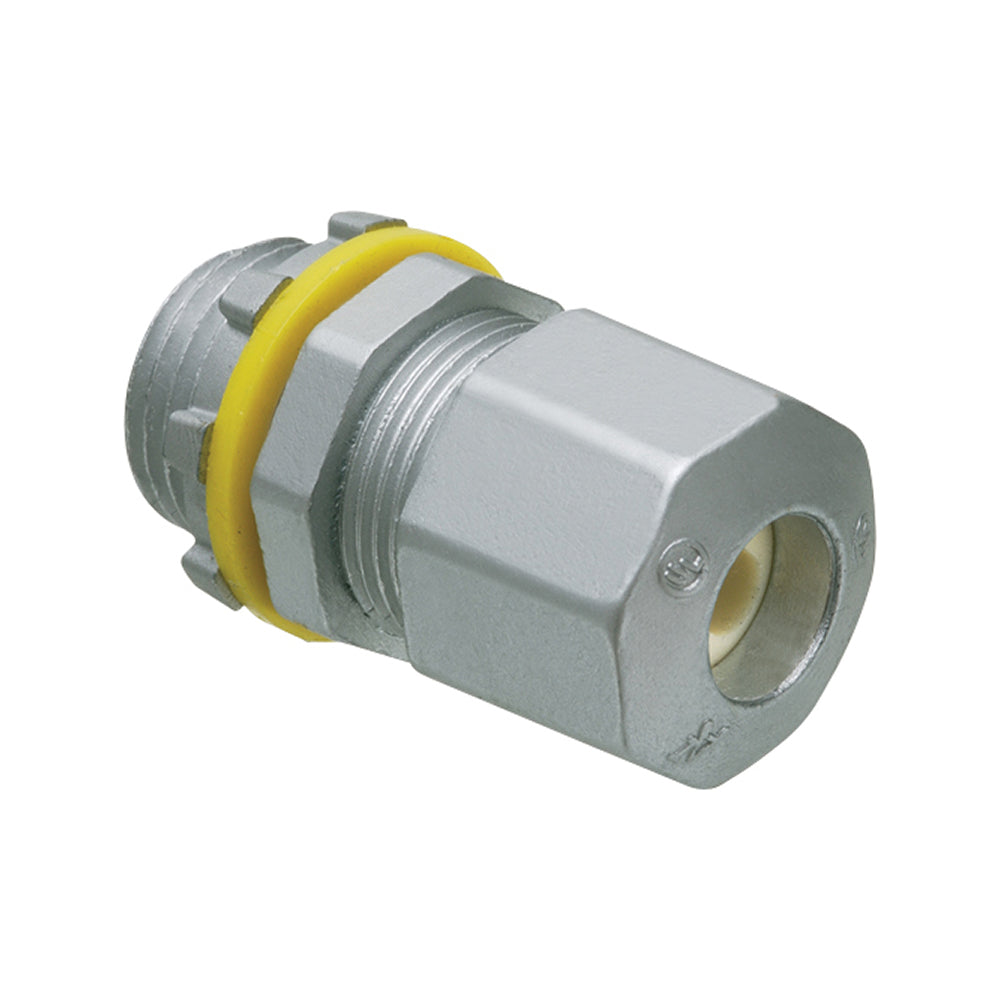

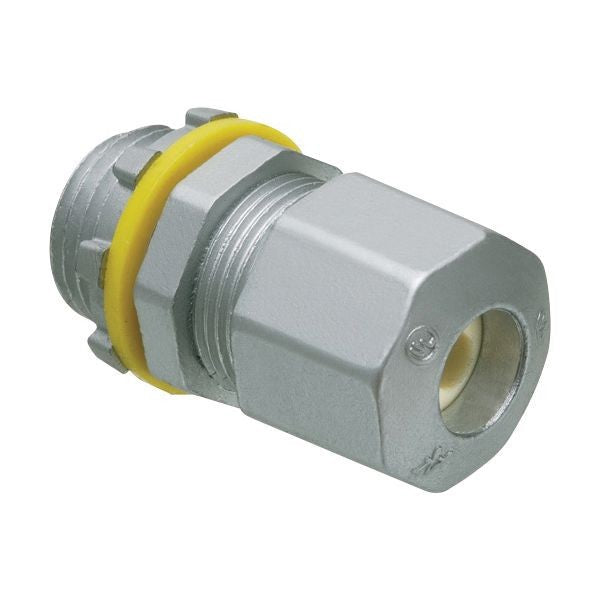

Arlington Industries UF75 UF Connector 3/4 inch

Product Description

The ARLINGTON INDUSTRIES UF75 is a zinc die-cast, 3/4" UF connector with a low profile design suitable for smaller and standard-sized underground feeder cables. It is designed to fit new smaller UF cables as well as standard sizes. This connector is ideal for underground feeder cable applications.

• Compression type for underground feeder cable.
• Low profile design to fit the new smaller UF cables as well as standard sizes.
• cUL/UL Listed, CSA US.

Product Highlights

The UF75 connector ensures a secure connection for underground feeder cables with its compression type design and compact form factor.

Product Information

Standard Information

• Brand: ARLINGTON INDUSTRIES
• Manufacturer Part Number: UF75
• Country of Origin: United States

Technical Specifications

• Type: COUPLER
• UNSPSC Code: 39121311
• Certificate: cUL/UL Listed, CSA US
• Diameter: 1.28-in
• UPC: 018997513021
• Trade Size: 3/4 in
• Knockout Size: 3/4 in
• Cable Range: 14/3 - 10/2
• Material: Die-Cast Zinc
• Catalog ID: ARTUF75
• Conductor Size: 14/3 to 10/2 AWG
• Application: 14/3 To 10/2 AWG Underground Feeder Cable
• Standard & Approvals: CSA Certified, UL Listed
• Brand: Arlington
• MPN: UF75
• Country of Origin: United States
• Accessory Type: Cable Connector
• Compression: Compression
• Length: 1.792 Inch
• Cable Size: (3) 14 AWG, (3) 12 AWG
• Thread Length: 0.630 Inch
• Approval: UL, CSA
• ARRA Compliant: C
• Buy American Compliant: C
• Catalog Number: UF75
• Connection: Zinc
• EU RoHS Indicator: C
• Height: 2.20 in
• Standard: UL
• Standards: ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedCSA CertifiedECCN EAR99
• UNSPSC: 39121409
• UPC 11: 01899751302
• UPC 12: 01899751302
• Width: 1.28 in
