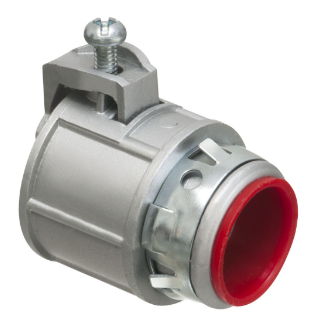

Arlington Industries SG75AST Snap-Tite Connector 3/4 inches

Product Description

The ARLINGTON INDUSTRIES SG75AST is a zinc die-cast, 3/4" knockout saddle-type connector with spring set screw for securing aluminum and steel cable. It snaps into knockout with external spring steel clip and is provided with an insulated throat. Concrete tight when taped and supports .840 to 1.110 cable range with a .820 end stop diameter.

• Connector with spring set screw for securing aluminum and steel cable
• Snaps into knockouts with external spring steel clip
• Concrete tight when taped

Product Highlights

The SG75AST connector is designed for use with aluminum, steel Flex and AC cables. The insulated throat prevents the transmission of heat.

Product Information

Standard Information

• Brand: ARLINGTON INDUSTRIES
• Manufacturer Part Number: SG75AST
• Country of Origin: United States of America

Technical Specifications

• Type: AC, MC and Flex Conduit Connector
• UNSPSC Code: 39121311
• Cable Openings: 0.84 to 1.11 in
• Cable Type: AC/AC90/MCI
• Color: Silver
• Connection Type: Saddle/Screw/Snap-In/Straight
• Knockout Size: 3/4 in
• Material: Die Cast Zinc
• Trade Size: 3/4 in
• Manufacturer: ARLINGTON INDUSTRIES
• Pack Size: 1
• Installation: Snap-In KO, Saddle 1-Screw
• Throat: Insulated
• Angle: Straight
• OD Min: 0.84 in.
• OD Max: 1.11 in.
• Weight: 0.108 lbs/each
• Material(s): Zinc
• Cable Range: 0.840 - 1.110
• End Stop Diameter: 0.820
• Knockout Size(s): 3/4"
