Arlington Industries SG75 Saddle Grip Connector 3/4 inches Knockout replacement mpn

Product Description

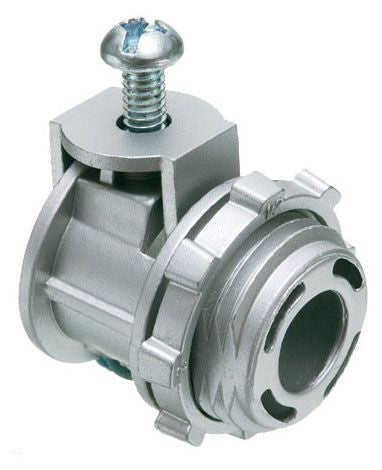

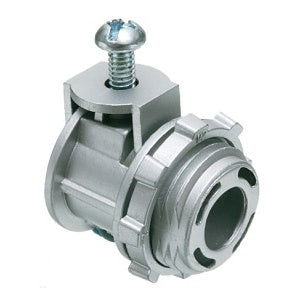

The ARLINGTON INDUSTRIES SG75 is a zinc die-cast, 3/4" knockout saddle-type connector with spring set screw for securing aluminum and steel cable. It secures into a knockout and is concrete tight when taped. It supports a .840 to 1.110 cable range with a .820 end stop diameter.

• For aluminum and steel flex, AC, AC90, MCI, MCI-A cable, HCF steel and aluminum cable.
• Concrete tight when taped.
• cUL/UL Listed, CSA US.

Product Highlights

This 3/4" saddle grip connector is made of zinc die-cast and features a spring set screw for secure cable fastening.

Product Information

Standard Information

• Brand: ARLINGTON INDUSTRIES
• Manufacturer Part Number: SG75
• Country of Origin: USA

Technical Specifications

• UNSPSC Code: 39121400
• Applications: Aluminum And Steel Flex AC MC Cable
• Material: Zinc
• Size: 3/4 in
• TC Connection: Threaded X Screw
• Trade Size: 3/4 Inch
• Type: Connector
• Brand: Arlington Industries, Inc.
• Sub Brand: Saddlegrip
• 12-Digit UPC: 018997180759
• Product UPC: 01899718075
• Height: 1.435 Inch
• Knockout Size: 3/4 in
• Width: 1.470 in
• Cable Range: .840 - 1.110.
• End Stop: .820.
• MPN: SG75
• UPC: 018997180759
• Country of Origin: China
• ADI Part Number: 9N-SG75
• Brand Name: Arlington Industries
• Product Name: Saddle Grip
• Product Type: Connector
• Straight: Straight
• Cable Opening: Single
• Cable/Conduit Type: Armored/Metal Clad Cable, Flexible Metal Conduit
• Cord Size: 0.84 to 1.11 Inch
• Length: 1.435 Inch
• Installation: (1) Screw, Saddle
• Die-Cast Zinc: Die-Cast Zinc
