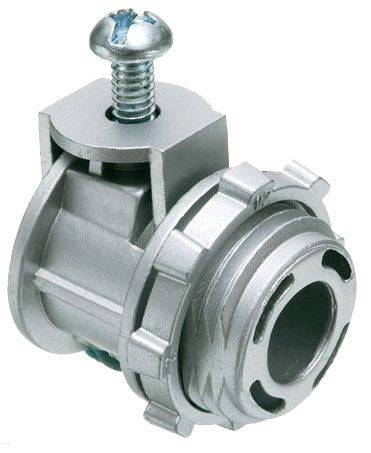

Arlington Industries SG50 Zinc Die-Cast 1/2 inches Knockout Saddle-Type Connector

Product Description

The ARLINGTON INDUSTRIES SG50 is a zinc die-cast, 1/2" knockout saddle-type connector with spring set screw for securing aluminum and steel cable. It secures into a knockout with a zinc die-cast and is concrete tight when taped. Supports .710 to .910 cable range with a .620 end stop diameter.

• Concrete Tight When Taped
• Single cable opening
• Trade size of 1/2 Inch

Product Highlights

This straight connector is suitable for use with 1/2-Inch knockout, aluminum/steel Flex, AC, AC90, MCI and MCI-A cable.

Product Information

Standard Information

• Brand: ARLINGTON INDUSTRIES
• Manufacturer Part Number: SG50
• Country of Origin: USA

Technical Specifications

• Type: Straight
• UNSPSC Code: 39121311
• Approval: UL (Canada and US), CSA
• Cable Opening: Single
• Cable/Conduit Type: Aluminum/Steel Flexible Metal Conduit, Armored Cable, Metal Clad Cable
• Cord Size: 0.71 to 0.91 Inch
• Installation: Saddle
• Knockout Size: 1/2 in
• Manufacturer Name: Arlington Industries
• Material: Die-Cast Zinc
• PDW ID: ECL171749
• Product UPC: 01899707500
• Throat Type: Non-Insulated
• Brand: ARLINGTON
• Connector Type: Saddle
• Thread Size: 0.5 inch
• Exterior Finish: Zinc
• Thread Type: NPT
• Number of Pieces: 50
• Unit Count: 1.0 Count
• Applications: Aluminum And Steel Flex AC MC Cable, MCI-A
• TC Connection: Threaded X Screw
• Trade Size: 1/2 in
• Packaging: 50 pc
• Sub Brand: Saddlegrip
• 12-Digit UPC: 018997075000
• Height: 1.48 Inch
• Width: 1.277 in
• Country of Origin: USA
• ADI Part Number: 9N-SG50
• Product Name: Saddle Grip
• Product Type: Connector
• Weight: 0.085lb
• Cable Openings: 0.71 to 0.91 in
• Cable Type: Aluminum/Steel/Flex/AC/AC90/MC/MCI/MCI-A
• Catalog ID: ARTSG50
• Dimensions: 1.48 in L x 1.277 in W x 1.277 in H
• Standard & Approvals: CSA File No. LR49636, cULus 372D, UL Listed
