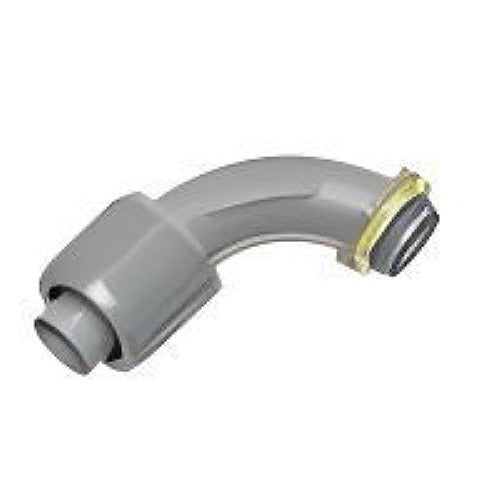

Arlington Industries NMLT9012 Pvc 90 Degree Liquidtight Connector

Product Description

The ARLINGTON INDUSTRIES NMLT9012 is a PVC liquidtight 90-degree connector designed for use in conduit installations where a right-angle transition is required with watertight integrity. This fitting accepts liquidtight flexible nonmetallic conduit and creates a secure, sealed connection at a 90-degree bend. It is sized for 1-1/4 inch conduit trade size. Electricians and electrical contractors install this type of connector in wet or damp locations where conduit must change direction at a box, enclosure, or equipment knockout without compromising the liquidtight seal of the raceway system.

This connector is suited for residential and commercial electrical installations where liquidtight flexible nonmetallic conduit terminates at panels, junction boxes, motor connections, or other enclosures. The 90-degree angle simplifies routing in tight spaces and reduces stress on the conduit where a straight connector would require a sharp bend. It is commonly used in mechanical rooms, outdoor equipment connections, and industrial environments where moisture exposure is a concern.

Key Features

• 90-degree body angle eases conduit routing in confined or restricted spaces
• PVC construction provides corrosion resistance in wet and damp locations
• Liquidtight design maintains moisture seal at the conduit termination point
• 1-1/4 inch trade size fits standard liquidtight flexible nonmetallic conduit
• Sold individually for single-point replacement or repair installs

Compatibility

Designed as an OEM-style fitting for use with 1-1/4 inch liquidtight flexible nonmetallic conduit systems in standard electrical raceway applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit and lock out the panel before making conduit connections at any enclosure or equipment. Ensure the knockout size matches the 1-1/4 inch trade size before installation, and use the appropriate locknut to secure the connector body to the enclosure. Do not overtighten the conduit grip nut, as PVC fittings can crack under excessive force.
