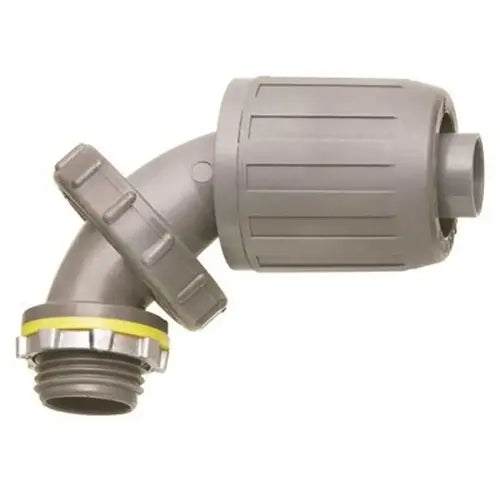

Arlington Industries NMLT590 Snap2IT Non Metallic Liquid Tight Connector 1/2 inches Zero to 90 Degree

Product Description

The ARLINGTON INDUSTRIES NMLT590 is a SNAP2IT non-metallic liquid-tight connector designed for type B conduits. With a 1/2" trade size, it adjusts from 0 to 90 degrees. Installation is made easy with its push-on design. Constructed from UV-rated plastic, it ensures a long outdoor life.

• For use with non-metallic liquid-tight conduit, type B only
• Installs easily with push on installation
• Adjusts for all angles from 0 to 90 degrees

Product Highlights

The NMLT590 connector is ideal for outdoor applications requiring a flexible, liquid-tight connection.

Product Information

Standard Information

• Brand: ARLINGTON INDUSTRIES
• Manufacturer Part Number: NMLT590
• Country of Origin: USA

Technical Specifications

• Type: Non-Metallic
• UNSPSC Code: 39121311
• Angle: 90 deg
• Dimensions: 2.435 in L x 3.165 in W x 3.165 in H
• Material: Plastic
• Mounting Type: Push-In/Threaded
• Suitable For Use With: Type B Liquidtight Non-Metallic Conduit
• Trade Size: 1/2 in
• Manufacturer: ARLINGTON INDUSTRIES
• Applications: Outdoor, Non Metallic Liquid Tight Conduit Type B
• Standard: UL And CSA
• TC Connection: Snap-in x External Threaded
• Packaging: 10 pc
• Brand: Arlington Industries, Inc.
• Sub Brand: Snap2It, Zero to 90
• Product UPC: 01899703900
• Weight: 0.107 lb
• Diameter: 12.7 mm
• Height: 2.435 Inch
• Knockout Size: 1/2 in
• Length: 106.68 mm
• Width: 3.165 in
• Inner Diameter: 0.5 in.
• Warranty: 1 Year
• Certifications: CSA US, UL
• Manufacturer Warranty: 1 Year
• Certifications and Listings: CSA Listed, UL Listed
• Conduit Fitting Type: Connector
• Direct Burial: No
• Wire Connector Type: Standard
• Pack Size: 1
• UNSPSC: 39131700
• Fitting Type: Connector
• Product Depth (in.): 3.594
• Product Width (in.): 3.17
• Adjustable: Yes - Adjusts from 0° to 90°
• Conduit Type: Non-Metallic Liquid Tight Conduit, Type B Only
• Product Style: Push-On
• Listing: UL, CSA
• ADI Part Number: 9N-NMLT590
