Arlington Industries NM95 Cable Connector 3/4 Inch

Product Description

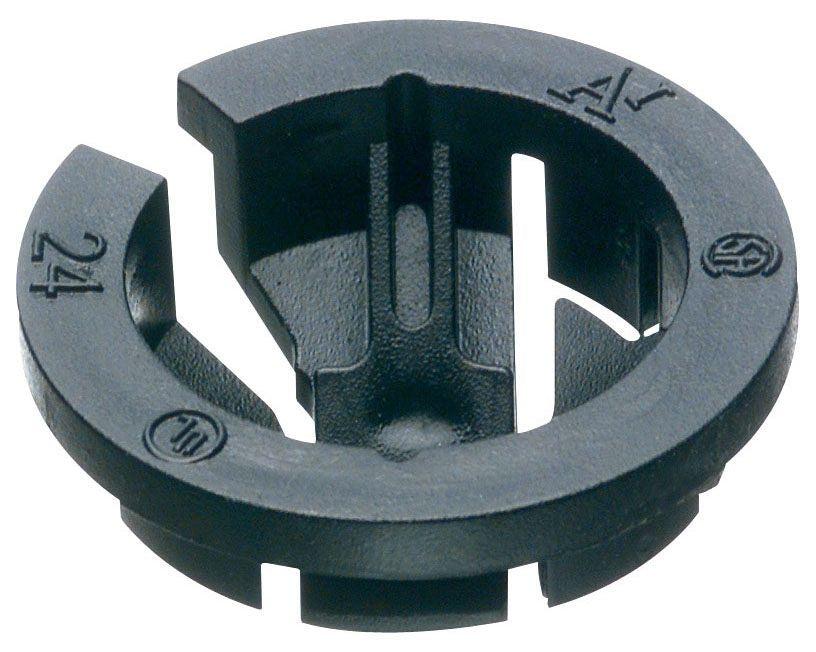

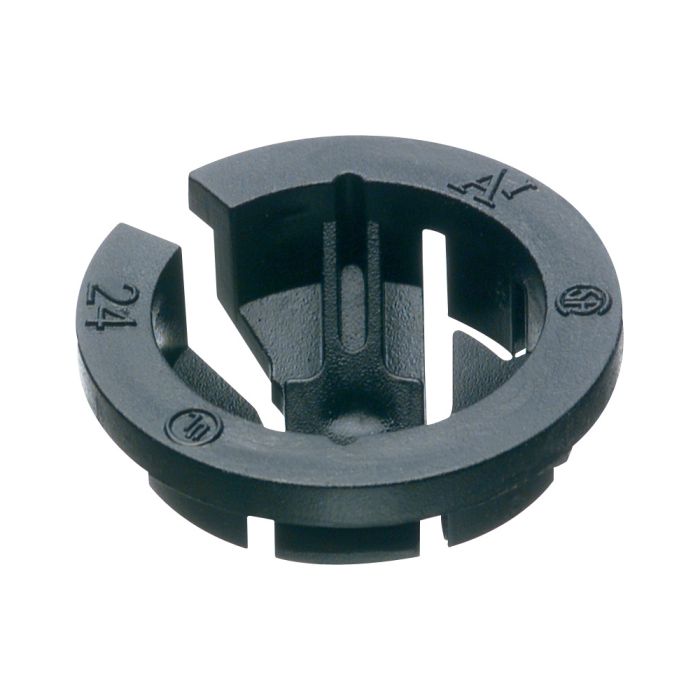

The ARLINGTON INDUSTRIES NM95 is a plastic push-in connector that snaps into a 3/4" knockout with finger pressure. It securely holds wires and is easily removable with a screwdriver. This connector is suitable for non-metallic cables and is UL and CSA approved. It is designed for easy installation and secure cable insertion.

• Installs easily with light finger pressure.
• Holds wires securely, exceeding UL pullout tests.
• Simple to remove with a twist of a screwdriver.

Product Highlights

This 3/4" push-in connector offers easy installation and secure wire connections for various cable configurations.

Product Information

Standard Information

• Brand: ARLINGTON INDUSTRIES
• Manufacturer Part Number: NM95
• Country of Origin: United States

Technical Specifications

• Type: COUPLER
• UNSPSC Code: 39121311
• Approval: UL, CSA
• Cable Size: (1) 6/2 to 14/2 AWG, (1) 6/3 to 14/3 AWG, (1) 12/4 AWG, (2) 10/2 to (2) 14/2 AWG, (2) 10/3 to 14/3 AWG, (1) 14/2 to (1) 12/2 AWG, (1) 14/2 to (1) 10/2 AWG
• Cable Type: Non-Metallic Cable
• Installation: Push-In
• Knockout Size: 3/4 Inch
• Manufacturer Name: Arlington Industries
• Material: Plastic
• Product UPC: 01899710956
• Connection Type: Push-In
• Trade Size: 3/4 in
• Listing: cULus
• Knockout Size(s): 3/4"
• Applications: NM Cable
• Conductor Size: (1) 14/2 - 6/2 AWG, (1) 14/2 AWG, 12/2 AWG, 10/2 AWG, 14/3 AWG, 12/3 AWG, (2) 14/2 - (2) 10/2 AWG, (2) 14/3 AWG - (2) 10/3 AWG
• TC Connection: Push-in
• Brand: Arlington Industries, Inc.
• Sub Brand: Black Button
• 12-Digit UPC: 018997109569
• Diameter: 1.293 Inch
• Height: 1.29 Inch
• Length: 0.597 Inch
• Width: 1.290 in
• Series: Black Button
• Conduit Type: Non-Metallic
• Nominal Size: 3/4 Inch
• Application: For (1) 14/2 - 6/2 AWG NM-B cable or (2) 10/3 - 14/3 AWG NM-B cables
• Standard/Approvals: UL Listed, CSA Certified
• Color: Black
• Dimensions: 1.29 in L x 1.29 in W x 0.579 in H
