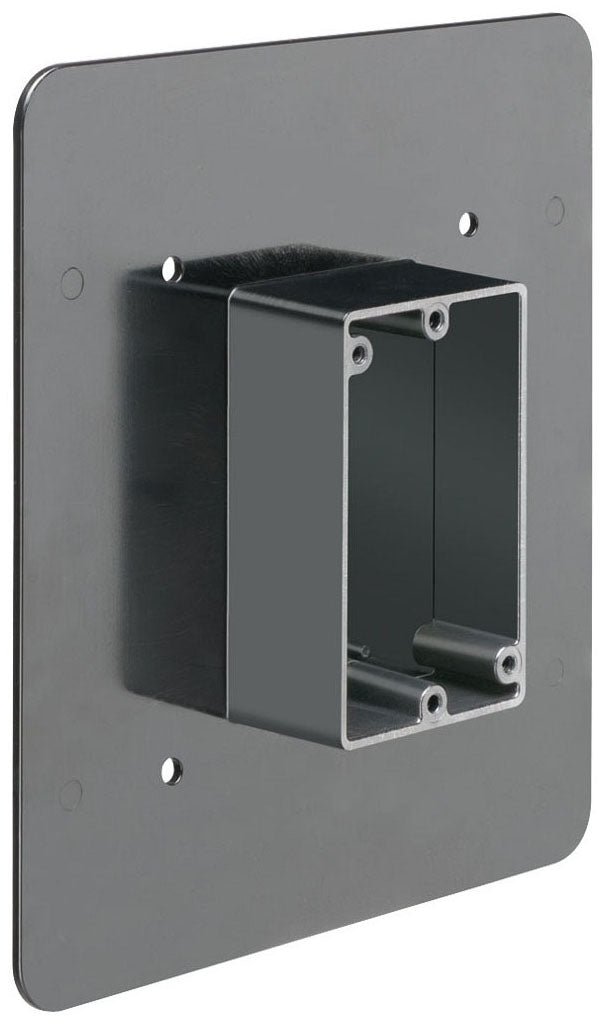

Arlington Industries FR101F Non-Metallic Flange Box for 1/2 inches or 1-1/4 inches Flat or Stucco Surfaces

Product Description

The ARLINGTON INDUSTRIES FR101F is a non-metallic FR series device and fixture box designed for new construction. It features interchangeable backs and extension rings, allowing it to work with various exterior wall finish thicknesses. It ships preassembled and ready for installations with 1-3/8" finish thicknesses and can be altered for 5/8" or 7/8" finish thicknesses.

• Eliminates the need for excessive wiring to reduce tripping hazards
• Features 1 gang for added reliability and flexibility
• Surface Mount can be easily installed with minimal labor required

Product Highlights

The FR101F offers flexibility for different wall finishes and is designed for easy installation in new construction projects.

Product Information

Standard Information

• Brand: ARLINGTON INDUSTRIES
• Manufacturer Part Number: FR101F
• Country of Origin: United States

Technical Specifications

• Brand Name: Arlington Industries
• Manufacturer: Arlington Industries, Inc
• Product Name: Non-Metallic Flange Box for 1/2" or 1-1/4" Flat or Stucco Surfaces
• Product Type: Mounting Box
• Product Series: FR
• ADI Part Number: 9N-FR101F
• Number of Gangs: 1
• Manufacturer Part Number: FR101F
• Color: Black
• Material: Plastic
• Location: INDOOR
• mounting: Wall
• Model / MPN: FR101F
• Capacity: 21.8 to 23.8 cu-in
• Mounting Type: Wall
• Type: Non-Metallic
• Part Number: FR101F
• Application: Device Box
• Load Rating: 10lbs (Fixture)
• Siding Type: Flat or Stucco
• Trade Size: 1-Gang
• Volume: 21.8in3 (1-3/8" Finish), 23.8in3 (1-5/8" Finish)
• Comes With: (1) NM94 Cable Connector, (1) NM900 Snap-In Blank, (1) Box with flange, (1) Back Panel, (1) 1/4" Spacer, (4) #8 x 1/2" Long Sheet Metal Screws
• Material(s): High Strength Polycarbonate
• Country of Origin: US
• Features: Non-Corrosive, Non-Conductive, Wide Flanges
• Depth: 3.525 Inch
• Height: 7-7/8 Inch
• Length: 7-7/8 Inch
• Width: 7.125 in
• UNSPSC Code: 39121300
