Arlington Industries FBS415 Octagonal Fan and Fixture Mounting Box 1-1/2 inches Depth

Product Description

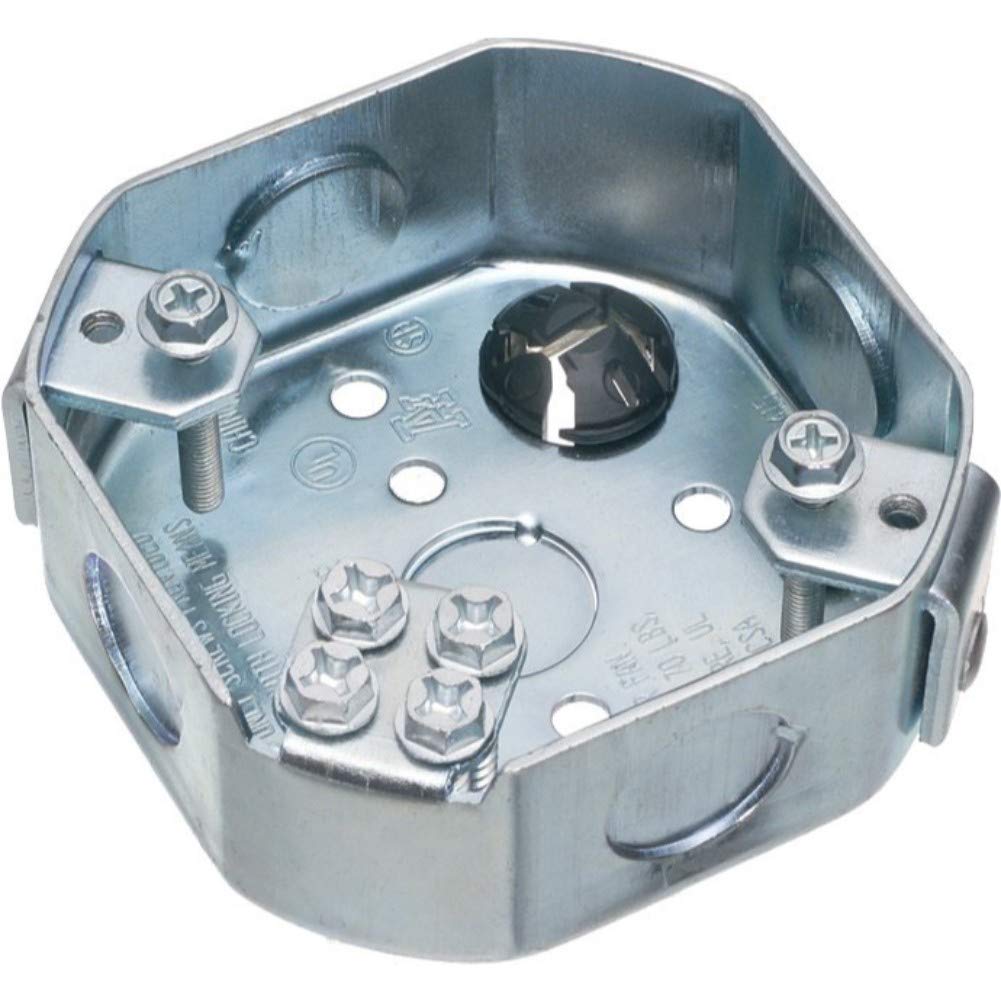

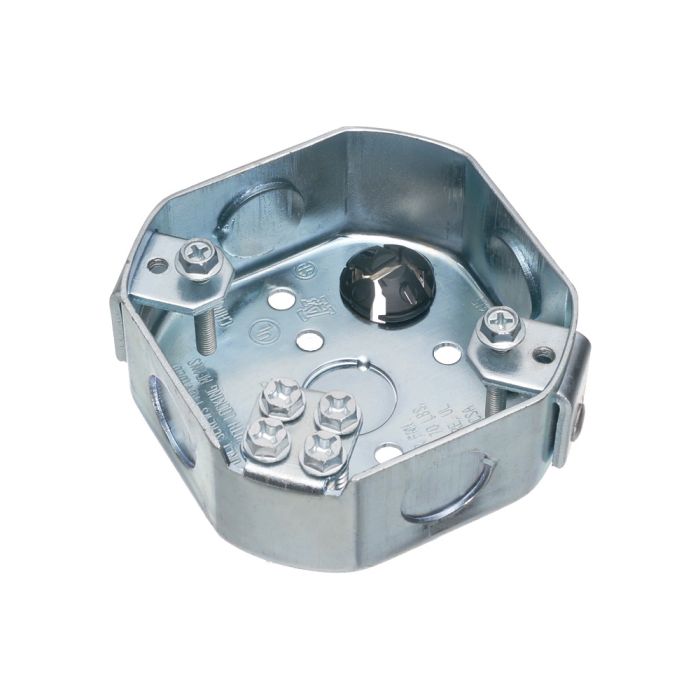

The ARLINGTON INDUSTRIES FBS415 is a steel octagonal fan and fixture mounting box. It is 70lb fan rated and 200lb fixture rated with a 1-1/2" box depth and 14.6 cu. in. capacity. Designed for mounting fan/fixture to a joist with clamps for non-metallic sheathed cable or armored cable.

• 70lb fan rated
• 200lb fixture rated
• 14.6 cu. in. capacity

Product Highlights

The ARLINGTON INDUSTRIES FBS415 is a steel octagonal fan and fixture mounting box with a 1-1/2" box depth.

Product Information

Standard Information

• Brand: ARLINGTON INDUSTRIES
• Manufacturer Part Number: FBS415
• Country of Origin: China

Technical Specifications

• Brand Name: Arlington Industries
• Depth: 1.5"
• Width: 4.2"
• Height: 3.5"
• Color: Silver
• Manufacturer: ARLINGTON INDUSTRIES
• Product Name: Steel Octagonal Fan & Fixture Joist Mounting Box
• Product Type: Mounting Box
• ADI Part Number: 9N-FBS415
• Device Supported: Fan,Fixtures
• Package Contents: Steel Octagonal Fan & Fixture Joist Mounting Box\n1 x NM Cable Connector\n1 x Mud Cover\n1 x Box\n4 x #12-14 x 1-1/4" Long Screws\n2 x #10-32 x 7/8" Long Screws
• Maximum Load Capacity: 200 lb
• Manufacturer Part Number: FBS415
• Components: COUPLERS / JUNCTIONS
• UNSPSC Code: 39131713
• Cable Entry Size: Knockout
• Capacity: 14.6 cu-in
• Diameter: 4 in
• Material: Steel
• Mounting Type: Threaded
• Number of Knockouts: 5
• Shape: Octagon
• Applications: Fan and Fixture
• Cable Entry: (4) 1/2 in Sides, (1) 1/2 in Bottom
• Size: 14.6 cu in
• Type: Octagonal
• 12-Digit UPC: 018997752048
