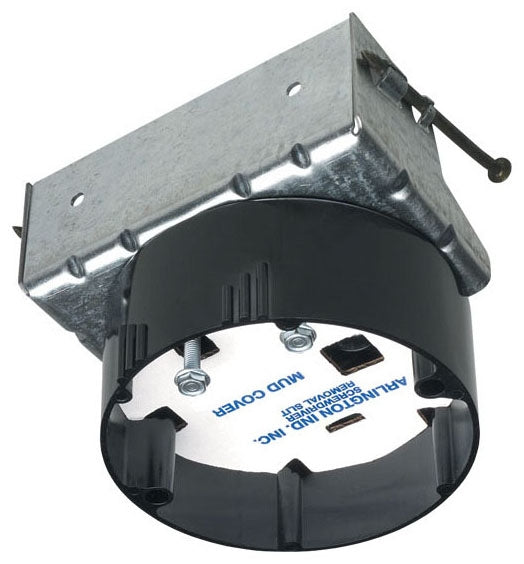

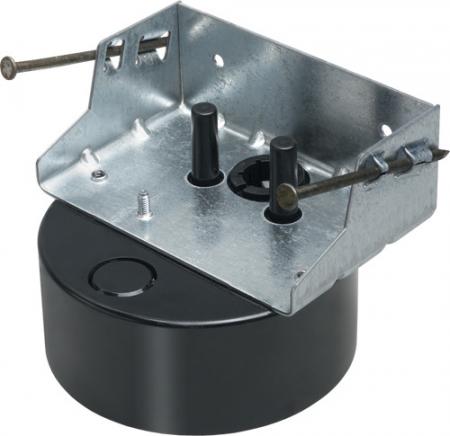

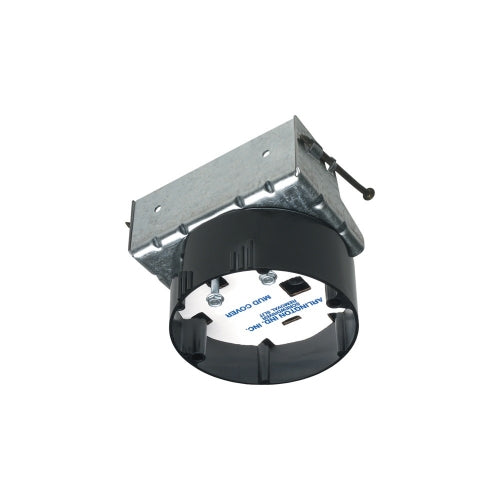

Arlington Industries FB417S Nail on Fan and Fixture box with steel bracket 20 cu.

Product Description

The ARLINGTON INDUSTRIES FB417S is a nail-on fan and fixture box with a steel bracket, designed for ceiling thicknesses up to 1-1/2 inches, including drywall on furring strips or hat channels. It has a capacity of 20 cu-in and includes parked fan/fixture installation screws for easy bracket installation. It is suitable for single or double wood joists.

• Features convenient indicator marks for 1/2 Inch, 5/8 Inch and 3/4 Inch ceiling thicknesses
• Works Well on Single or Double Wood Joists
• Fan/Fixture Installation Screws are Parked Ready for Easy Fan/Fixture Bracket Installation

Product Highlights

This fan/fixture box offers easy nail-on installation and a durable steel mounting bracket for secure attachment to ceilings up to 1-1/2" thick.

Product Information

Standard Information

• Brand: ARLINGTON INDUSTRIES
• Manufacturer Part Number: FB417S
• Country of Origin: USA

Technical Specifications

• UNSPSC Code: 39111616
• Mounting: Bracket
• manufacturer_name: Arlington Industries
• Capacity: 20 cu-in
• Shape: Round
• Material: Plastic, Steel
• Diameter: 4 in
• Mounting Type: Bolt-On/Ceiling/Joist
• Part Number: FB417S
• Cubic Inches: 20.0
• Description/ Style: For up to 1-1/2" ceiling thickness (including drywall on furring strips or hat channel) 20.0 Cu. In.
• Comes With: (1) Steel mounting bracket, (1) NM94 Cable Connector, (1) Mud Cover, (1) Box, (2) 16d Nails, (2) #10 x 2-1/2" Long Screws
• Certificate: cUL/UL Listed, CSA US
