Arlington Industries EMT50 Press-On Insulating Bushings 1/2 inches

Product Description

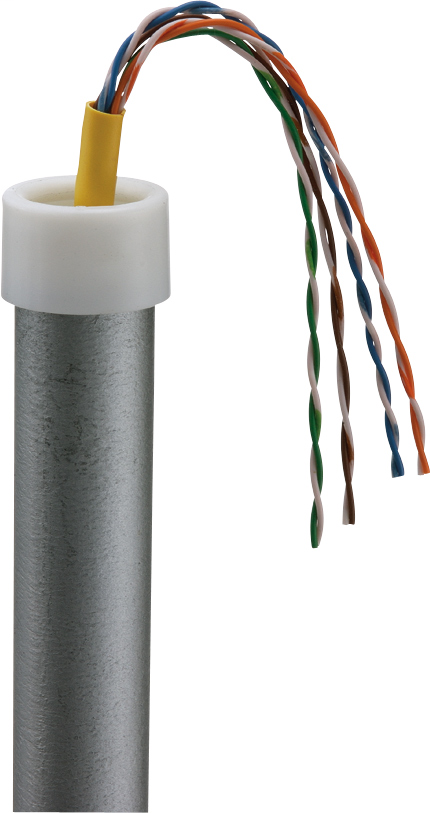

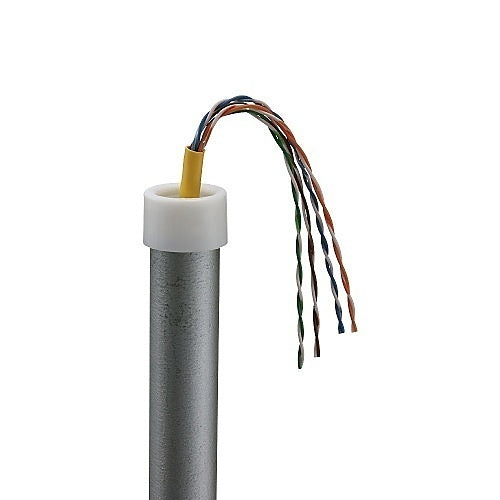

The Arlington Industries EMT50 press-on insulating bushings protect cables from abrasion by the conduit. These bushings can be substituted for costly fittings when used for cable protection only. They are suitable for power, computer data lines, cable TV, audio/video cables, phone/modem, or alarm/security systems.

• They can be substituted for costly fittings when used for cable protection only
• Fast and easy installation
• Uses include power, computer data lines, cable TV, audio/video cables, phone/modem, or alarm/security systems

Product Highlights

EMT Insulating Bushings protect cables from abrasion by EMT. Fast and easy installation.

Product Information

Standard Information

• Brand: ARLINGTON INDUSTRIES
• Manufacturer Part Number: EMT50
• Country of Origin: United States

Technical Specifications

• Size: 1/2"
• Height: 0.53"
• Material: Plastic
• Brand: Arlington
• Manufacturer: Arlington Industries
• Product Name: EMT50 Insulating Bushings - 0.84" Diameter
• Product Type: Cable Tying
• Compatibility: UL (E105706) SA (LR49636)
• Product Model: EMT50
• ADI Part Number: 9N-EMT50
• Packaged Quantity: 100
• Manufacturer Part Number: EMT50
• Location: INDOOR
• UNSPSC Code: 39121311
• Approval: UL, CSA, NEC
• PDW ID: ECL171780
• Product UPC: 01899712200
• Throat Type: Insulated
• Type: Press Fit, Press-On
• Used On: EMT Conduit
• Trade Size: 1/2 in
• Dimensions: 0.84 in Dia x 0.52 in H
• Insulated/Non-Insulated: Insulated
• Mounting Type: Press-On
• Style: Push-On Insulating Bushing Listed for Use in Air Handling Spaces per 2011 NEC 300-22(c)
• Usage: EMT Insulating Bushings Protect Cables from Abrasion by EMT
• Material(s): Plastic
• Listing: UL, CSA
• Unit Packaging: 100pcs
• Standard Packaging: 1000pcs
• Connector Type: Bushing
• Terminal: Bushing
• Temperature Rating: 257 degree fahrenheit
• Connector Gender: Female
• Insulation Material Type: Plastic
• Nominal Size: 1/2 Inch
• End Style: Press-On
• Features: Insulated
