Arlington Industries DBHM1W Low Profile InBox for New Construction Stucco, Textured Surfaces and Rigid Siding

Product Description

The ARLINGTON INDUSTRIES DBHM1W is a low profile InBox designed for new construction stucco, textured surfaces, and rigid siding. This one-piece assembly replaces the installation of an electrical box and bubble cover assembly. It installs in the wall, so less of it shows outside. Holes in the flange allow stucco to bond firmly. The cover is removable for easier device installation.

• Replaces the installation of an electrical box and bubble cover assembly
• Installs in the wall, so less of it shows outside
• Holes in flange allow stucco to bond firmly

Product Highlights

The DBHM1W InBox features UV rated plastic for long outdoor life and is suitable for new stucco construction.

Product Information

Standard Information

• Brand: ARLINGTON INDUSTRIES
• Manufacturer Part Number: DBHM1W
• Country of Origin: USA

Technical Specifications

• Components: COUPLERS / JUNCTIONS
• UNSPSC Code: 39131713
• Capacity: 22 cu-in
• Enclosure Type: NEMA 3R
• Finish: Textured/Painted
• Material: Plastic
• Mounting Orientation: Horizontal
• Number of Gangs: 1
• Series: DB Series
• Type: 1-Piece Low Profile
• UPC-A: 018997776105
• Unit Packaging: 1pc
• Standard Packaging: 4pcs
• Available w/ Grounding Clip: Yes - Order Part Number DBHM1WGC
• NEC Compliance: Meets 2021 NEC Section 406.9 (B) for the protection of exterior outlets which require the use of an extra-duty weatherproof while-in-use cover for all outdoor 15 or 20 AMP receptacles.
• Style: Horizontal
• Trade Size: 1-Gang

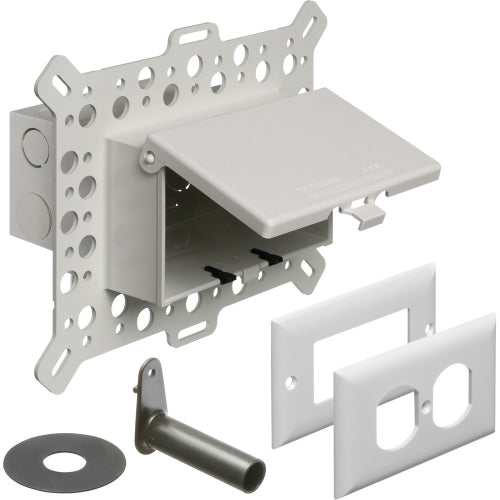

• Comes With: (1) Weatherproof-in-use extra-duty cover (1) Single-Gang Wall Plate with screw(s) (1) Single-Gang Decorator-Style / GFCI Wall Plate with screws (1) NM94 Cable Connector (1) Mud Cover (2) Bug Plugs (1) Box (1) Block bushing with washer
• Brand: ARLINGTON
• Installation Type: Recessed
• Manufacturer: Arlington Industries. Inc
• Part Number: DBHM1W-1
• Item model number: DBHM1W-1
• Is Discontinued By Manufacturer: No
• Item Package Quantity: 1
• Batteries Included?: No
• Batteries Required?: No
• ADI Part Number: 9N-DBHM1W
• Brand Name: Arlington Industries
• Product Name: Low Profile InBox for New Stucco, Textured Surfaces, and Rigid Siding
• Product Type: Mounting Box
• UPC: 018997776105
