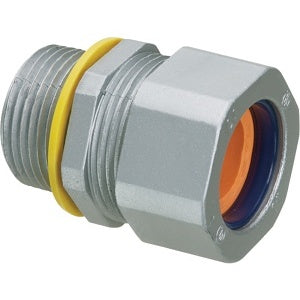

Arlington Industries CG100875 Cord Connector .750-.875 1 Inch

Product Description

The ARLINGTON INDUSTRIES CG100875 is a zinc die-cast, liquid-tight, and oil-tight strain relief cord connector furnished with a sealing ring and locknut. It supports a .750 to .875 cord range with a 1 inch trade size. Suitable for jumper cables, bus drop cables, copper XHHW-2 wire, copper SER, and copper XLP USE-2.

• Liquid/Oiltight Strain Relief
• UL File No. E105706
• CSA File No. LR49636

Product Highlights

Zinc die-cast construction ensures durability, while liquid-tight and oil-tight features provide reliable protection. Includes sealing ring and locknut.

Product Information

Standard Information

• Brand: ARLINGTON INDUSTRIES
• Manufacturer Part Number: CG100875
• Country of Origin: United States of America

Technical Specifications

• Type: Liquid/Oiltight Strain Relief
• UNSPSC Code: 39121311
• Cable Openings: 3/4 to 7/8 in
• Color: Silver
• Material: Die Cast Zinc
• Trade Size: 1 in
• Manufacturer: ARLINGTON INDUSTRIES
• Brand: Arlington
• MPN: CG100875
• ADI Part Number: 9N-CG100875
• Brand Name: Arlington Industries
• Product Name: Strain Relief Zinc Cord Connector
• Product Type: Cord Grips
• OD Min: 0.75 in.
• OD Max: 0.88 in.
• OD - min-max average: 0.81 in.
• Connection Type: Straight
• Connection Rating: Liquid-tight, Oil-tight
• Color Code: Zinc
• Cable Range: 0.750 - 0.875 in.
