Arlington Industries 8418 3-1/2 inches Strap-Type Flex/AC/MC Cable Connector

Product Description

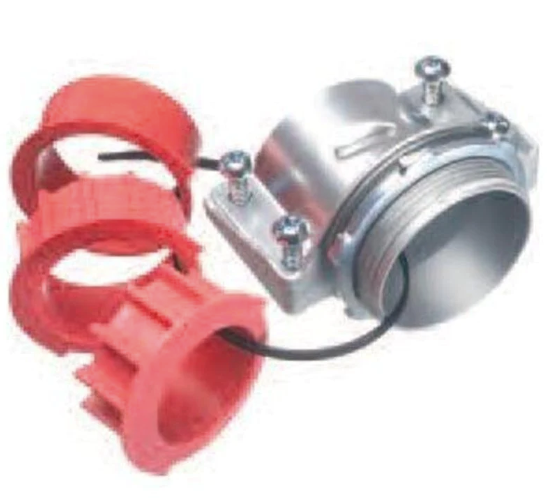

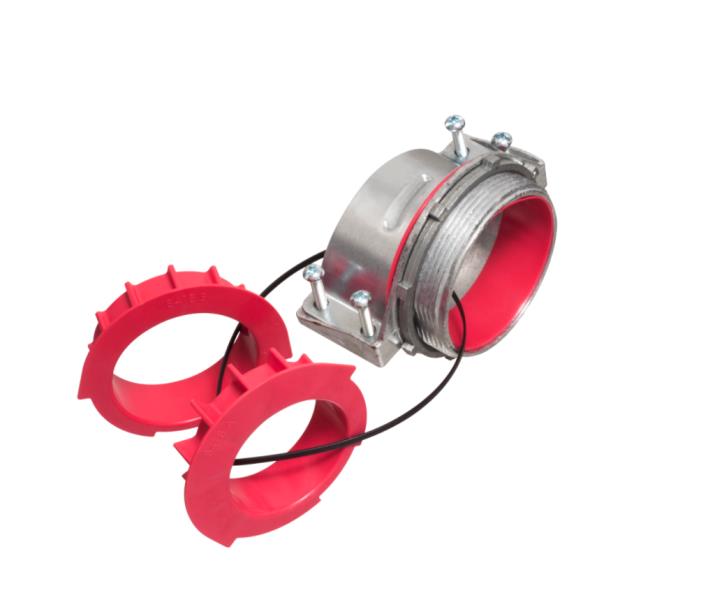

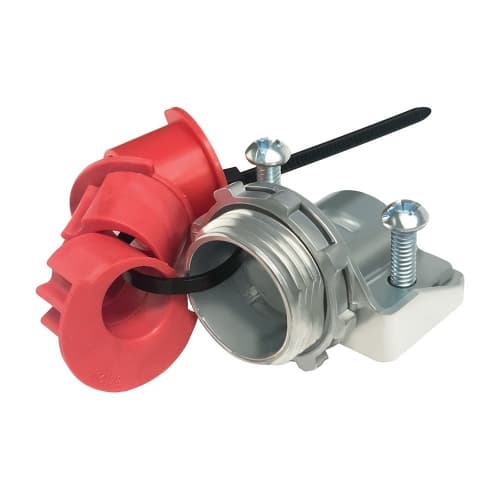

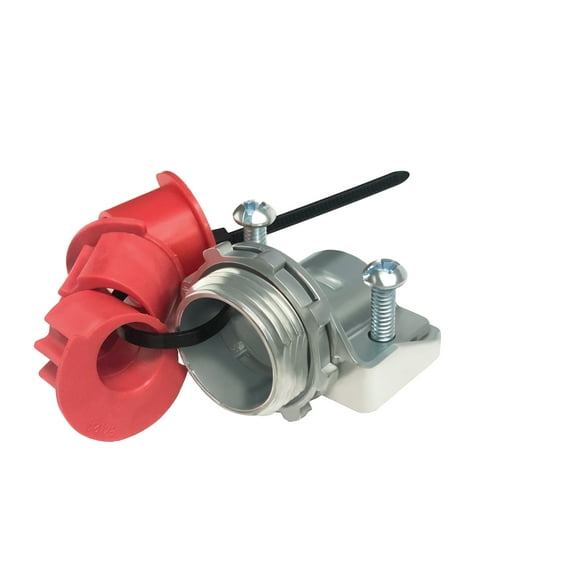

The ARLINGTON INDUSTRIES 8418 is a zinc die-cast MC feeder cable connector with a steel strap. It secures into a 3-1/2" knockout with a steel locknut and is concrete tight when taped. It has a built-in end stop fitting and comes with additional end stop bushings for a wider range of cables.

• For MCI-A, MC/HCF steel and aluminum cable, AC/HCF steel and aluminum cable, Flexible metal conduit steel and aluminum (regular and reduced wall), MCI cable, Continuous corrugated aluminum, AC90, TECK90.
• Concrete tight when taped.
• cUL/UL Listed.

Product Highlights

This 3-1/2" MC cable connector is designed for oversized conduit with a threaded zinc body for durability and resistance to moisture and wear. Approved for commercial applications.

Product Information

Standard Information

• Brand: ARLINGTON INDUSTRIES
• Manufacturer Part Number: 8418

Technical Specifications

• Manufacturer: ARLINGTON INDUSTRIES
• Brand: Arlington Industries
• Part Number: 8418
• Type: Male Threaded
• Hub Size: 3-1/2" Inch
• Throat Type: Bushing
• Cable Type: Metal Clad Cable
• Cable Size: 2.5 to 3.3 Inch
• Length: 3.281 Inch
• Material: Die Cast Zinc
• Certificate: cUL/UL Listed
• Trade Size: 3-1/2-in.
• Knockout Size: 3-1/2-in.
• Cable Outer Diameter Min: 3.300
• Cable Outer Diameter Max: 3.600
• Wire Bundle Outer Diameter Min: 3.031
• Wire Bundle Outer Diameter Max: 3.500
• Fitting: 3.450
• Category: Connector/Terminal/Pin
• Assembled product height: 3.5 in
