Arlington Industries 38AST Snap In Flex Conn

Product Description

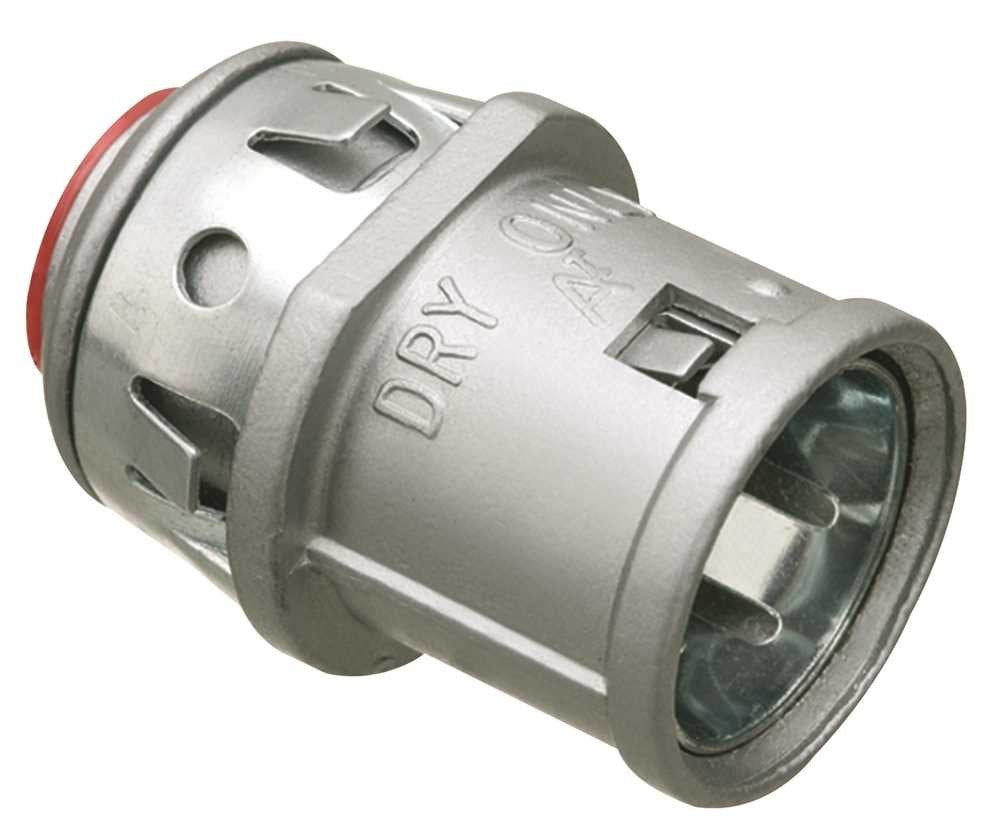

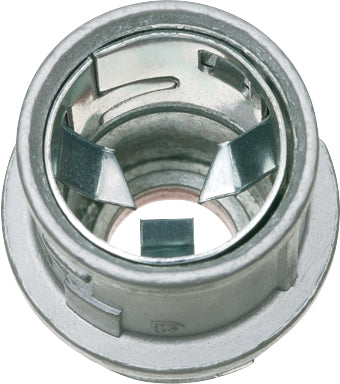

The ARLINGTON INDUSTRIES 38AST Snap In Flex Conn is designed for connecting armored or flexible metal conduit. Constructed from durable zinc die-cast, it features a push-in installation and an insulated throat. It is suitable for MC/HCF steel and aluminum cable, AC/HCF steel and aluminum cable, and MC cable continuous corrugated aluminum.

• Insulated throat
• K/O size is 1/2IN
• Cable range is .405-.61

Product Highlights

This connector offers a fast, easy, and cost-effective solution for connecting flexible conduits and cables in various applications.

Product Information

Standard Information

• Brand: ARLINGTON INDUSTRIES
• Manufacturer Part Number: 38AST

Technical Specifications

• UNSPSC Code: 39121400
• Approval: UL (Canada and US), CSA
• Cable Opening: Single
• Cable/Conduit Type: Armored Cable/Flex Metal Conduit/Metal Clad Cable
• Cord Size: 0.405 to 0.612 Inch
• Installation: Push-In
• Knockout Size: 1/2 Inch
• Manufacturer Name: Arlington Industries
• Material: Die-Cast Zinc
• PDW ID: ECL246944
• Product UPC: 01899700070
• Throat Type: Insulated
• Type: Straight
• Brand: ARLINGTON
• Model / MPN: 38AST
• Cable Openings: 0.45 to 0.612 in
• Cable Type: Aluminum/Steel/Flex/AC/AC90/ACG90/HCF/MC/MCI/MCI-A
• Connector Type: Snap-on Connector
• Temperature Rating: 257 degree fahrenheit
• Maximum Voltage: 600 Volts
• Contact Material: Zinc
• Insulation Material Type: [ANY]
• Material Type: Zinc Die-Cast
• Stud Size: 1/2 inch
• Standard Package: 500
