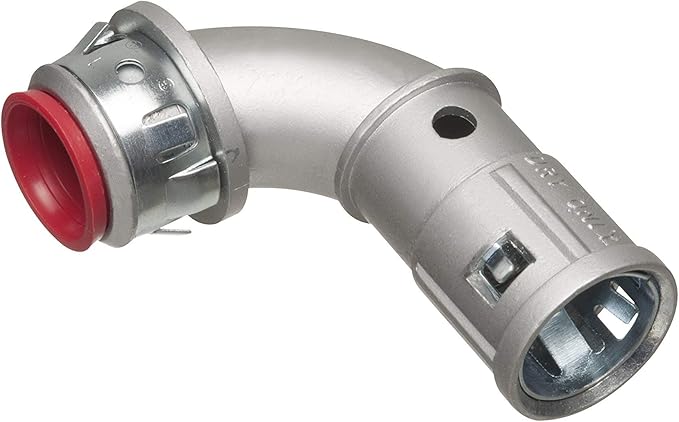

Arlington Industries 38900AST 90 degree snap to it cable connector 1/2 in

Product Description

The ARLINGTON INDUSTRIES 38900AST is a 90-degree snap to it cable connector made of zinc die-cast, designed for AC, MCI, HCF, MCIA, and MCPCS cables. It features an insulated throat and accommodates a cable range of 0.405 to 0.600 inches. The connector provides a secure installation and is reusable with easy screwdriver removal from the box.

• Constructed from die-cast zinc for durability.
• Accommodates cables ranging from 14/2 to 10/3 AWG.
• Features a snap-on connection for easy installation.

Product Highlights

This 90-degree cable connector ensures a secure fit and is suitable for various cable types, offering a reliable and reusable solution for cable connections.

Product Information

Standard Information

• Brand: ARLINGTON INDUSTRIES
• Manufacturer Part Number: 38900AST
• Country of Origin: USA

Technical Specifications

• Type: COUPLER
• UNSPSC Code: 39121311
• Approval: UL (Canada and US)
• Cable Opening: Single
• Cord Size: 0.405 to 0.61 Inch
• Knockout Size: 1/2 Inch
• Manufacturer Name: Arlington Industries
• Material: Die-Cast Zinc
• Product UPC: 01899704093
• Throat Type: Insulated
• Angle: 90 deg
• Cable Type: Aluminum/Steel
• Connection Type: Snap-On
• Trade Size: 1/2 in
• Part Number: 38900AST
• Cable Range: 0.405 - 0.610
• Hub Size: 1/2 in.
• OD Min: 0.405 in.
• OD Max: 0.610 in.
