Arlington GB5NC Intersystem Grounding Bridge (L1.409 x W0.872 x H3.383)

Product Description

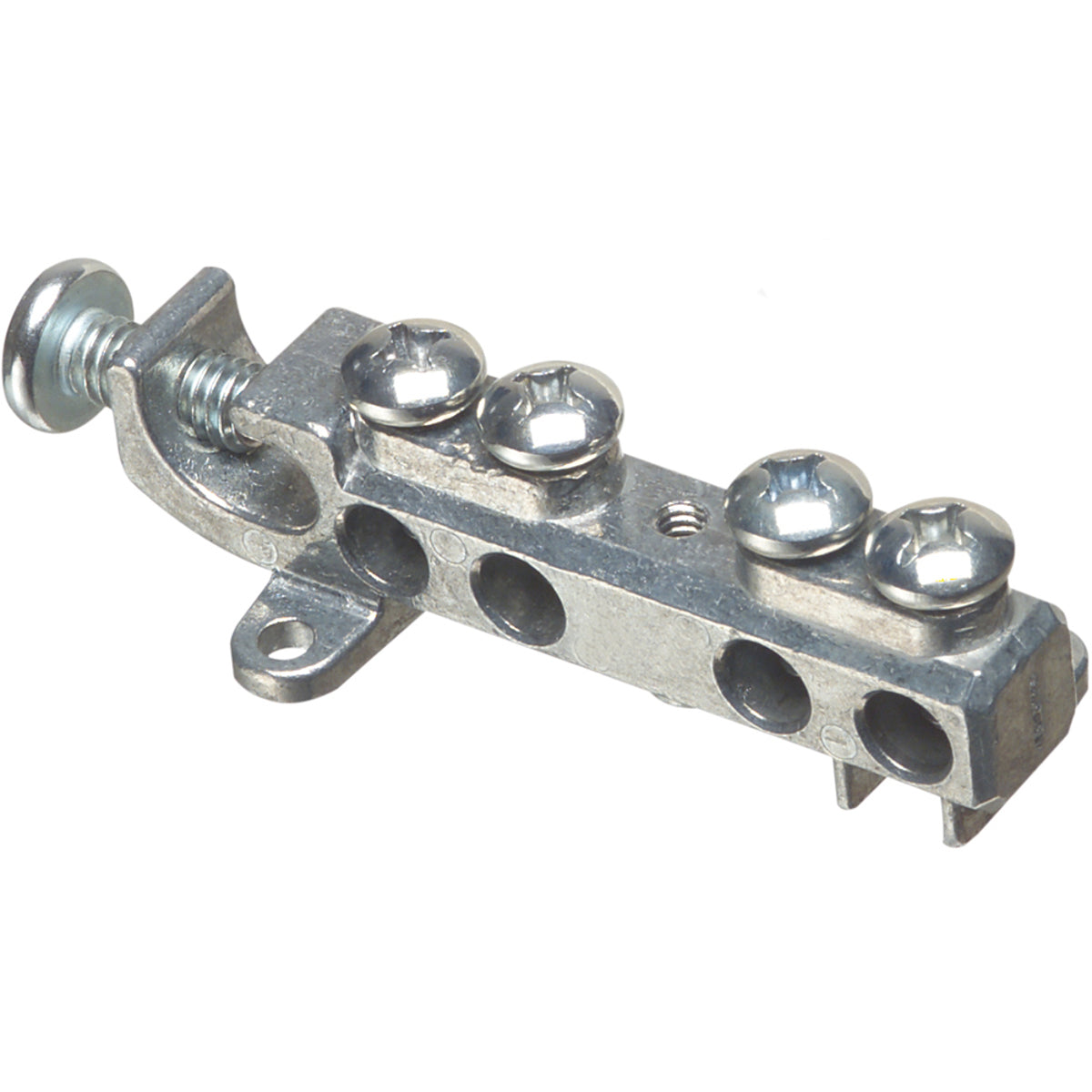

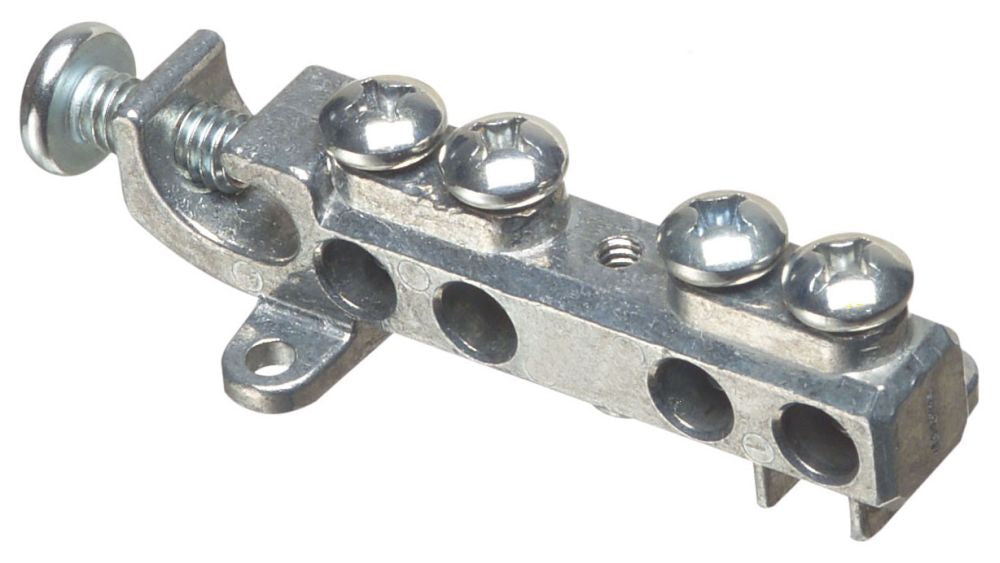

The Arlington GB5NC is an intersystem grounding bridge with four termination points that provides a common bonding point between power and communication grounding systems. It is constructed of zinc with a plated finish, supplied without a cover, and manufactured in the United States. The four termination points accept #4 to #14 AWG (solid or stranded) and the lay-in lug attaches to grounding conductors from #6 to #2 AWG.

• Four termination points � termination cable range #4 to #14 AWG (solid or stranded); handles multiple communication hookups.
• Lay-in style lug attaches to equipment grounding or grounding electrode conductors #6 to #2 AWG (solid or stranded); compatible with copper and aluminum.
• Zinc plated construction, no cover included; dimensions L 1.409 in x W 0.872 in x H 3.383 in; CULUS/UL listed.

Product Highlights

Four termination points for intersystem bonding; zinc plated body; accepts #4�#14 and #6�#2 AWG; no cover; made in USA; CULUS/UL listed.

Product Information

Standard Information

• Brand: ARLINGTON
• Manufacturer Part Number: GB5NC
• Country of Origin: United States
