Arlington FS8091F Box Out Dvc Plstc 19.4Cu-In 1 1 2 1/2In

Product Description

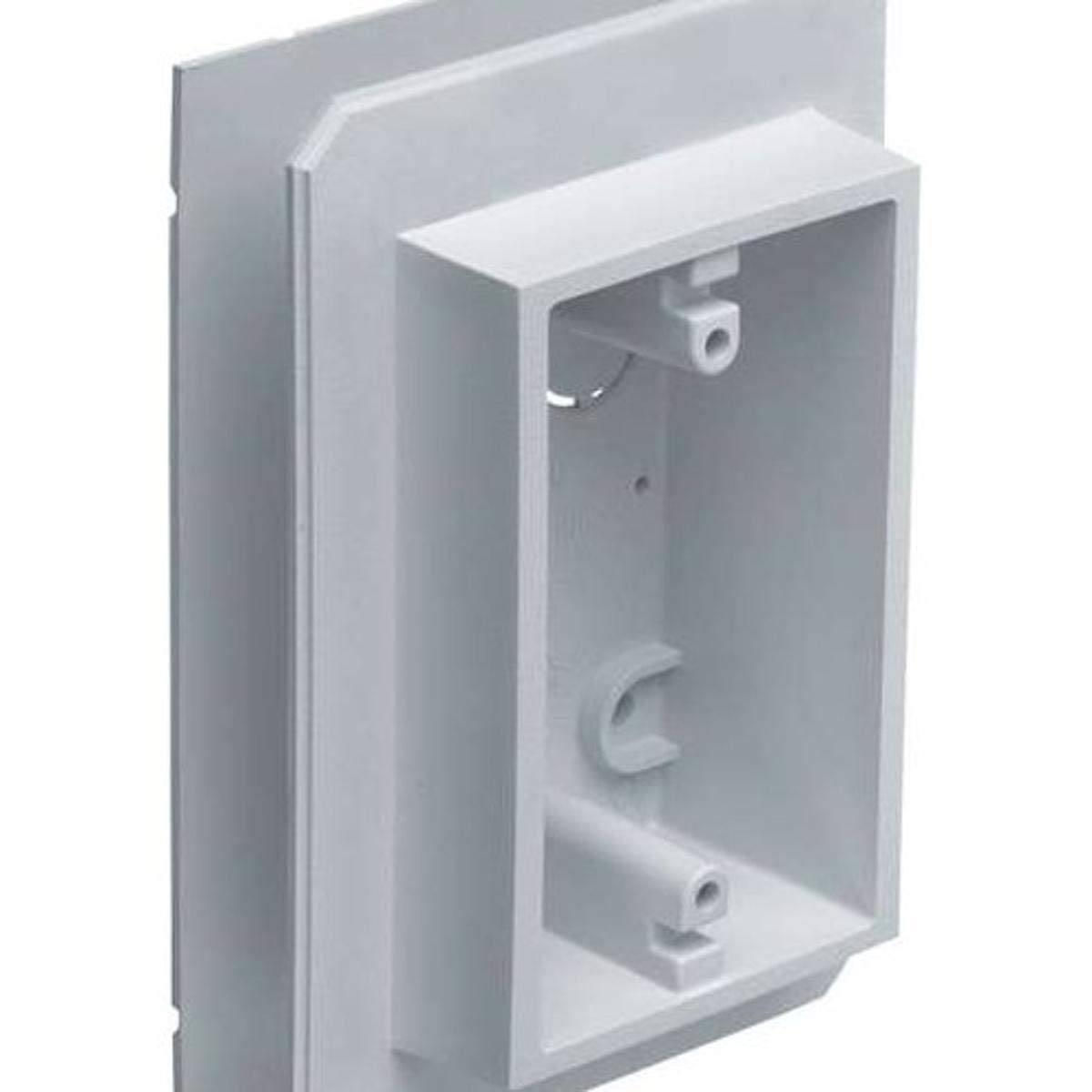

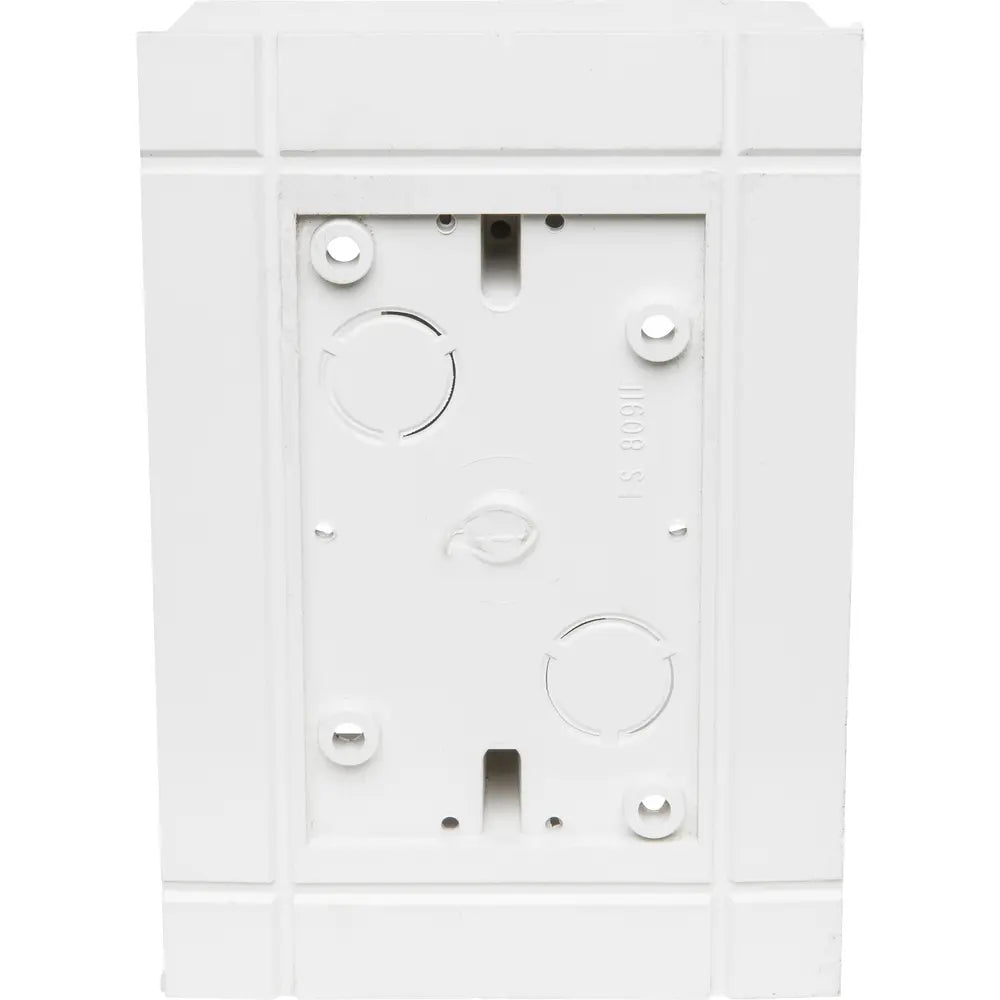

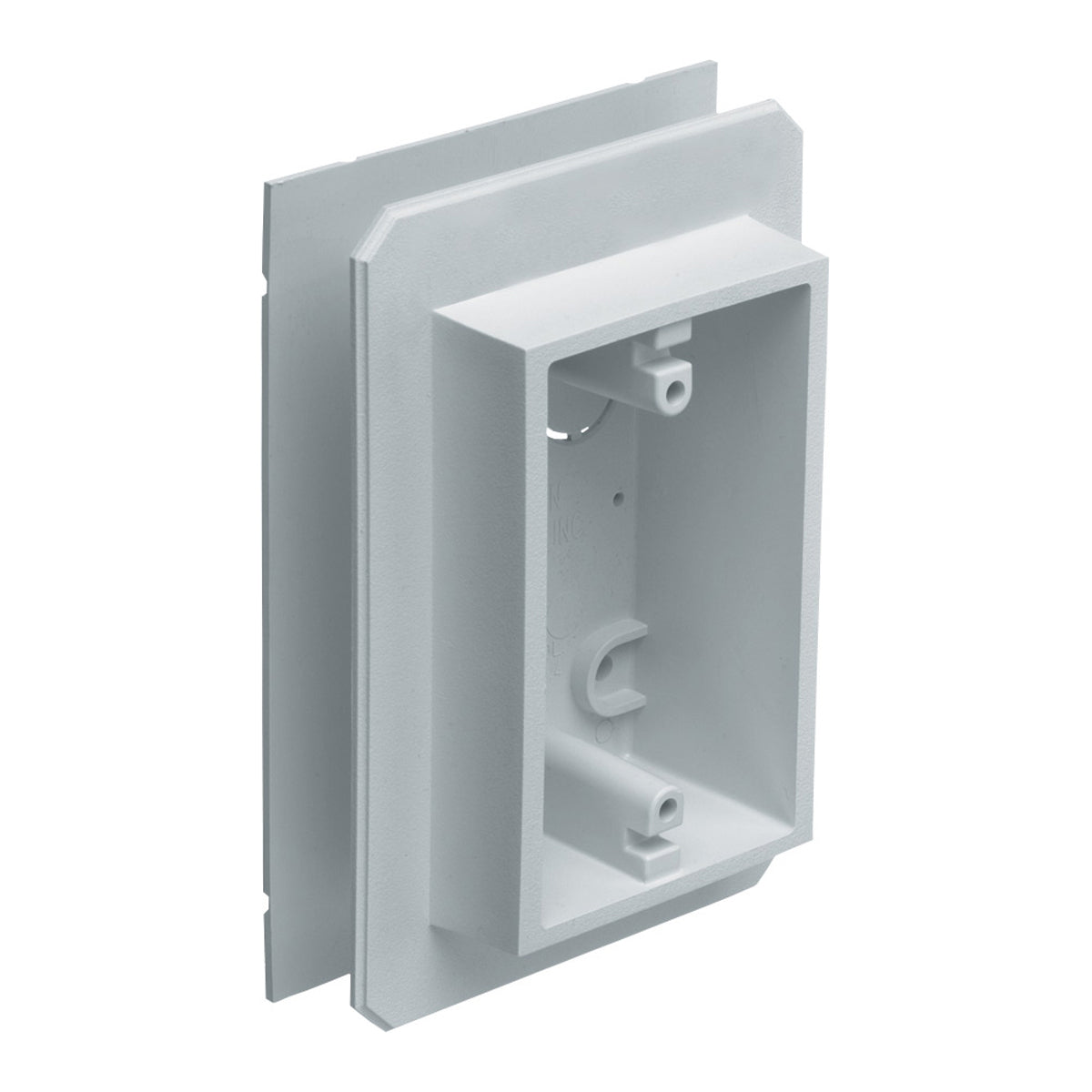

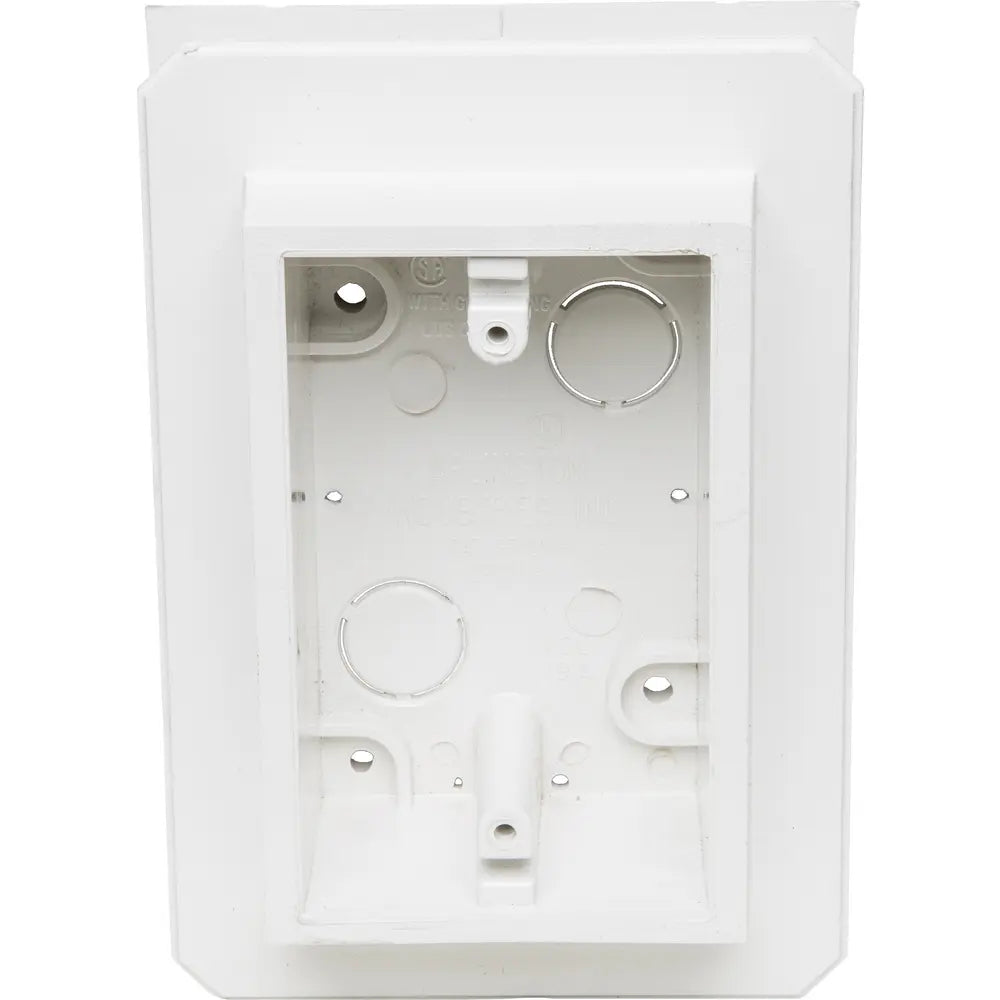

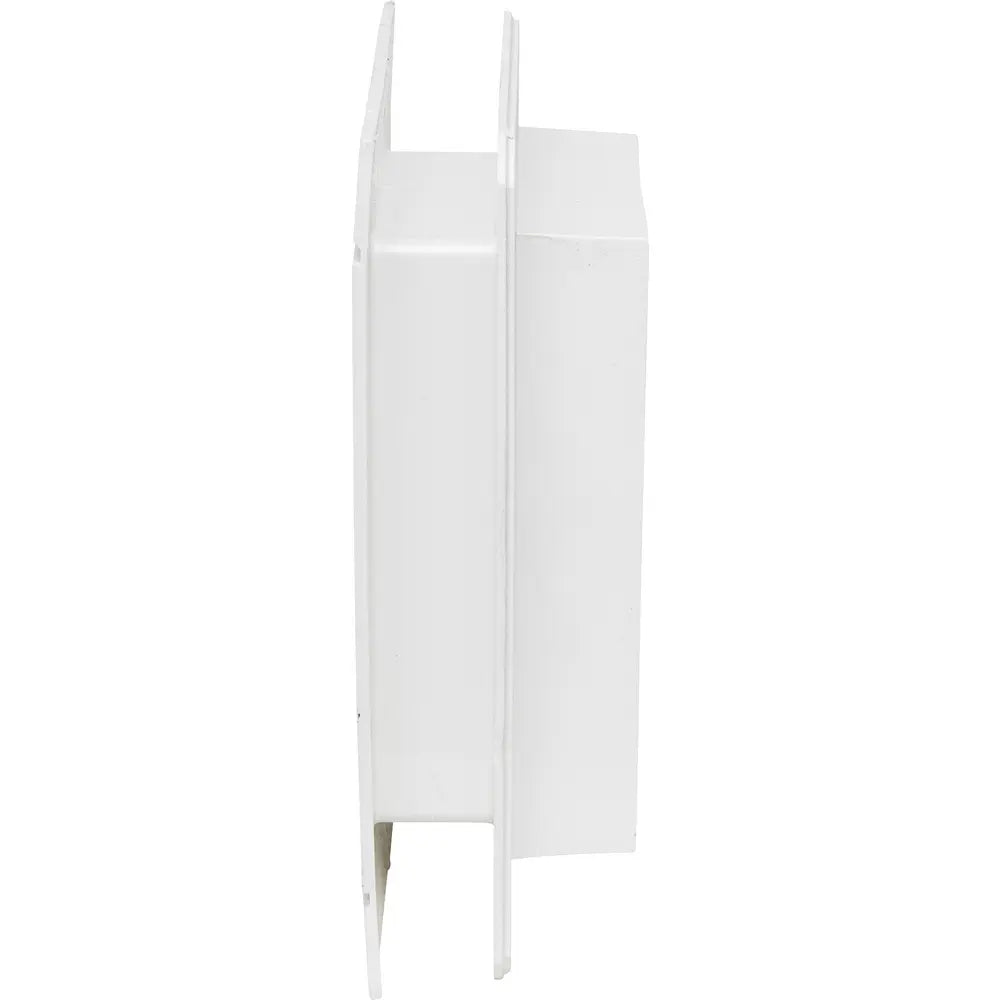

The Arlington FS8091F device outlet box is a 1-piece weatherproof box with 1 outlet and 1 gang. Featuring 2 knockouts with a 1/2 inch knockout size, it is designed for wall mounting in horizontal or vertical orientations. Constructed from plastic with a 19.4 cu-in capacity.

• Works on all siding types before or after the siding is up
• Can be installed before or after siding is up
• Mounting holes are provided on the inside of the box and along the flange

Product Highlights

This UV-rated plastic box is paintable and accommodates GFCIs, offering a durable solution for various siding installations.

Product Information

Standard Information

• Brand: ARLINGTON
• Manufacturer Part Number: FS8091F
• Country of Origin: US

Technical Specifications

• Type: 1-Piece Weatherproof
• Capacity: 19.4 cu-in
• Manufacturer: ARLINGTON
• Knockout Size: 1/2 in
• Mounting Type: Wall
• Number of Gangs: 1
• Number of Outlets: 1
• Number of Knockouts: 2
• Mounting Orientation: Horizontal/Vertical
• Width: 4.51 Inches
• Height: 6.56 Inches
• Material: Plastic
• Standard: UL, CSA
• Cable Entry: Knockouts
• Country of Origin: US
• Depth: 2.656
• Item Name: Weatherproof FS Box
• Finish: Textured
• MPN: FS8091F
• Brand: ARLINGTON
• Cubic Capacity: 19.4
• Application: For installing devices on all siding types, paintable, UV rated plastic for long outdoor life and single gang device with GFCI
• Number Of Outlet: 1
• Special Features: Costs less, one-piece design
• Siding Type: All types
