Arlington FLBC8510NL single gang frame kit with flip lid cover

Brand: Arlington
SKU: FLBC8510NL
Availability: In Stock

Ships same day if ordered by 12 pm
$224.42
$224.42
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

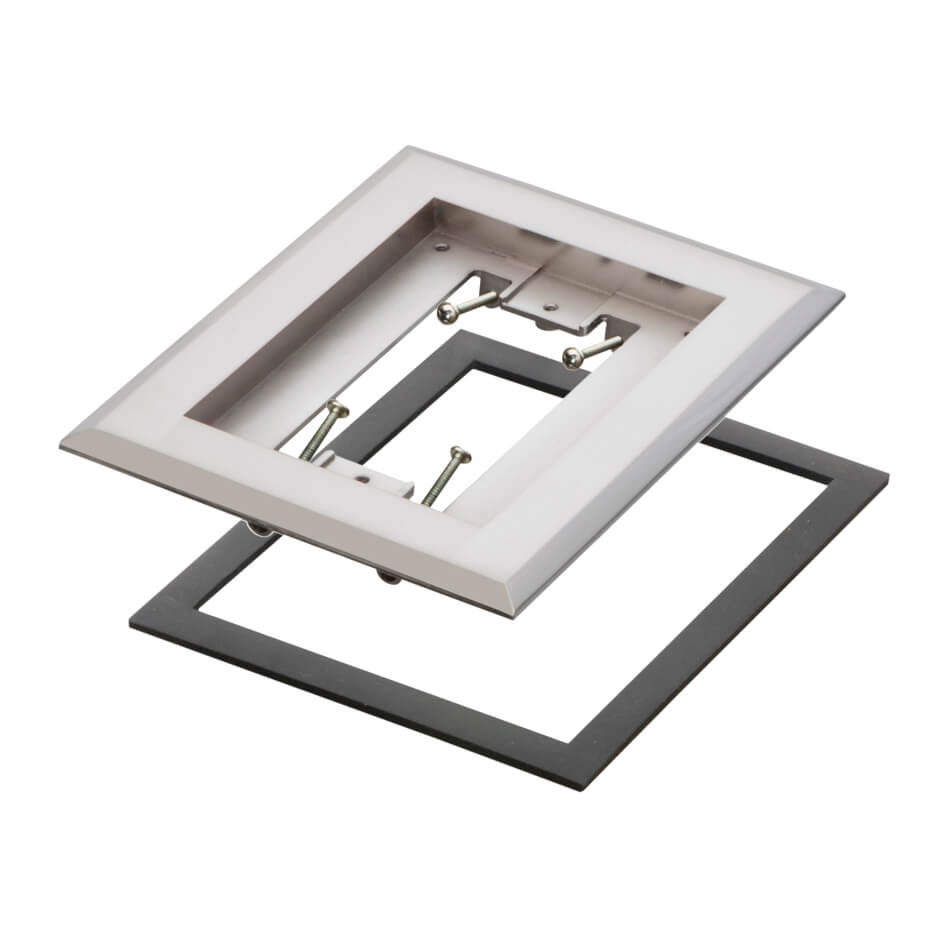

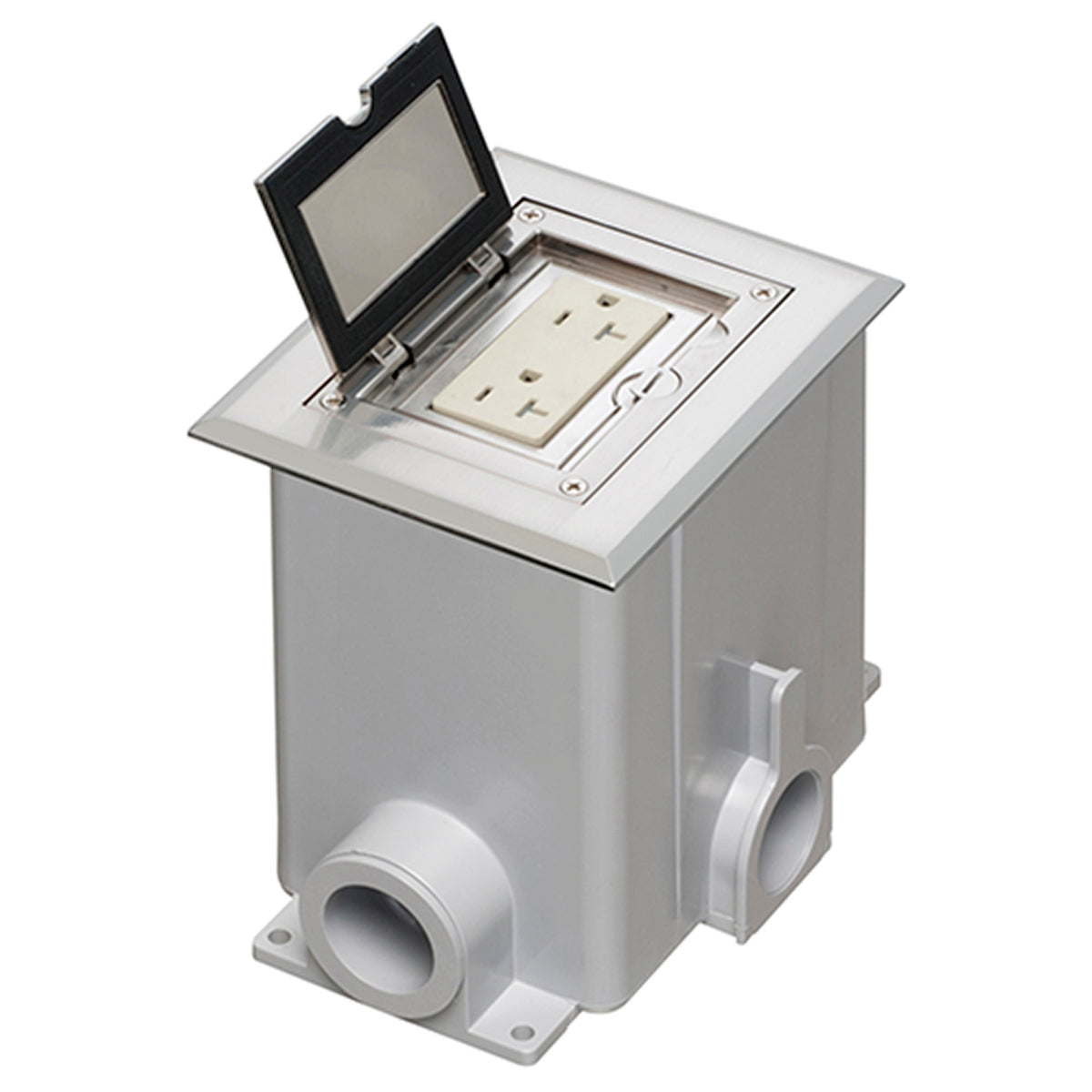

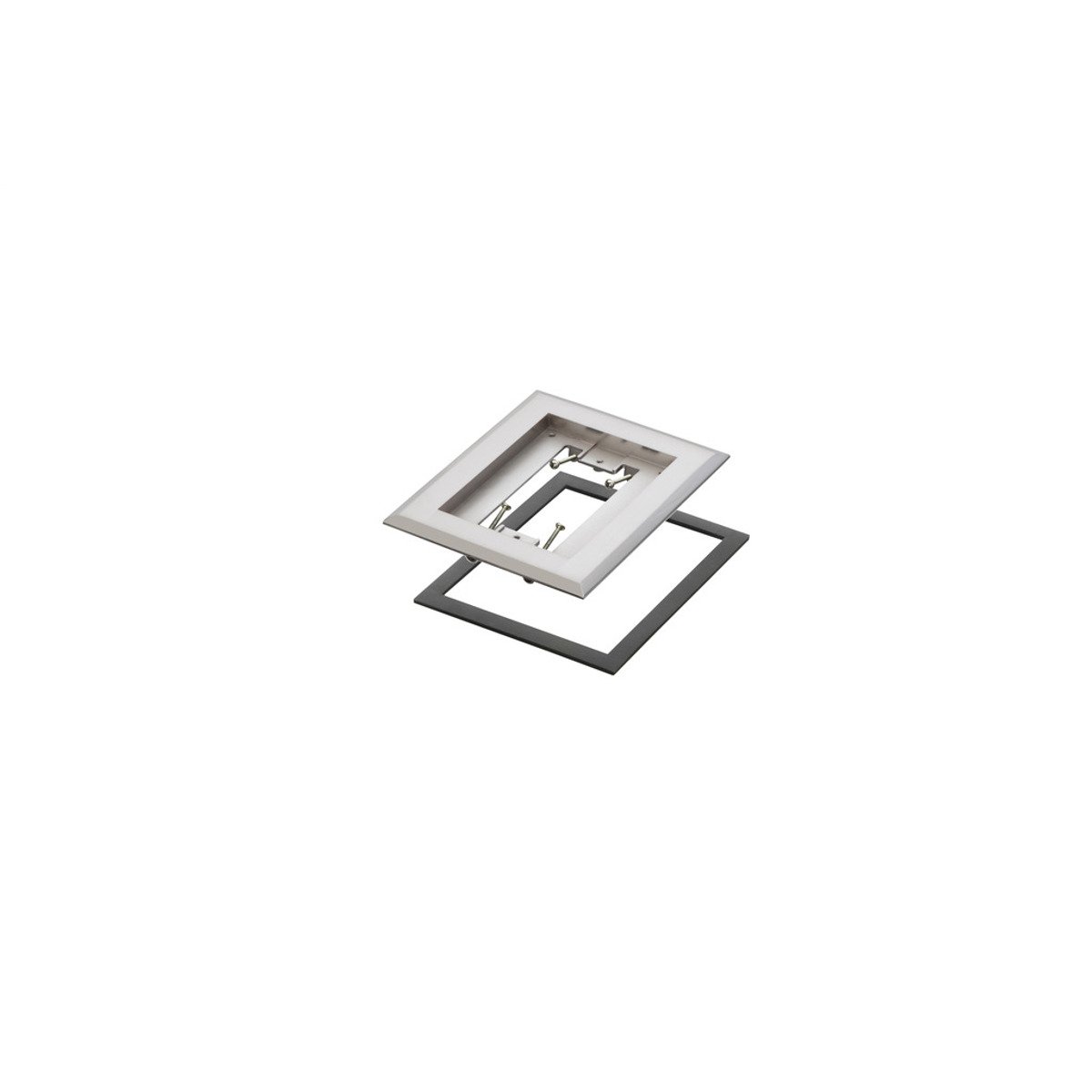

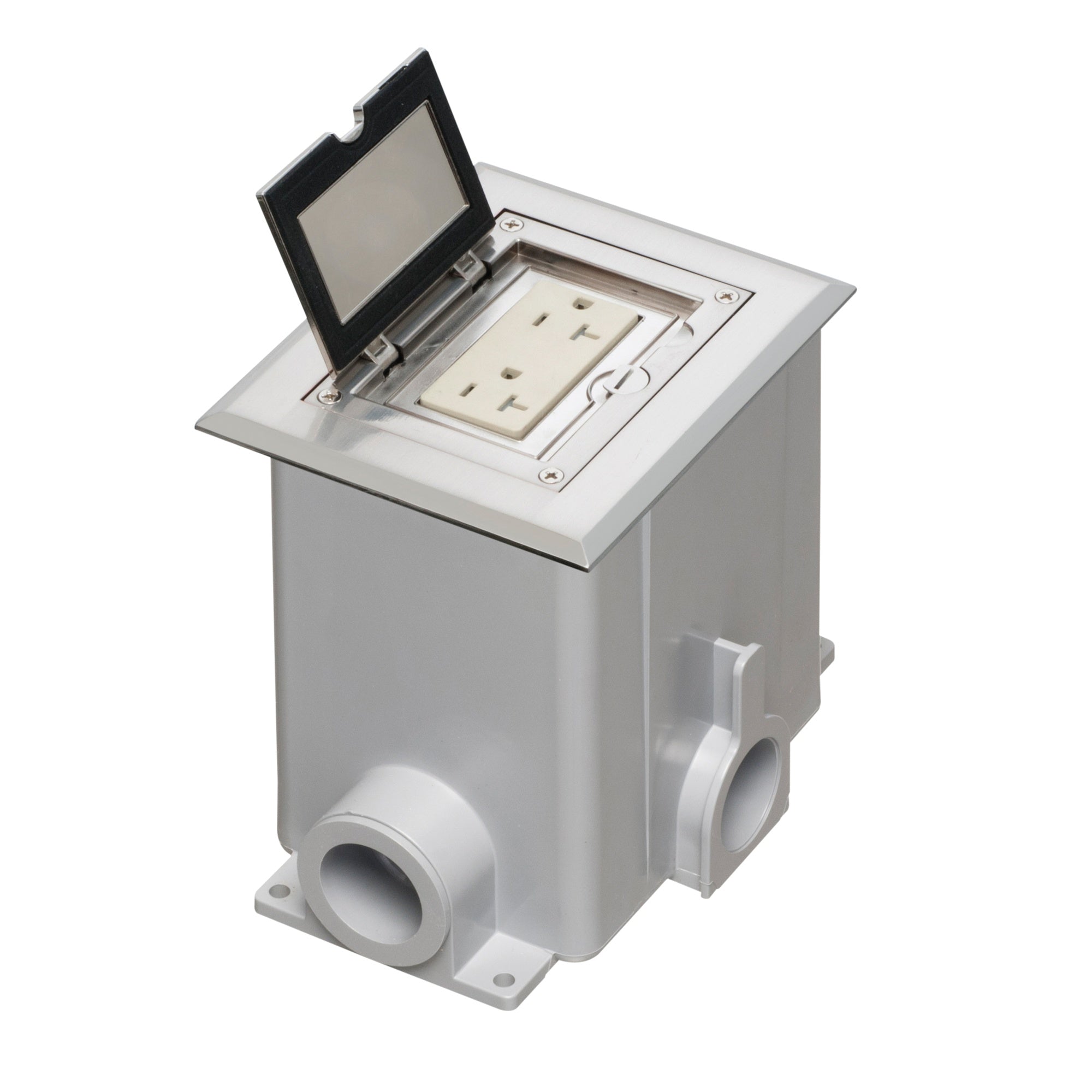

The Arlington FLBC8510NL is a nickel single gang frame kit with a flip lid cover. It includes a 20A decorator style receptacle, a gasket, a low voltage insert, and installation screws. The flip lid cover can be opened in any direction. This kit is UL Listed and suitable for adding receptacles in new concrete pours in commercial installations.

  • Includes a 20A decorator style receptacle, gasket, low voltage insert, and installation screws
  • Flip lid cover can be opened in any direction
  • Prevents water intrusion to protect devices when not in use

Product Highlights

This single-gang frame kit is designed for concrete floor boxes, offering a convenient way to install receptacles in commercial settings. It features a flip lid cover and includes all necessary components for installation.

Product Information

Standard Information

  • Brand: Arlington
  • Manufacturer Part Number: FLBC8510NL
  • Country of Origin: China
Technical Specifications
Catalog Number
FLBC8510NL
Manufacturer
Arlington
Brand
Arlington
Sub Brand
Floor Box
Country of Origin
China
Made in USA
No
Color
Nickel
Cover Type
Nickel Flip Lid
Material
Nickel/Plastic
Standard
UL
Item Type
Floor Box
Size
L(6.094) x W(5.006) x H(0.750)
Number of Gangs
1
Thickness
3/4 in
Length
6.094 in
Width
5.006 in
Includes
(1) 20A decorator style receptacle, (1) gasket, low voltage insert and installation screws
Suitable For Use With
4.5 in Diameter Concrete Box
Trade Size
1-Gang
Type
Nickel Plated
Standards
UL Listed
Item Name
Gangable Box Kit With Flip Lid Cover
For Use With
FLBC8500 Concrete Floor Box
Finish
Nickel Plated
Configuration
(1) 20 Amp Decorator Style Receptacle
UNSPSC
39121304
Manufacturer Part Number
FLBC8510NL
UPC
01899722954
Manufacturer Name
Arlington
Height
6.094"
Material(s)
Nickel
Comes With

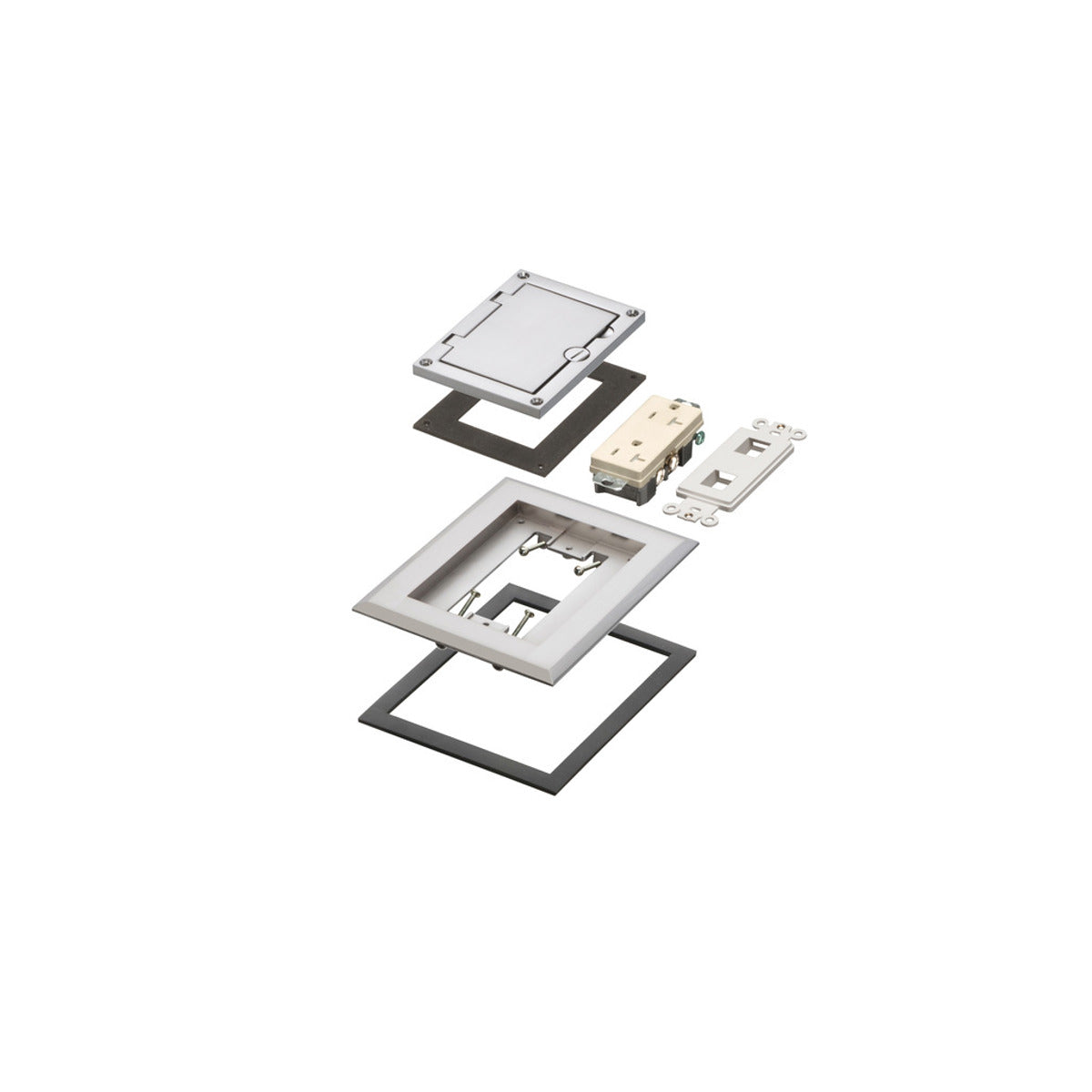

(2) Low-voltage spacers, (1) Low-voltage insert, (1) Frame Gasket, (1) Frame, (1) Cover Gasket, (1) Cover, (1) 20A Tamper-Resistant Decorator-Style Duplex Receptacle, (6) #6-32 x 3/4" Long Screws, (4) #6-32 x 1" Long Screws
