Arlington FLB6242NL Combination Floor Box Kit with Installed Low Voltage Divider

Product Description

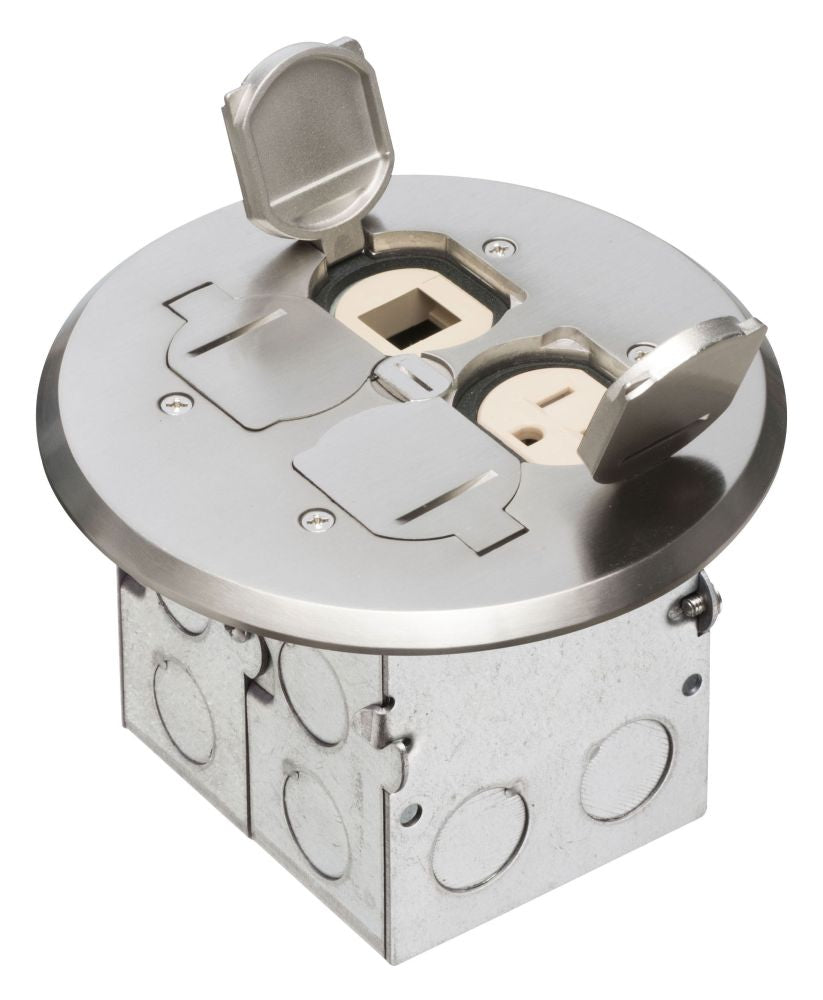

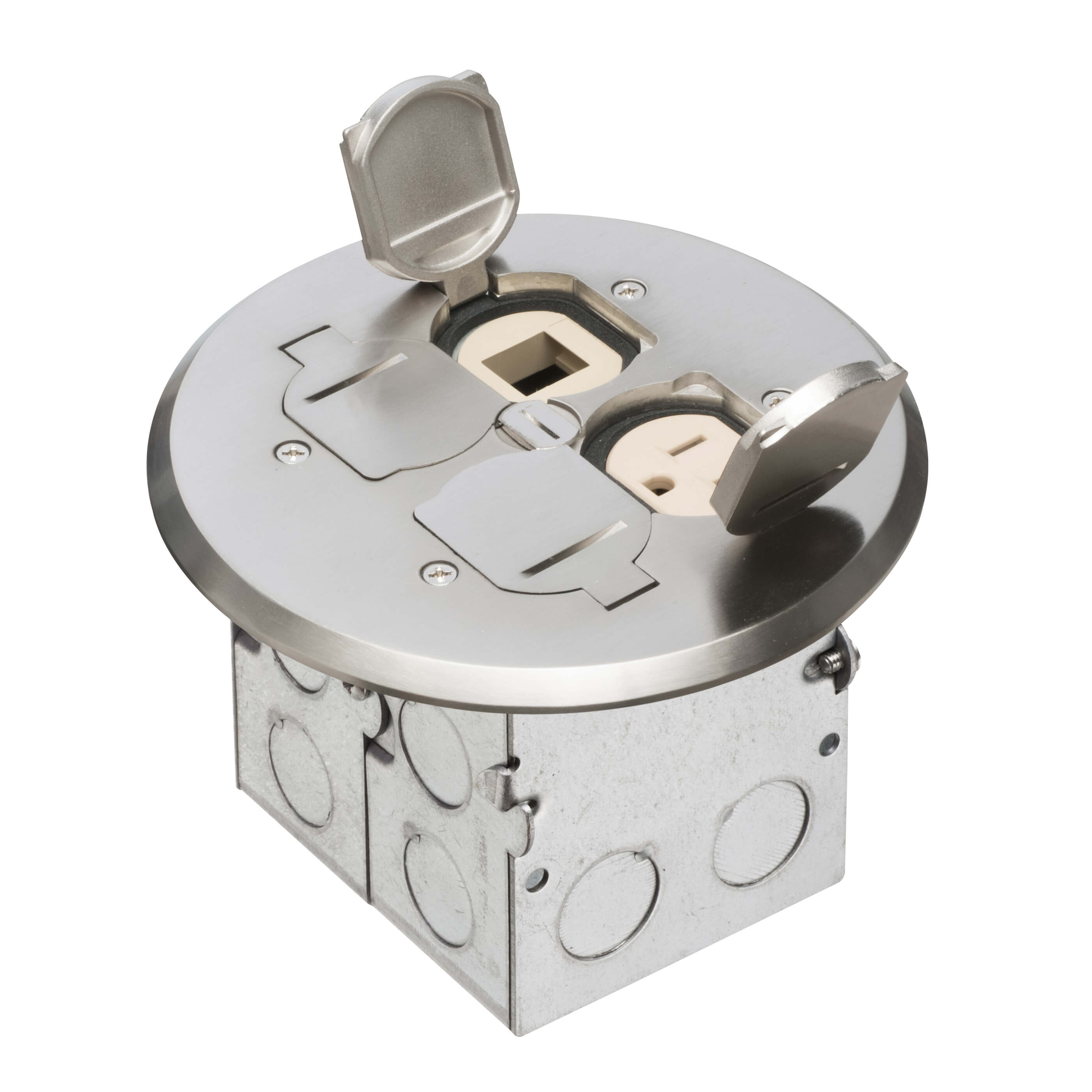

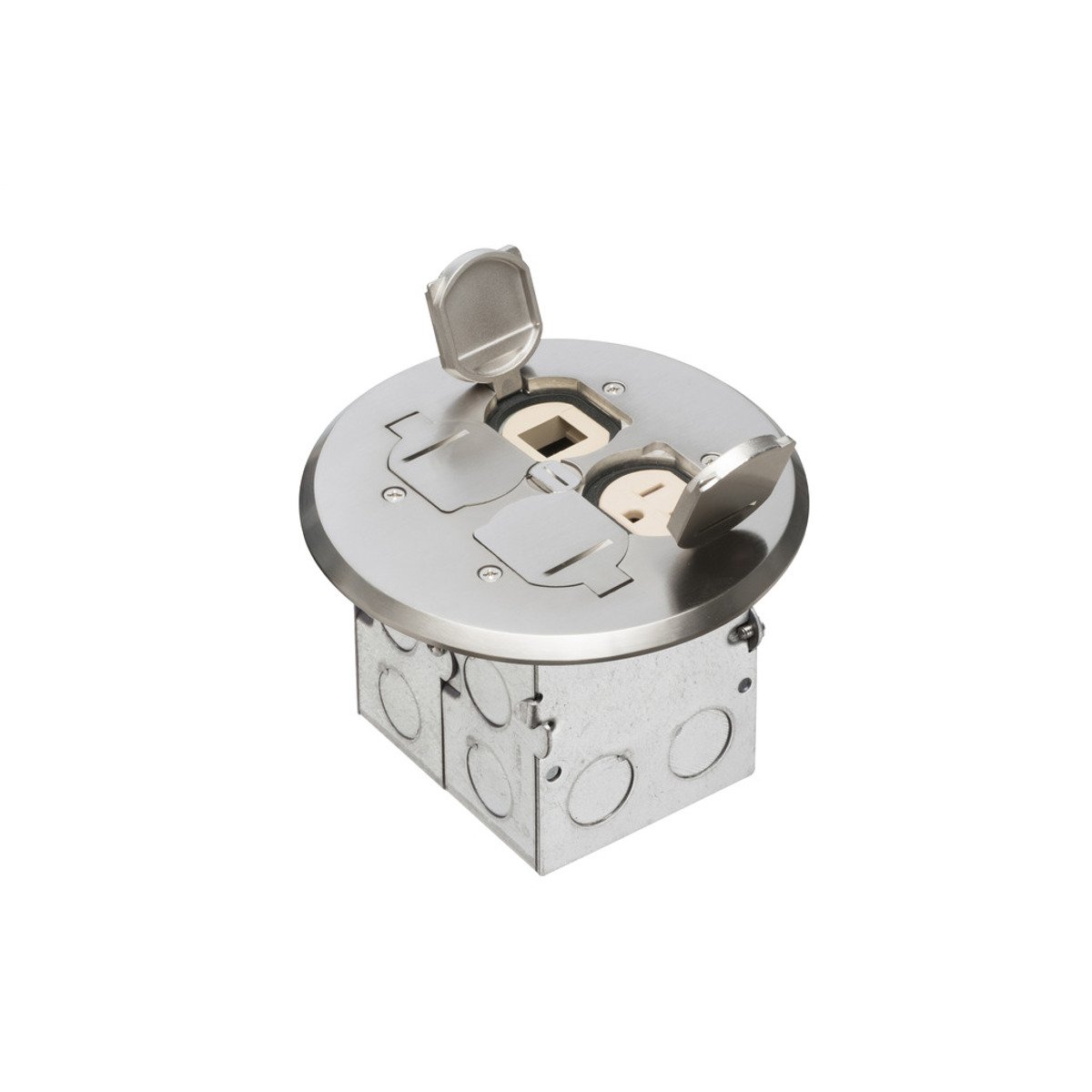

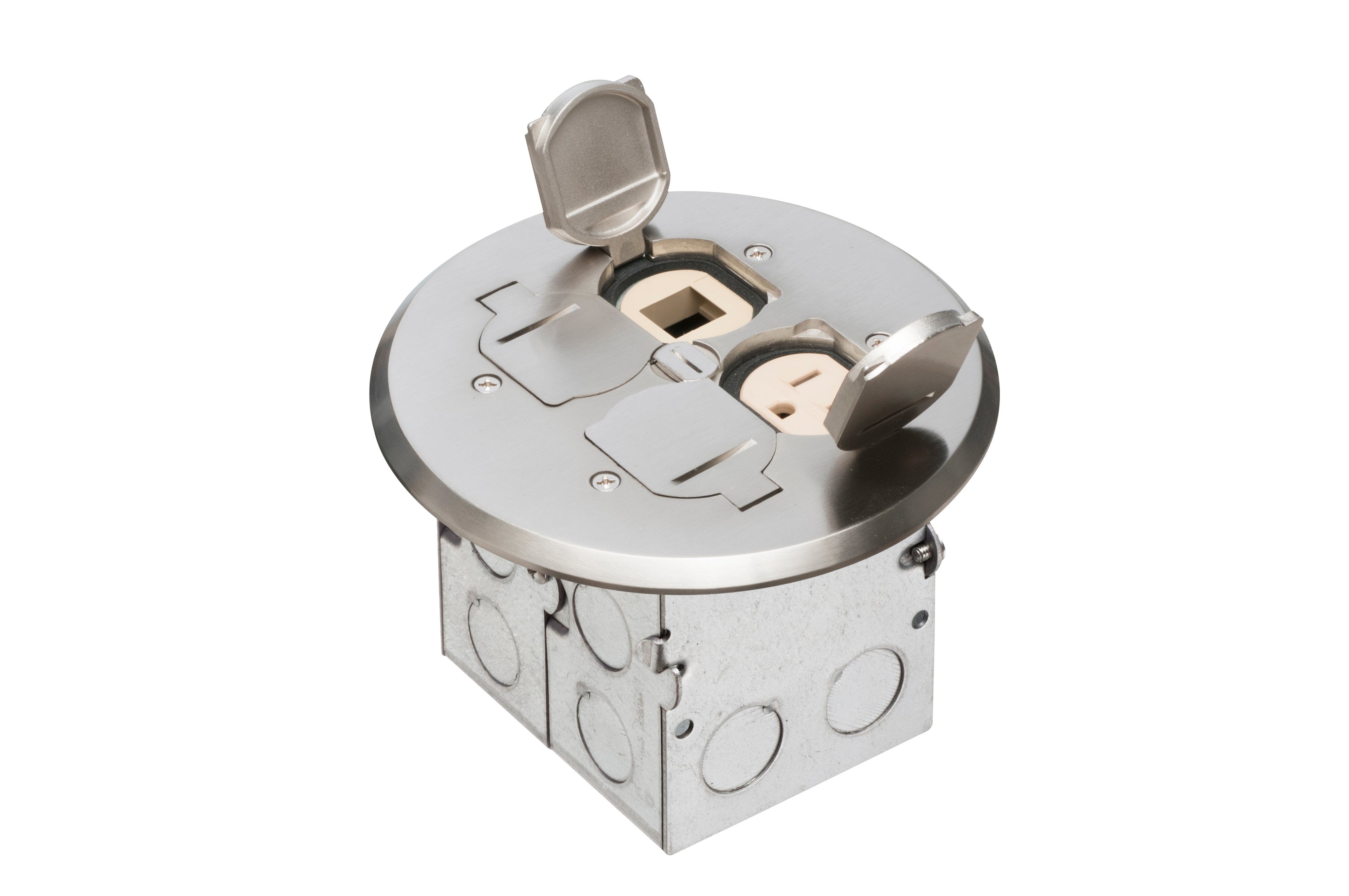

The ARLINGTON FLB6242NL is a combination floor box kit with an installed low voltage divider. It includes four flip lids and a gasket, one low voltage device, and one 110V receptacle, complete with a round nickel-plated cover. Designed for installation in new or existing floors.

• Easy to install receptacles flush in a new or existing floor.
• Designed for flexibility with multiple options for device setup.
• Four flip lids prevent water intrusion and protect the box when not in use.

Product Highlights

This floor box kit provides a convenient and flexible solution for installing power and low voltage connections in floors, ensuring protection and ease of use.

Product Information

Standard Information

• Brand: ARLINGTON
• Manufacturer Part Number: FLB6242NL
• Country of Origin: China

Technical Specifications

• Catalog Number: FLB6242NL
• Manufacturer: Arlington Industries, Inc
• Brand: Arlington
• Country of Origin: China
• Made in USA: No
• Application: Floor Box
• Material: Nickel, Plastic, Steel
• Standard: CULUS
• UPC: 018997228055
• GTIN: 00018997228055
• Length: 6.00 Inch
• Width: 6.00 Inch
• Height: 3.76 Inch
• Mounting Type: Flush
• Shape: Round
• Type: Combination
• Number of Gangs: 2
• Finish: Nickel Plated

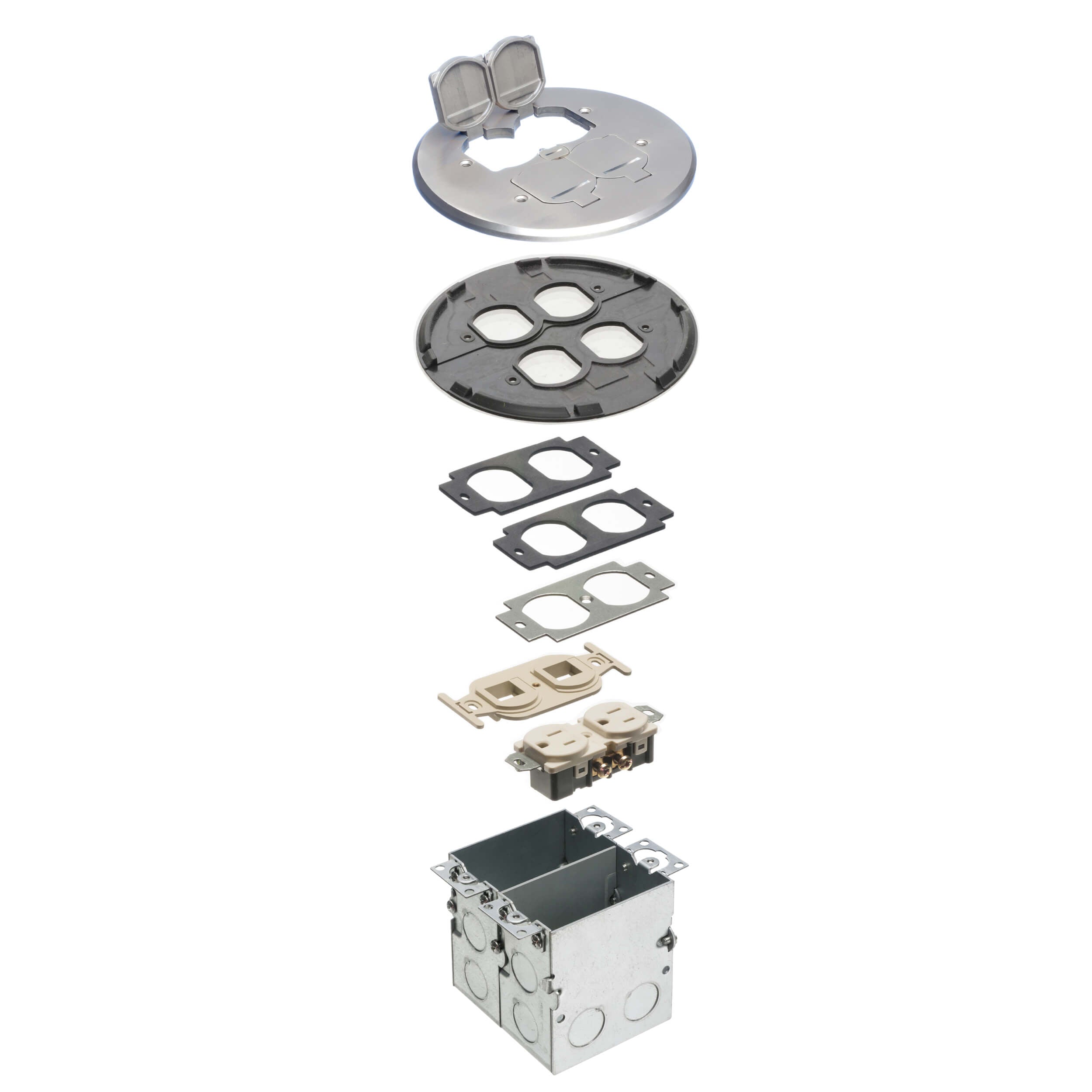

• Includes: 2-Gang Steel Box, 6 in Round Nickel Plated Brass Metal Cover with (4) Flip Lids, Assorted Gaskets, Low Voltage Divider and Low Voltage 110 VAC Tamper-Resistant Power Receptacle
• Standards/Approvals: ECCN: EAR99|UL/cULus Listed
• Service Type: Flush
• Installation: Floor
• Device Capacity: Receptacle
• Approval: UL (Canada and US)
• Voltage: 110
• Cover Plate Material: Brass
• Voltage Rating: 110V AC
• Mount Type: Floor Mount
• Additional Information: Low Voltage Device Receptacle: 1
• Package Contents: 2-Outlets Power/Data Outlet, 1 x Tamper-Resistant Duplex Receptacle, 1 x Low-voltage Insert, 2 x Gaskets, 1 x Gasket Support Plate, 1 x Cover
• Receptacle Type: AC Power
• Receptacle Detail: 1 x AC Power
