Product Description

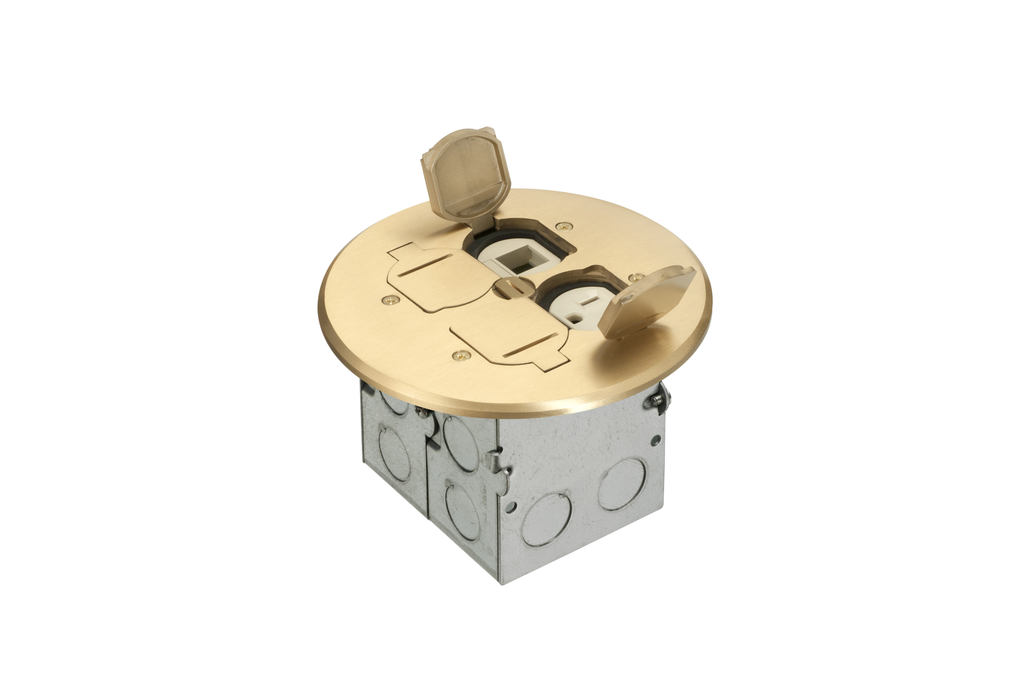

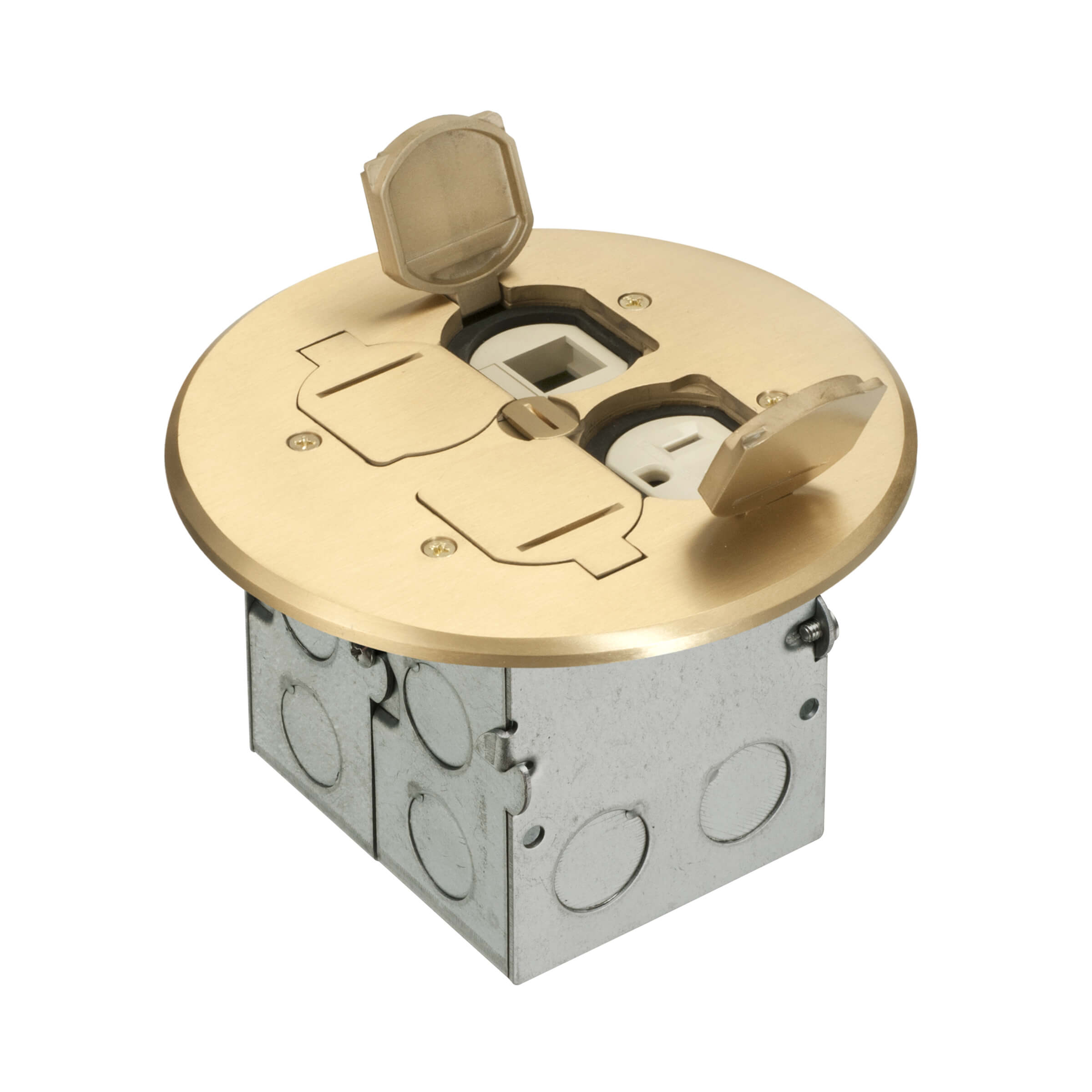

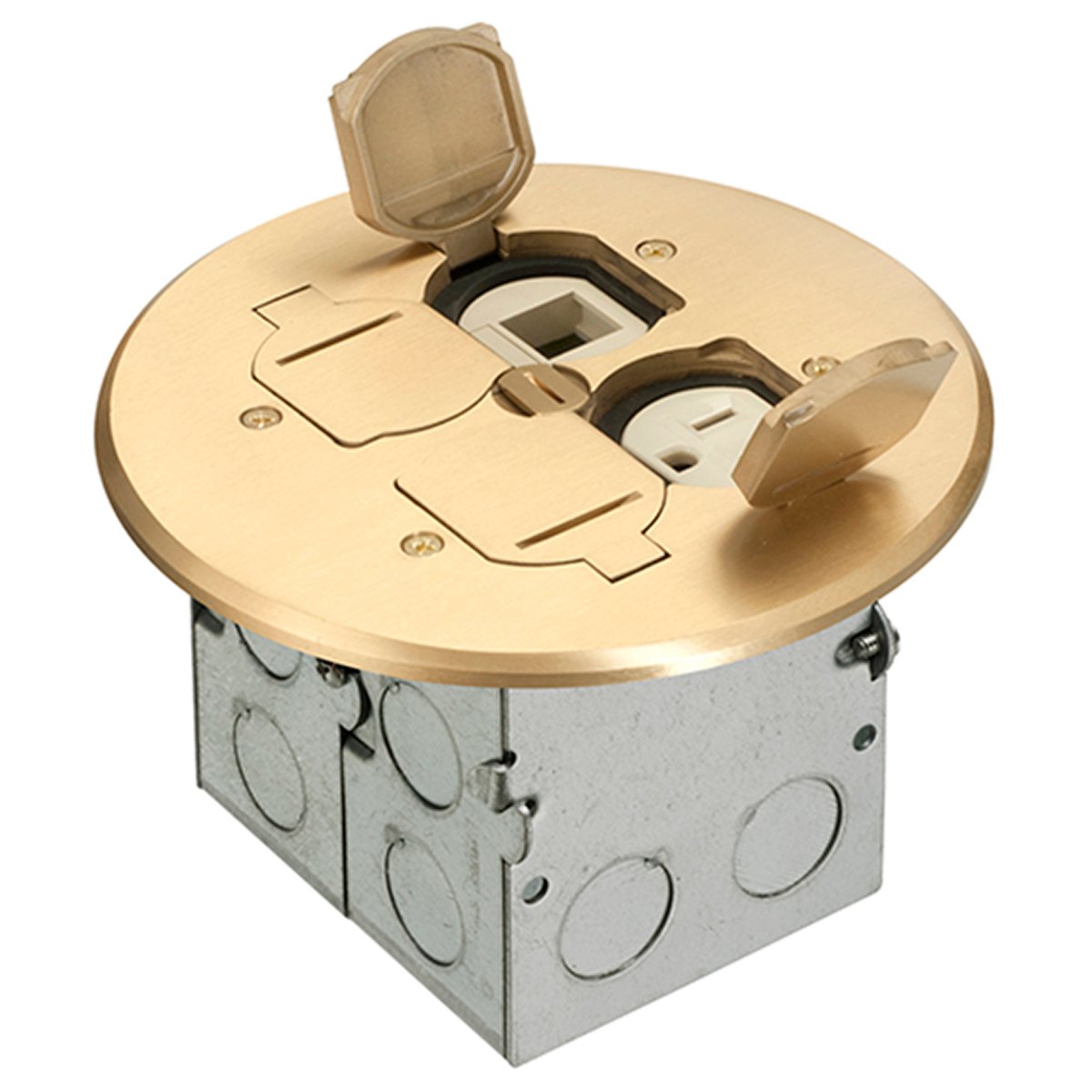

The ARLINGTON FLB6242MB is a combination floor box kit with an installed low voltage divider. It includes four flip lids and gasket, one low voltage device, and one 110V receptacle with a round brass cover. Designed for installing receptacles flush in new or existing floors, this kit offers multiple options for device setup.
- Easy way to install receptacles flush in a new or existing floor
- Designed for flexibility, these kits offer multiple options for the device setup
- Four flip lids prevent water intrusion and protect the box when it's not in-use
Product Highlights
Combination floor box kit with low voltage divider, flip lids, and 110V receptacle for versatile floor installations.
Product Information
Standard Information
-
Brand: ARLINGTON
-
Manufacturer Part Number: FLB6242MB
-
Country of Origin: China
Technical Specifications
-
Catalog Number: FLB6242MB
-
Manufacturer: Arlington Industries
-
Brand: Arlington
-
Country of Origin: China
-
Made in USA: No
-
Application: Old Work, New Work
-
Material: Brass/Plastic/Steel
-
Standard: CULUS
-
UPC: 018997228048
-
GTIN: 00018997228048
-
Length: 6.000000000000000
-
Length UOM: Inch
-
Width: 6.000000000000000
-
Width UOM: Inch
-
Height: 3.764000000000000
-
Height UOM: Inch
-
Size: L(6.000) x W(6.000) x H(3.764)
-
Diameter: 6 in
-
Mounting Type: Flush
-
Shape: Round
-
Type: Duplex Receptacle
-
Number of Gangs: 2
-

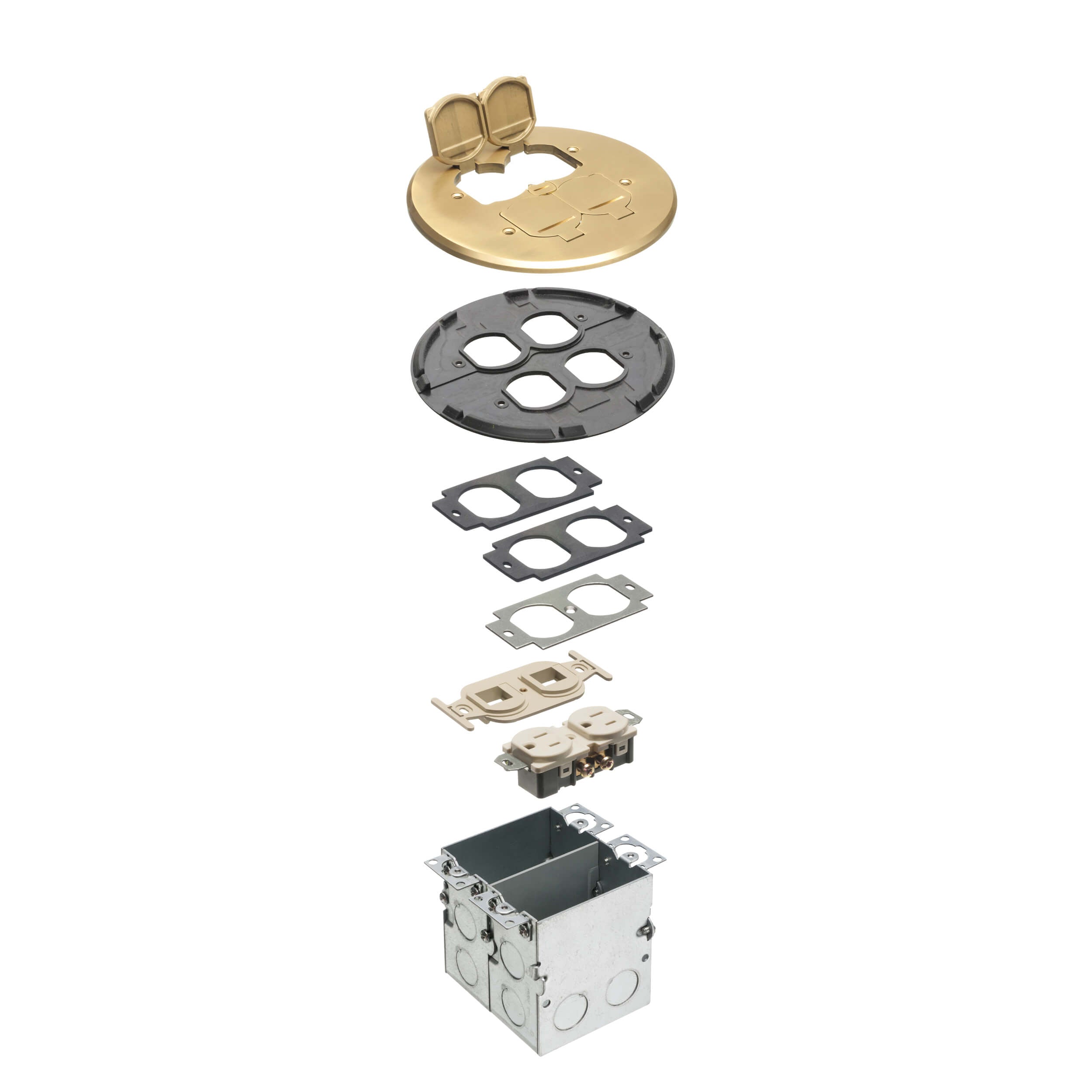

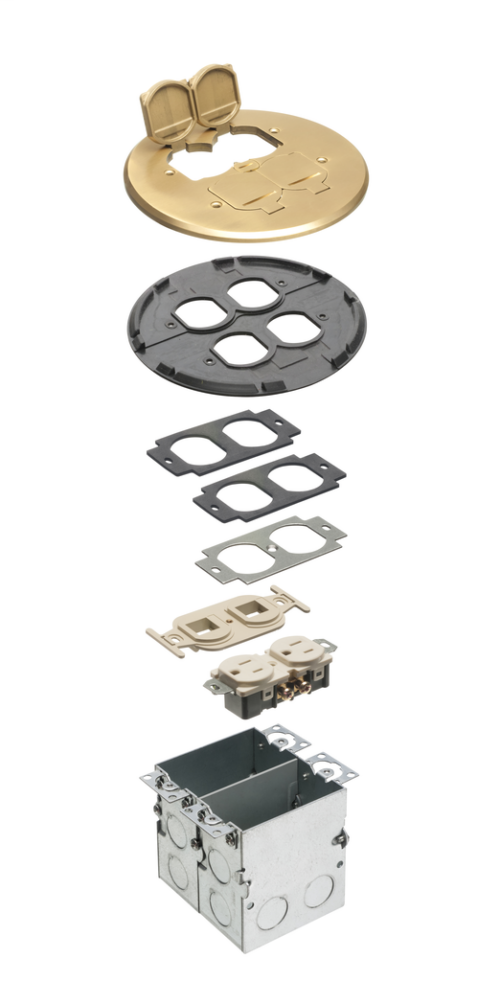

Includes: 2-Gang Steel Box, 6 in Round Brass Metal Cover with (4) Flip Lids, Assorted Gaskets, Low Voltage Divider and Low Voltage 110 VAC Tamper-Resistant Power Receptacle
-
Standards/Approvals: ECCN: EAR99|UL/cULus Listed
-
Product Type: Floor Box
-
Cover Plate Material: Brass
-
Voltage: 110v
-
Certificate: cUL/UL Listed
