ARLINGTON FBS407T Steel Pan Fan & Fixture Box 70lb Fan 200lb Fixture Rated 8.0 cu in

Product Description

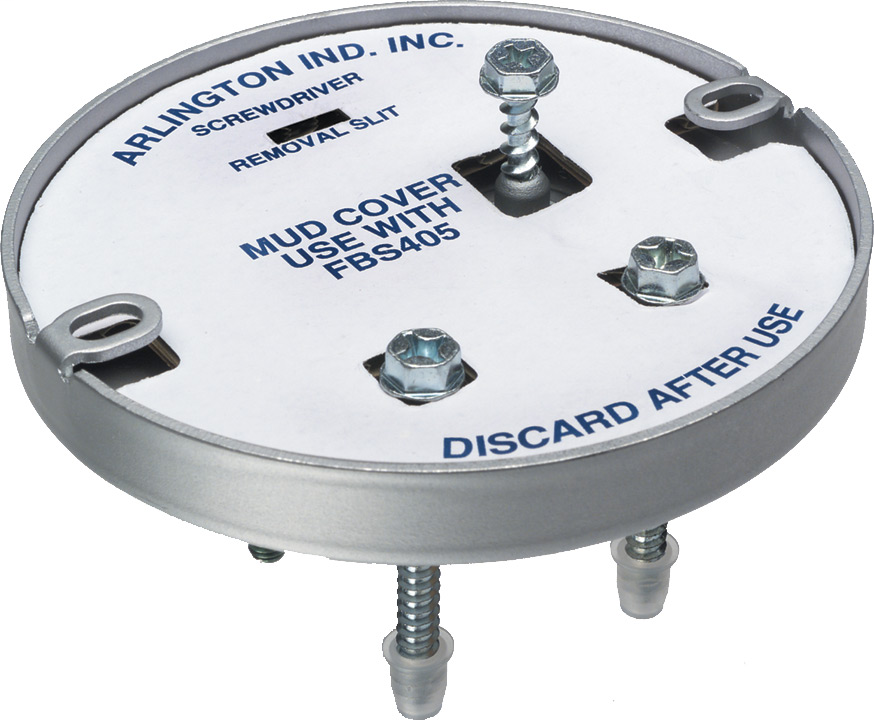

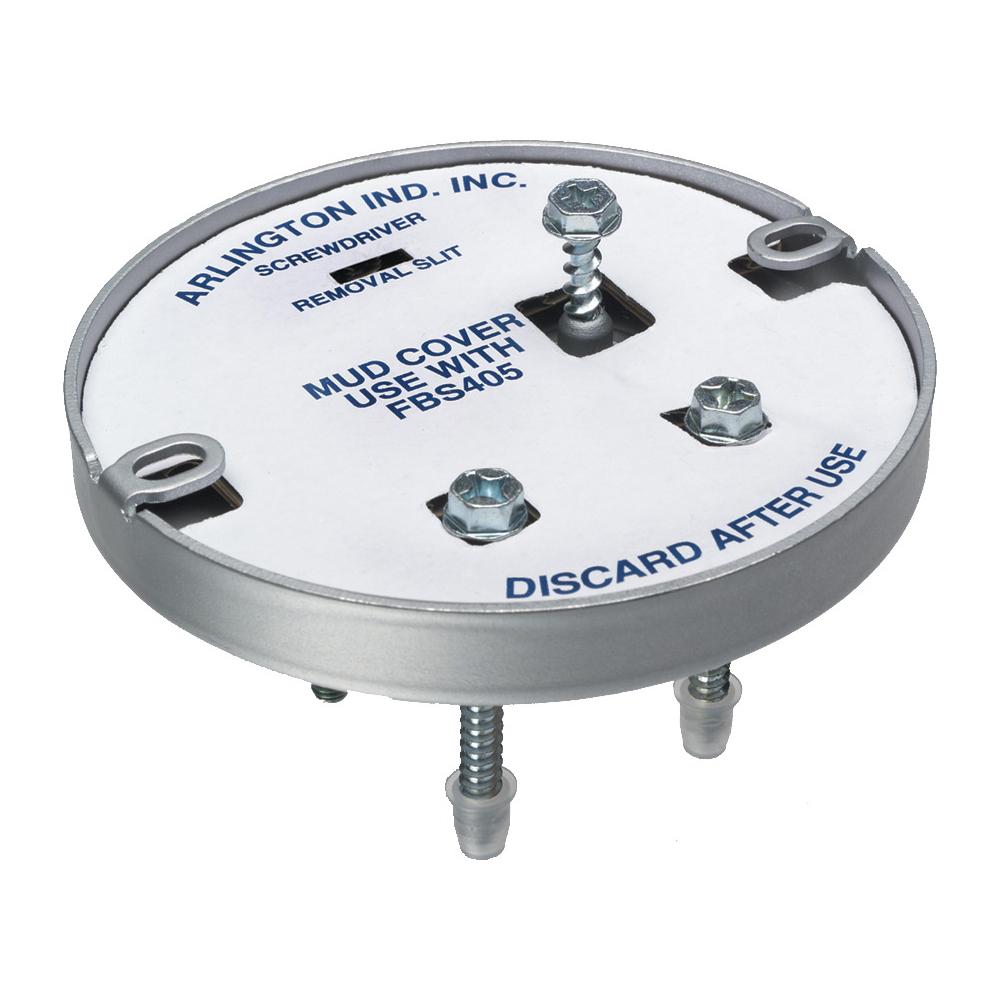

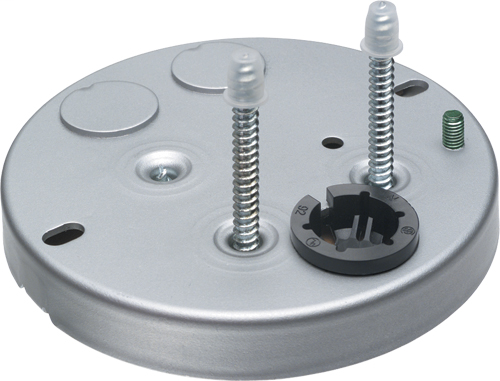

The Arlington FBS407T is a steel pan fan and fixture mounting box. This box can support a maximum fan load of seventy pounds and a fixture load of two hundred pounds. It is designed for installation on five-eighths inch drywall. The box has a capacity of eight cubic inches and includes a threaded machine screw bracket for secure mounting.

• Supports 70 lb fan and 200 lb fixture loads
• Designed for 5/8 inch drywall
• Includes mounting screws and installation bracket

Product Highlights

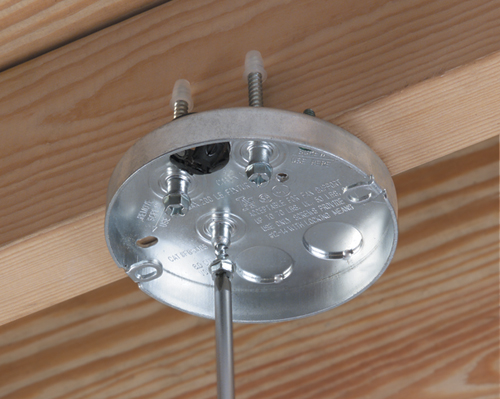

The steel construction ensures durability for both fan and fixture mounts. The design allows for easy installation to a joist, providing reliable support for lighting and fans.

Product Information

Standard Information

• Type: Accessory
• Material: Steel

Technical Specifications

• Catalog Number: FBS407T
• Weight: 0.550 lb
• Width: 4.250 in
• Height: 4-1/4 in
• Capacity: 8.0 cu in
• Color: Silver
• Mounting Type: Ceiling/Threaded
• UPC: 018997407009
