Arlington FBRS4200R Steel Fan and Fixture Box 20 cu-in Capacity 4 Knockouts

Product Description

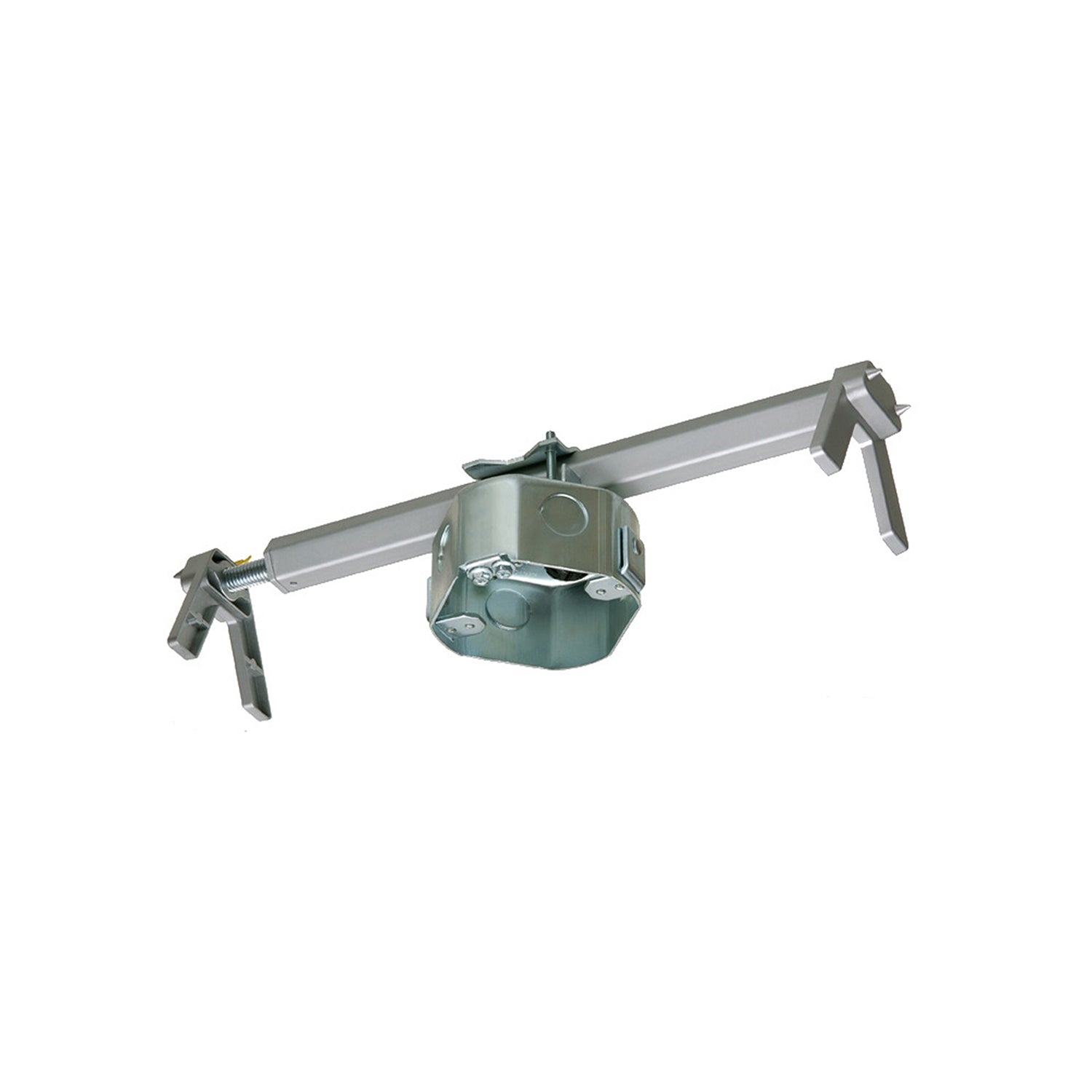

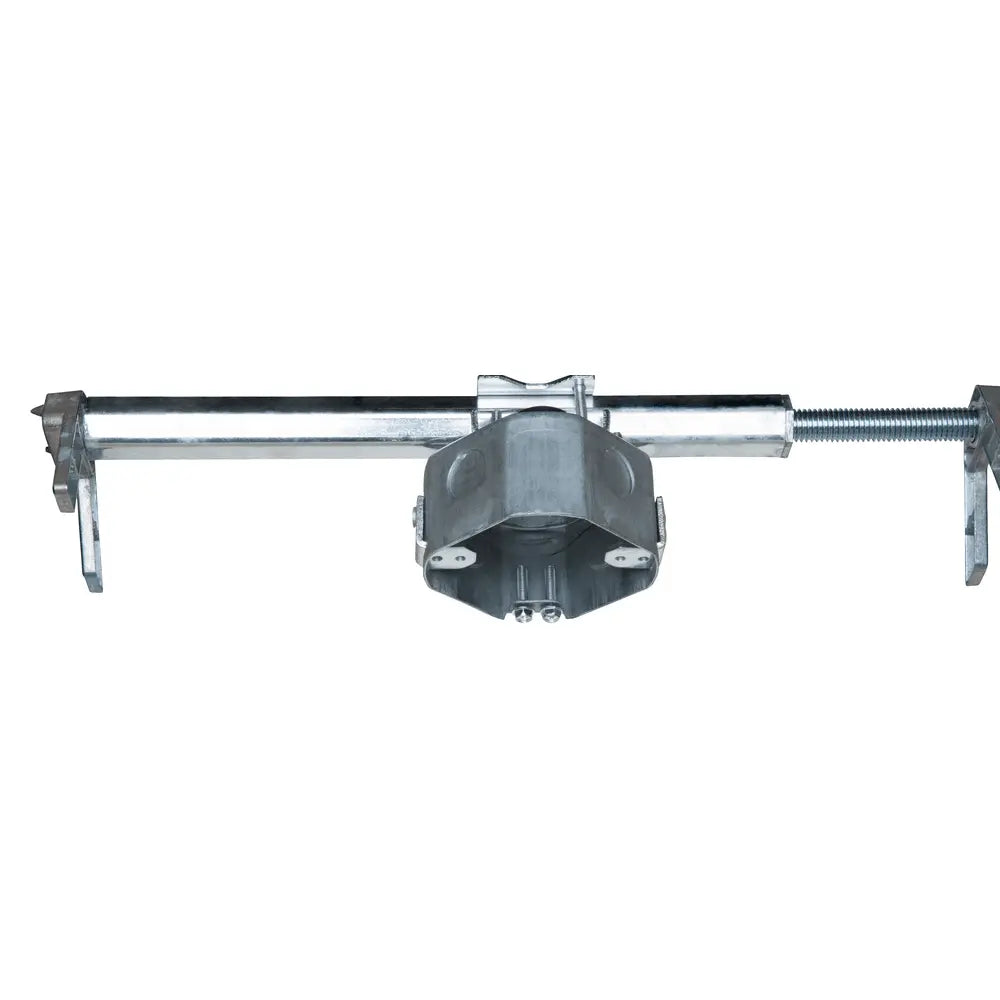

The Arlington FBRS4200R is a steel fan and fixture box designed for existing construction. This box comes with an adjustable mounting bracket that can accommodate joist spacing from sixteen to twenty-four inches. It features a depth of two inches and a cubic capacity of twenty cubic inches, making it suitable for a variety of installation scenarios.

• Constructed of durable steel with a plated finish
• Adjustable mounting bracket for easy installation
• Supports fixtures up to one hundred fifty pounds and fans up to seventy pounds on appropriately spaced joists

Product Highlights

This fan and fixture box is equipped with four knockouts and installation screws that are pre-parked to prevent loss during the installation process. The design supports fast installation in retrofit projects.

Product Information

Standard Information

• Manufacturer: Arlington
• Product Type: Ceiling Box

Technical Specifications

• Type: Heavy Duty
• Color: Silver
• Shape: Octagon
• Finish: Plated
• Material: Steel
• Cubic Capacity: 20 cu-in
• Knockout Size: 1/2 in
• Mounting Type: Ceiling
• Number of Knockouts: 4
• Dimensions: 3.563 in L x 13.979 in W x 3.438 in H
