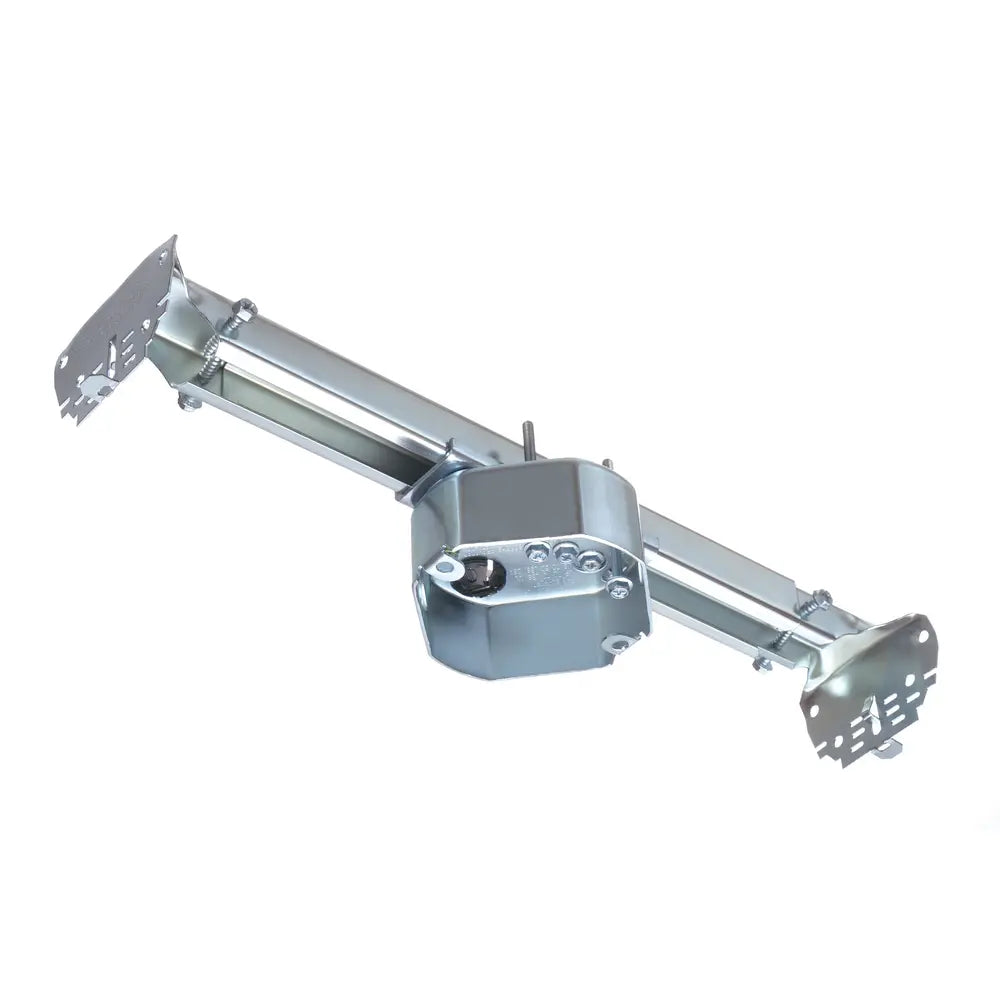

Arlington FBRS415 Steel Fan And Fixture Box With Adjustable Mounting Bracket

Product Description

The Arlington FBRS415 is a steel fan and fixture mounting box designed for new construction applications. It features an adjustable mounting bracket that allows for positioning from sixteen to twenty-four inches on center. The bracket is pre-set for half-inch ceiling thickness and has bend lines for modification to fit ceilings of three-quarters, one, or one and one-quarter inches depth. It offers a cubic capacity of fifteen point six cubic inches, suitable for accommodating multiple cable entries.

• Constructed from plated steel for durability.
• Includes four knockouts for cable entry.
• Suitable for ceilings with a thickness of up to one and one-quarter inches.

Product Highlights

This box simplifies installation with locator tabs for ease and pre-installed screws for fan or fixture mounts. It is rated to support seventy pounds for fans and ninety pounds for fixtures at twenty-four inches on center spacing, and seventy pounds for fans and one hundred fifty pounds for fixtures at sixteen inches on center spacing.

Product Information

Standard Information

• Type: Fan and Fixture Mounting Box
• Material: Steel

Technical Specifications

• Cubic Capacity: 15.6 cubic inches
• Knockouts: 4 (1/2 inch)
• Dimensions: 2.65 inches deep x 4 inches wide x 24 inches high
• Weight: 1.77 pounds
• Color: Silver
• Mounting Type: Flush/Threaded
• Approval: UL listed, CSA certified
