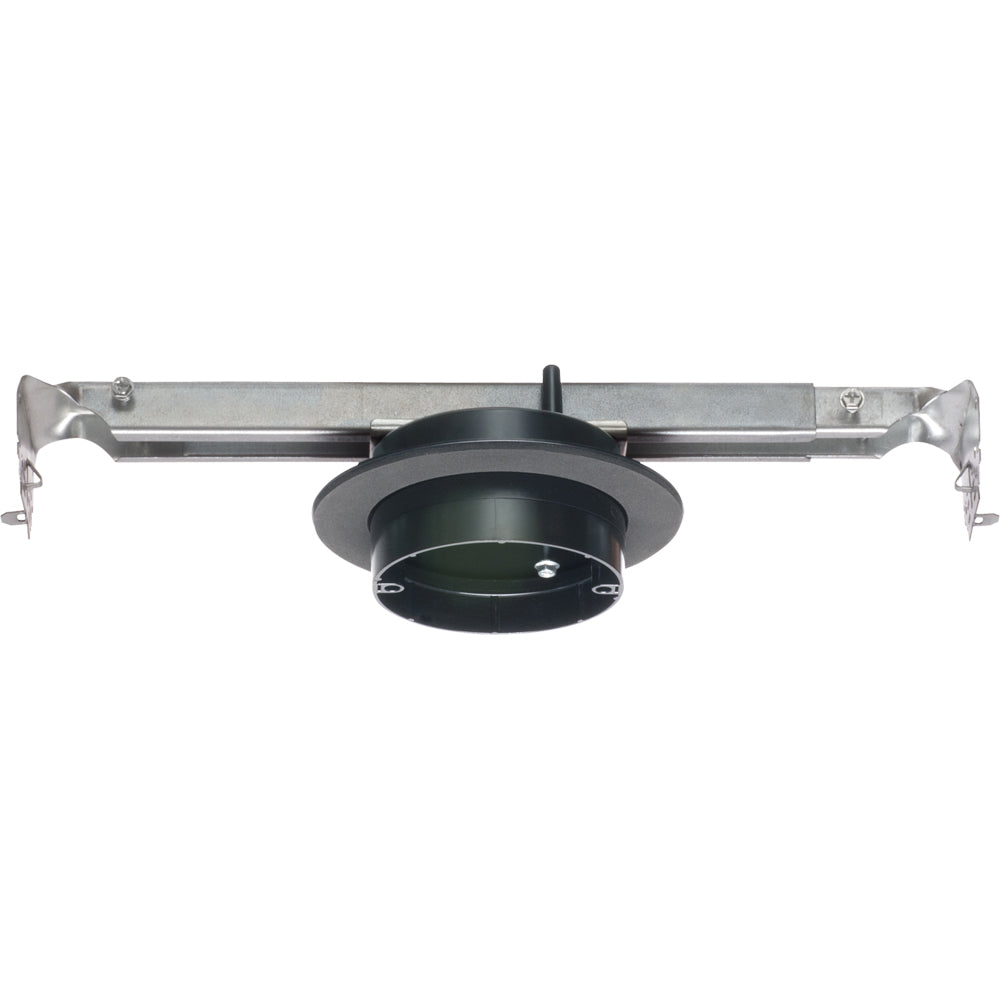

Arlington FBR415F Fan/Fixture Vapor Box (18.3 cu in)

Product Description

Arlington FBR415F is a plastic vapor box with an adjustable steel mounting bracket designed for fan and fixture installations in new construction. It provides 18.3 cubic inches of wiring capacity, a flange that forms a vapor barrier against air infiltration, and specified load ratings for fan and fixture support. The unit accepts 3-1/2 inch round fittings and measures 2.723 in L x 6.25 in W x 24.00 in H.

• Adjustable steel bracket for joist or stud mounting; flange forms a vapor barrier against air infiltration
• 18.3 cu in wiring capacity; accepts 3-1/2 in round fittings and threaded mounting
• Load ratings: 70 lb fan at 24 in on-center; 110 lb fan at 16 in on-center; 90 lb fixture at 24 in on-center; 150 lb fixture at 16 in on-center

Product Highlights

Non-conductive plastic vapor box with adjustable steel bracket, 18.3 cu in capacity, cULus standard, load rated for fans and fixtures.

Product Information

Standard Information

• Brand: ARLINGTON
• Manufacturer Part Number: FBR415F
• Country of Origin: United States

Technical Specifications

• Manufacturer Part Number: FBR415F
• Brand: Arlington
• Capacity: 18.3 cu in
• Material: Plastic, steel
• Mounting Type: Adjustable steel bracket / joist mount / threaded
• Shape: Round (accepts 3-1/2 in round fittings)
• Diameter: 3-1/2 in
• Dimensions: 2.723 in L x 6.25 in W x 24.00 in H
• Weight: 1.66 lb
• Country of Origin: United States
• UPC: 018997722041
• GTIN: 00018997722041
• Included Items: Captive fan/fixture bracket, installation screws, mud cover, NM cable connector
• Certifications: cULus
• Load Ratings (UL): 70 lb fan at 24 in on-center; 110 lb fan at 16 in on-center; 90 lb fixture at 24 in on-center; 150 lb fixture at 16 in on-center
• Load Ratings (CSA): 50 lb fan; 50 lb fixture
