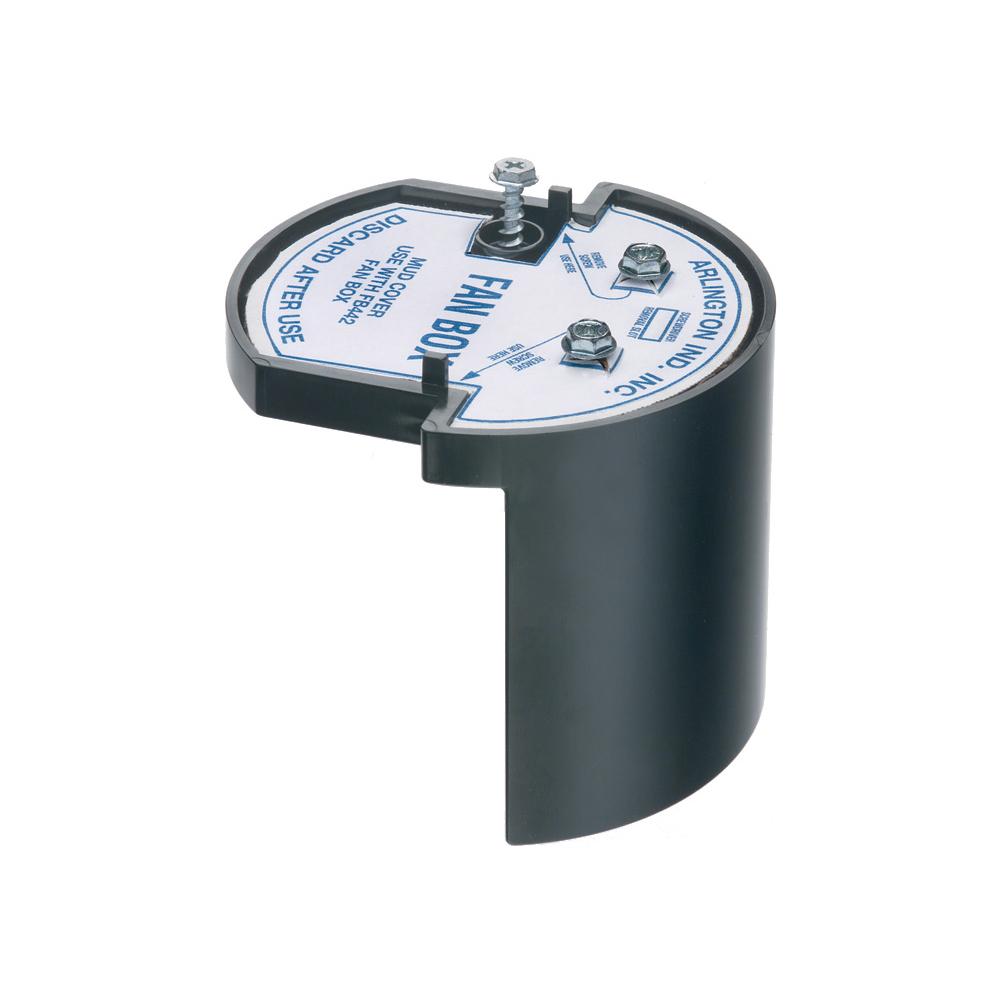

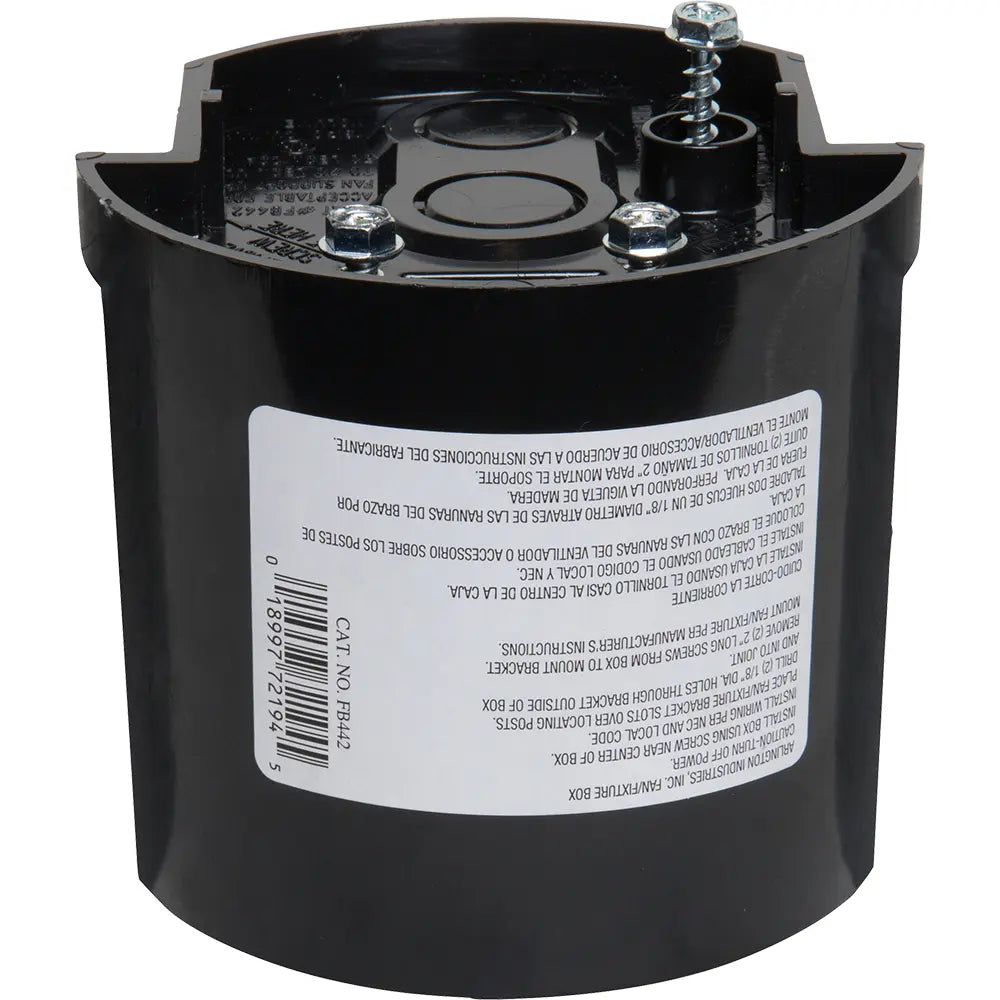

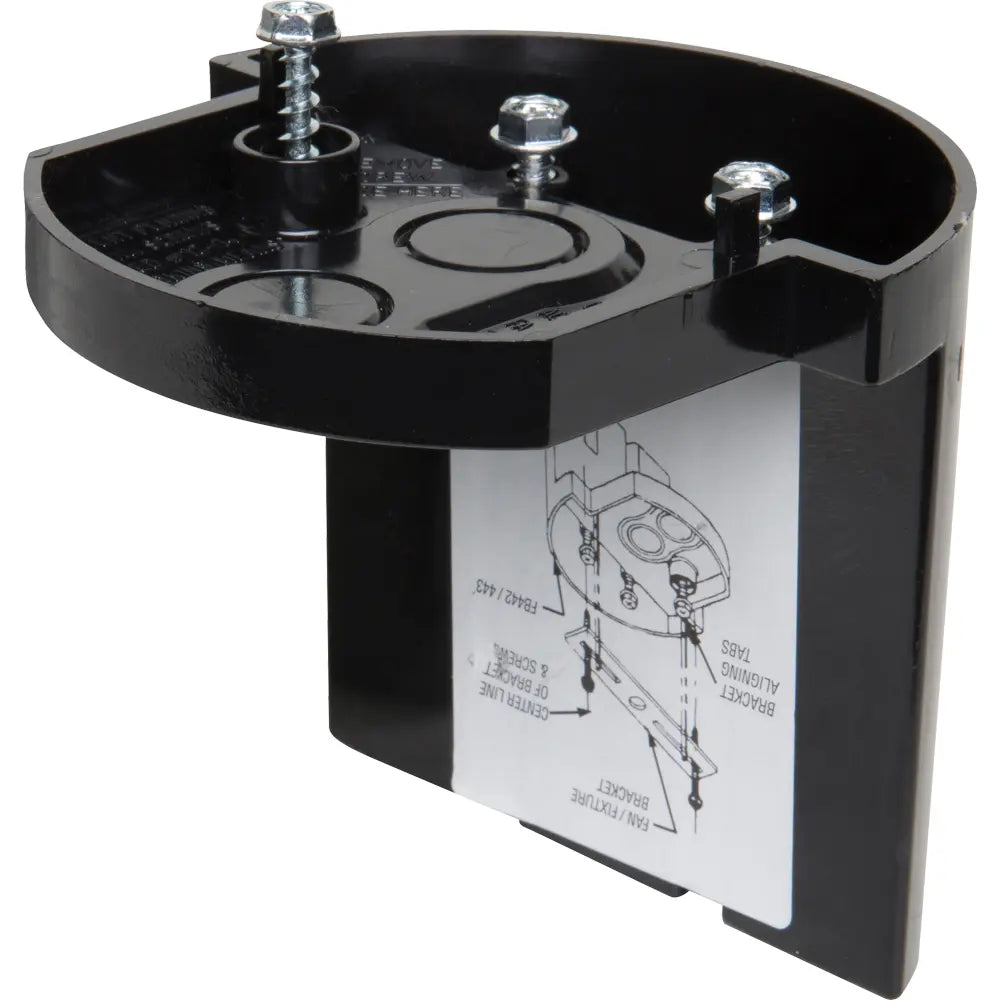

Arlington FB442 L-Shaped Fan and Fixture Mounting Box 70lb fan, 200lb fixture rated for 1/2 or 5/8 drywall

Product Description

The Arlington FB442 is a fan and fixture mounting box designed for secure installation in drywall. This box can support a ceiling fan weighing up to seventy pounds and a fixture loading of two hundred pounds. It is suitable for use with either half-inch or five-eighths-inch drywall. The box has a capacity of thirteen point four cubic inches and is rated for two hours of fire resistance.

• Designed for easy installation with a ready-to-tighten center screw.
• Includes installed NM cable connector and mud cover.
• Suitable for mounting on single or double joists with locator posts for proper positioning.

Product Highlights

This product is ideal for mounting fixtures securely and includes features that simplify installation.

Product Information

Standard Information

• Manufacturer: Arlington
• Color: Black

Technical Specifications

• Dimensions: Four point two five inches length, four point two three six inches width, three point seven seven three inches height
• Material: Plastic
• Cubic Capacity: Thirteen point four cubic inches
• Mounting Type: Threaded
• Standards: UL E170558, CSA LR49636
