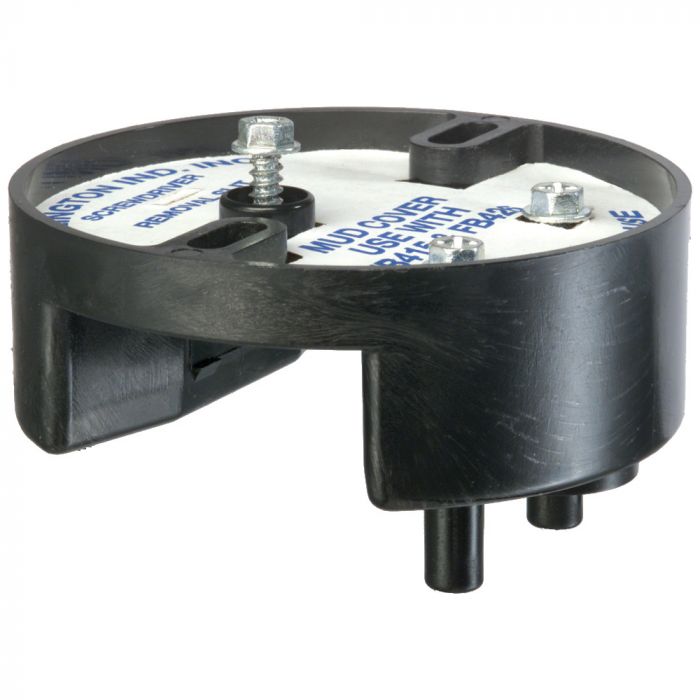

Arlington FB415 Press on Fan and Fixture Mounting Box. 70lb Fan, 200lb Fixture. 2 Hour Fire Rating. For 1/2 and 5/8 drywall. 10.3 cu.

Product Description

The Arlington FB415 is a mounting box designed for ceiling fans and fixtures. It has a capacity of 10.3 cubic inches and is suitable for use with half inch and five eighths inch drywall. This box can support up to seventy pounds for fans and two hundred pounds for fixtures, with a two-hour fire rating, ensuring safety in various applications.

• No loose parts to misplace, totally self-contained.
• UL rated for seventy-pound fan or two hundred-pound fixture.
• Fast and easy installation with secure attachment to joist or rafter.

Product Highlights

This box comes with a center screw for easy installation and a knock-out entry for cable connections. Ideal for residential and commercial lighting applications.

Product Information

Standard Information

• Manufacturer: Arlington Industries
• Part Number: FB415

Technical Specifications

• Color: Black
• Material: Plastic
• Capacity: 10.3 cubic inches
• Diameter: 4-1/4 inches
• Dimensions: 4-1/4 inches L x 4-1/4 inches W x 2-1/4 inches H
• Mounting Type: Joist/Press-On
• Fire Rating: 2 hours
• Application: For 1/2 inch or 5/8 inch drywall
