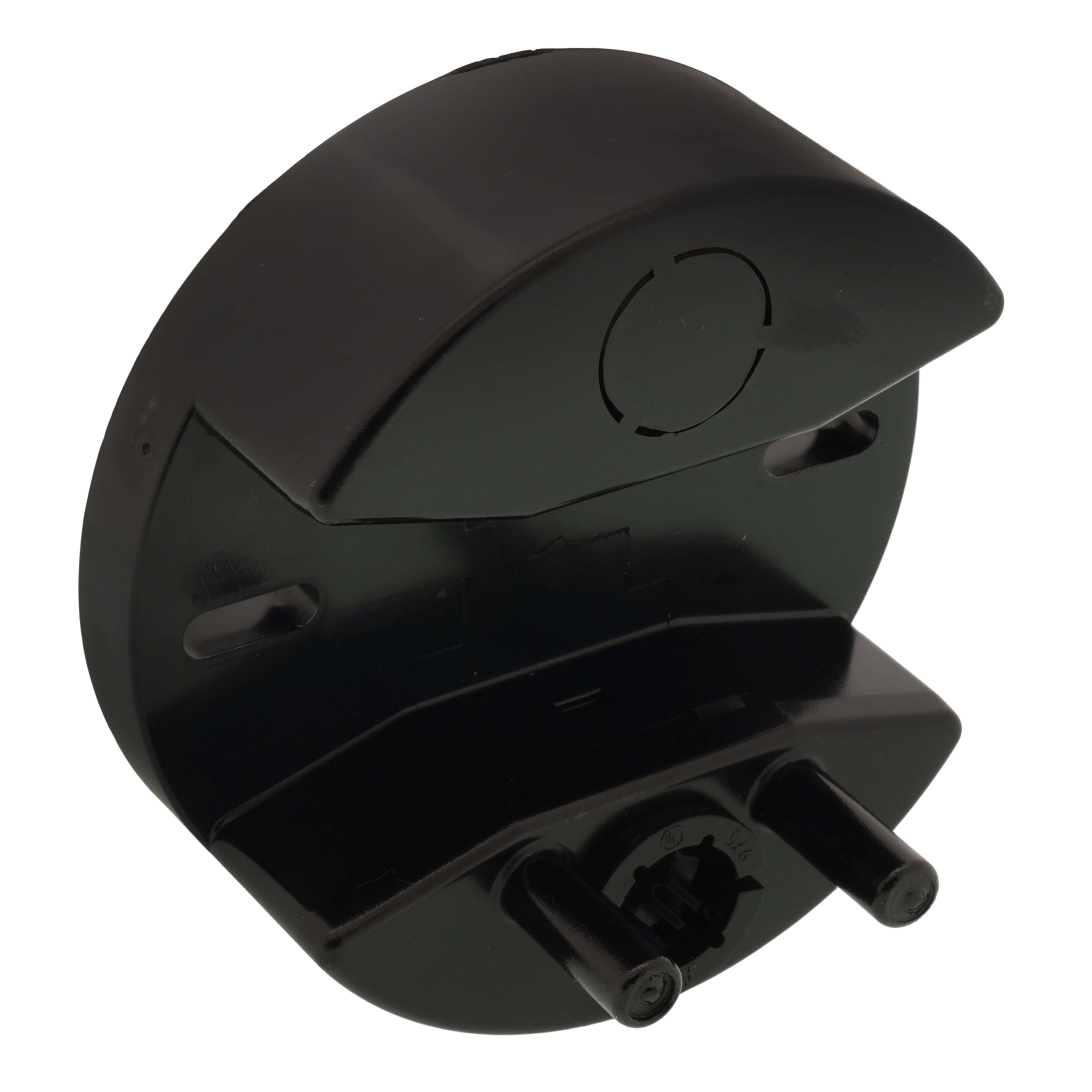

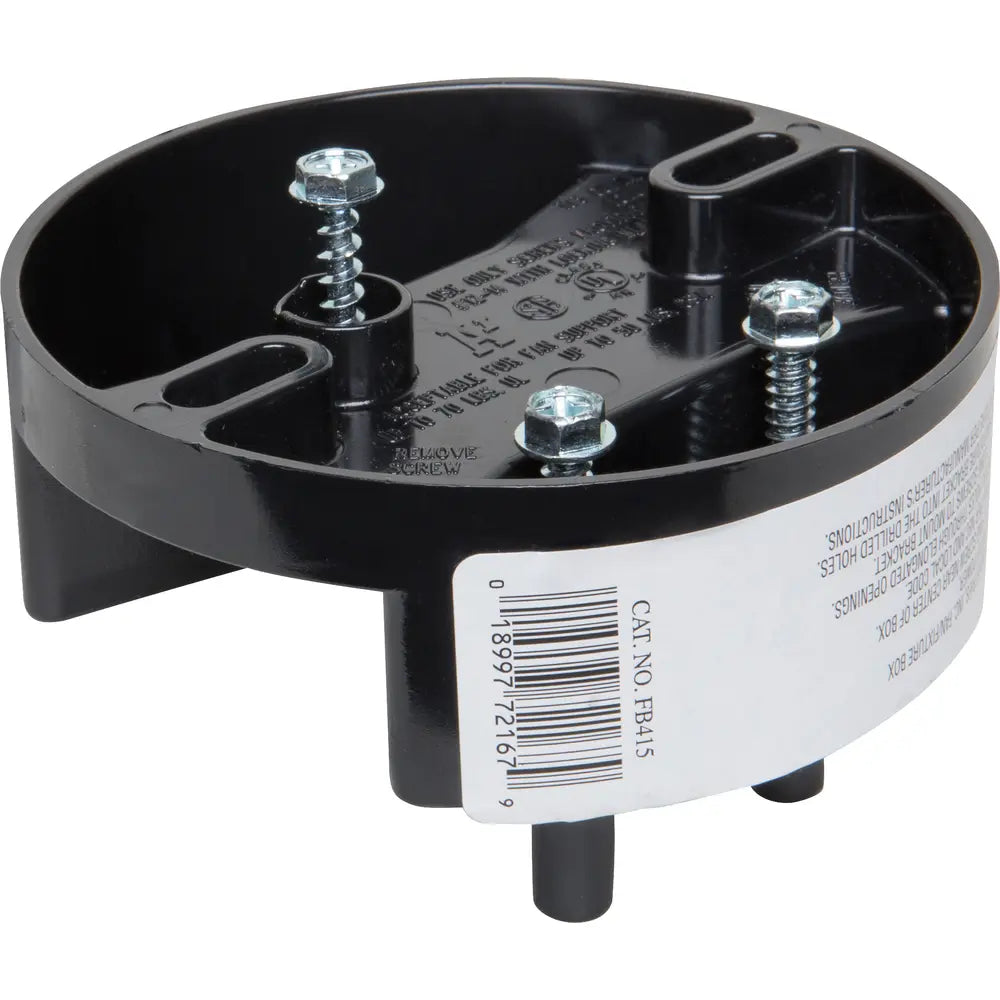

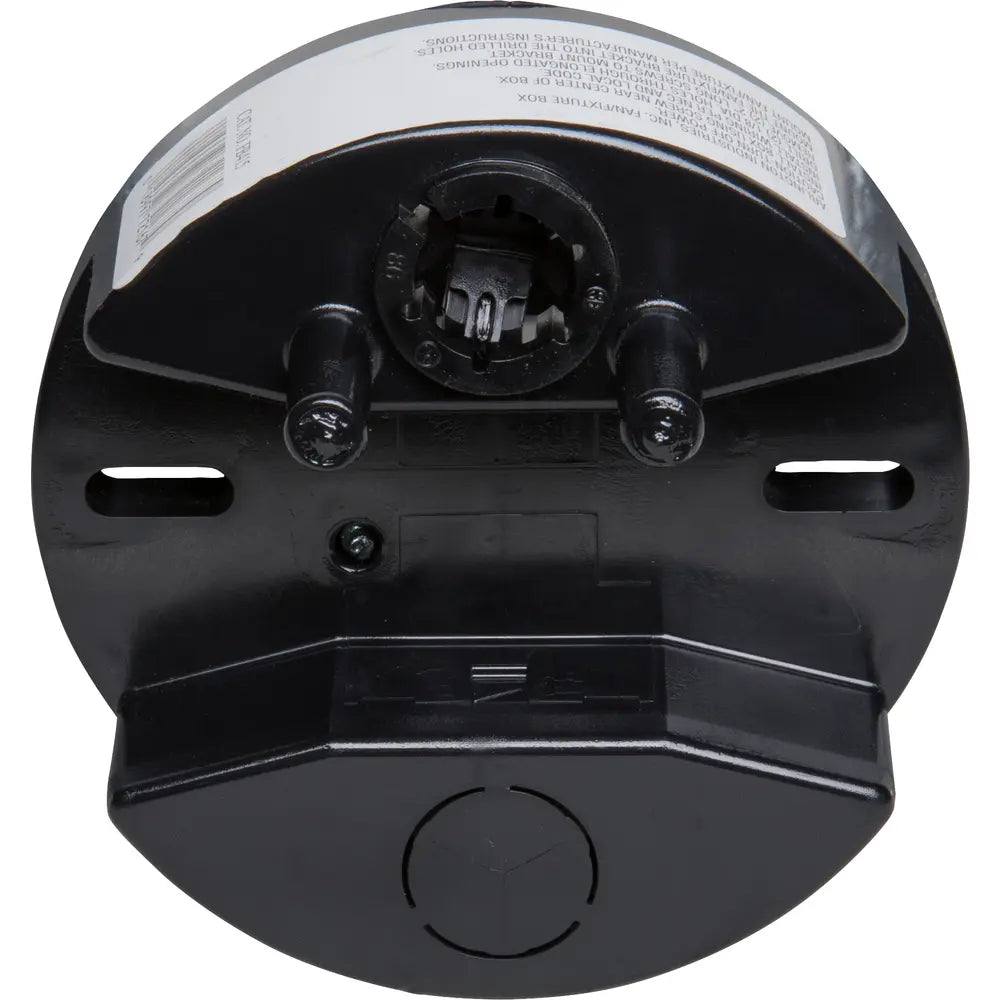

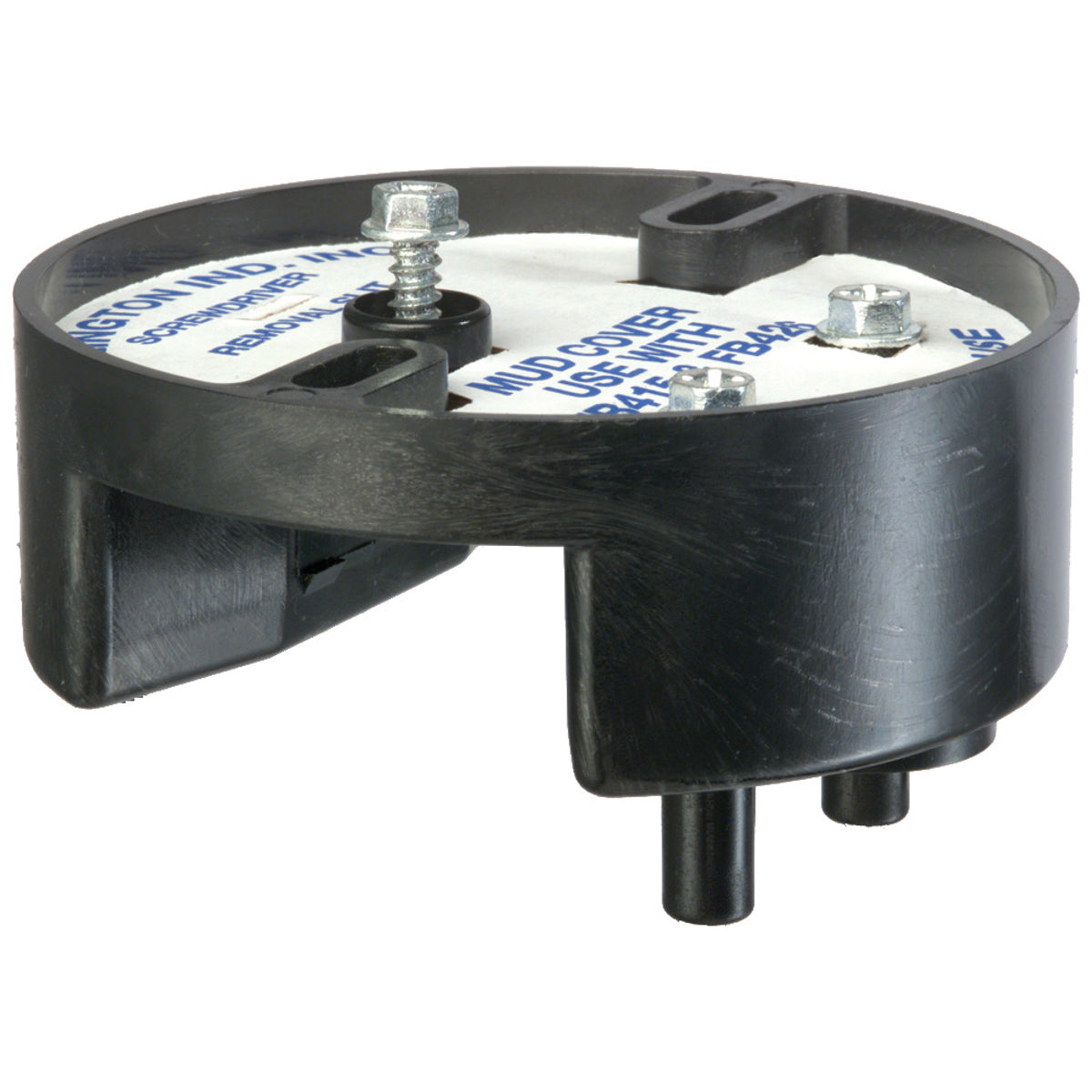

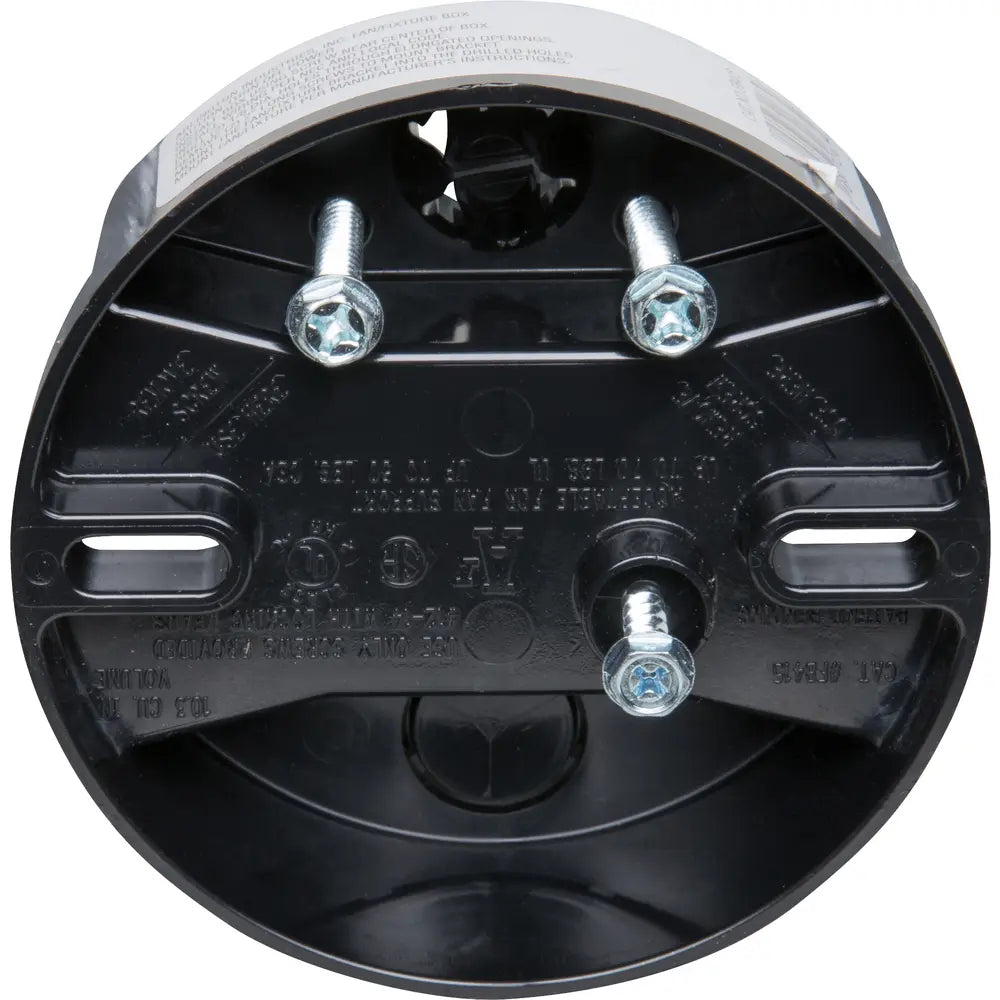

Arlington FB415 Box Mtg Fan/Fxtr Plstc 10.3Cu-In Ko Rnd

Product Description

The Arlington FB415 fan/fixture mounting box features a knockout cable entry and a round shape. With a capacity of 10.3 cu-in, this plastic box is designed for joist/press-on mounting. It measures 4-1/4 in L x 4-1/4 in W x 2-1/4 in H and includes a center screw for secure installation.

• Self-contained design with no loose parts
• UL rated for 70 lb fan or 200 lb fixture; CSA rated for 50 lb fan fixture
• Features a 2-hour fire rating

Product Highlights

Arlington FB415 offers fast, easy, and secure attachment to joists or rafters for fan and fixture mounting.

Product Information

Standard Information

• Brand: ARLINGTON
• Manufacturer Part Number: FB415
• Country of Origin: US

Technical Specifications

• Color: Black
• Shape: Round
• Capacity: 10.3 cu-in
• Diameter: 4-1/4 in
• Manufacturer: ARLINGTON
• Mounting Type: Joist/Press-On
• Cable Entry Size: Knockout
• Material: Plastic
• Mounting: Screw
• Standard: UL, CSA
• Insulated: No
• Application: Fan or Fixture
• Includes: Center Screw
• Series: FB
• Vendor SKU: FB415
• Part Number: FB415
• Fan Load: 70lb
• Fixture Load: 200lb
• Fire Rating: 2 Hour
• Drywall Thickness: For 1/2" and 5/8" drywall
