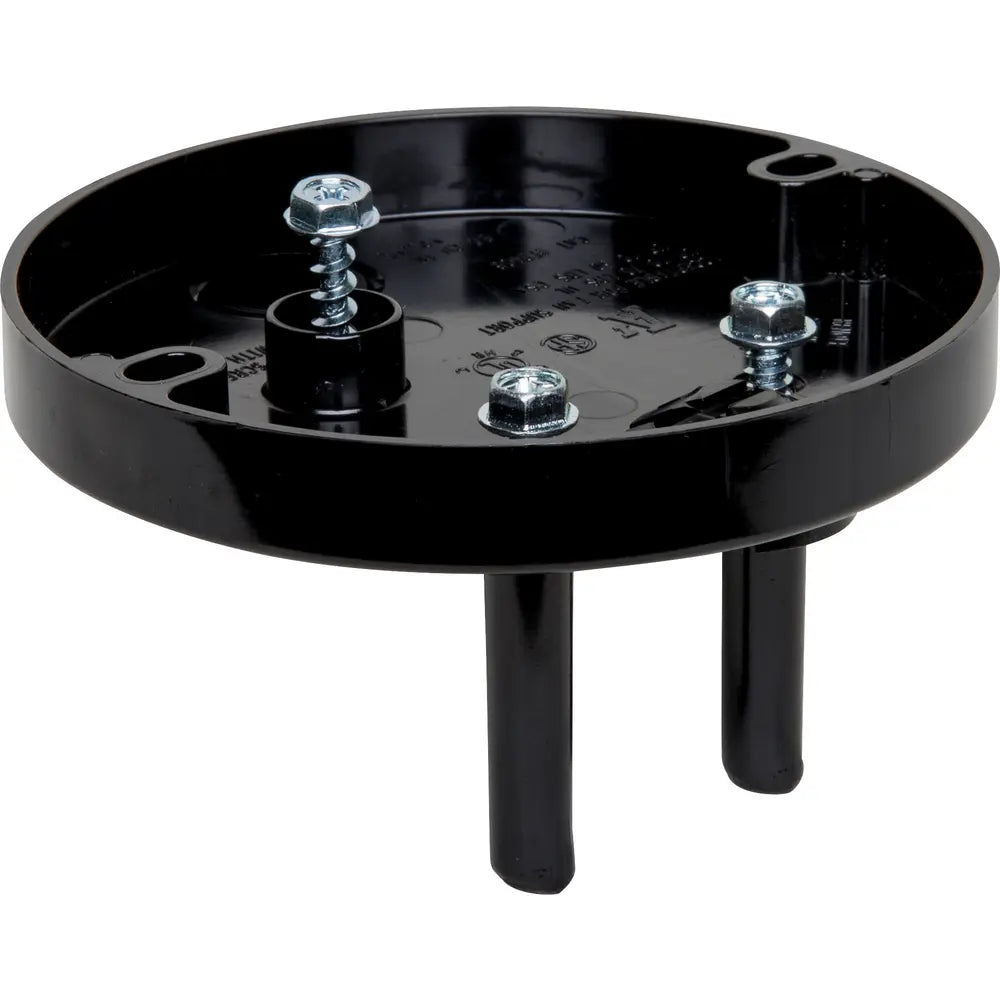

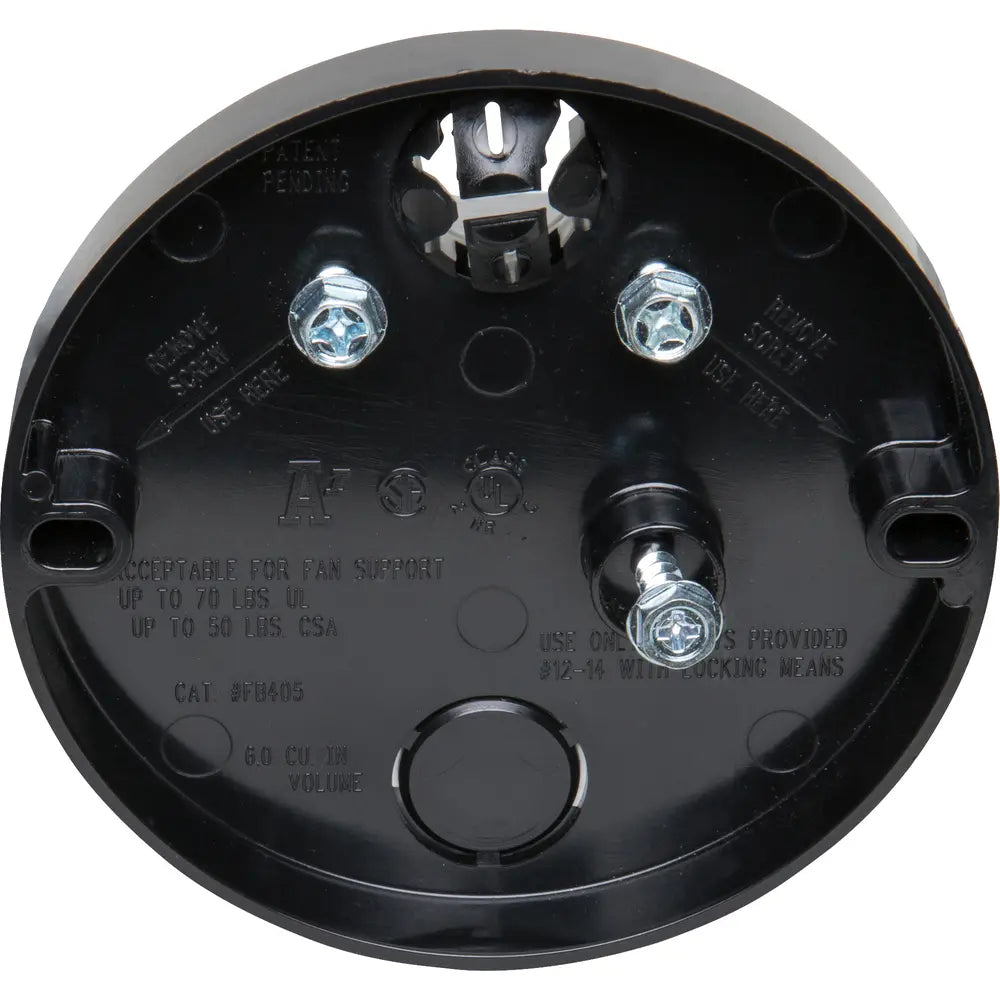

Arlington FB405 Pan Ceiling Fan/Fixture Mounting Box 4.25 Inch x 2.315 Inch 6 Cubic-Inch

Product Description

The Arlington FB405 is a pan ceiling fan and fixture mounting box with dimensions of 4.25 inches x 2.315 inches and a 6 cubic-inch capacity. It is designed for exhausting and provides a secure mounting solution for ceiling fans and light fixtures.

• Self-contained unit with no loose parts
• UL rated for 70 lb fan or 200 lb fixture and CSA rated for 50 lb fan fixture
• Features a 2-hour fire rating

Product Highlights

Arlington's FB405 mounting box ensures secure and reliable installation of ceiling fans and fixtures, suitable for residential and commercial applications.

Product Information

Standard Information

• Brand: ARLINGTON
• Manufacturer Part Number: FB405
• Country of Origin: US

Technical Specifications

• Style: Compact
• Finish Type: Polished
• Shape: Round
• Capacity: 6 cu-in
• Diameter: 4-1/4 in
• Manufacturer: ARLINGTON
• Mounting Type: Joist
• UL Listed for fan: 70lb
• UL Listed for fixture: 200lb
• CSA Listed for fan: 50lb
• CSA Listed for fixture: 50lb
• Fire Rating: 2 Hour
• Drywall Compatibility: 1/2" or 5/8"
• Cubic Inches: 6.0 cu. in.
• Load Rating: UL Rated: 70lb Fan; 200lb FixtureCSA Rated: 50lb Fan; 50lb Fixture
• Material(s): Plastic
• Trade Size: For 1/2" or 5/8" drywall6.0 cubic inches
• Height: 2.315"
• Width: 4.250"
• Application: Fan or Fixture
• Includes: (1) Ready-to-Tighten Center Screw, (1) Installed NM Cable Connector, (1) Mud Cover and (2) Screws
• Standards/Approvals: CSA File No. LR49636|UL File No. E170558
• Series: FB
• Brand: Arlington
• Features & Benefits: No loose parts to misplace totally self-contained Fan/fixture installation screws are "parked" ready for easy fan/fixture bracket installation Works well on double joists or wood I-beams Combination hex/Phillips head screws for easy installation with power screwdrivers 2-hour fire rating For 1/2 in or 5/8 in drywall
• Type: Non-Metallic Ceiling Boxes
• Mounting: Screw
• Standard: UL, CSA
• Insulated: No
• Cubic Capacity: 6 Cubic Inches
• Box Capacity: 6 cu. in.
• Box Depth: 2.315 in.
• Material: Non-Metallic
• Special Features: No loose parts to misplace - totally self-contained
• Item Type: Fan And Fixture Mounting Box
• Color Family: Black
• Recommended Uses For Product: Exhausting
• Mfg Standards/Approvals: CSA File No. LR49636|UL File No. E170558
