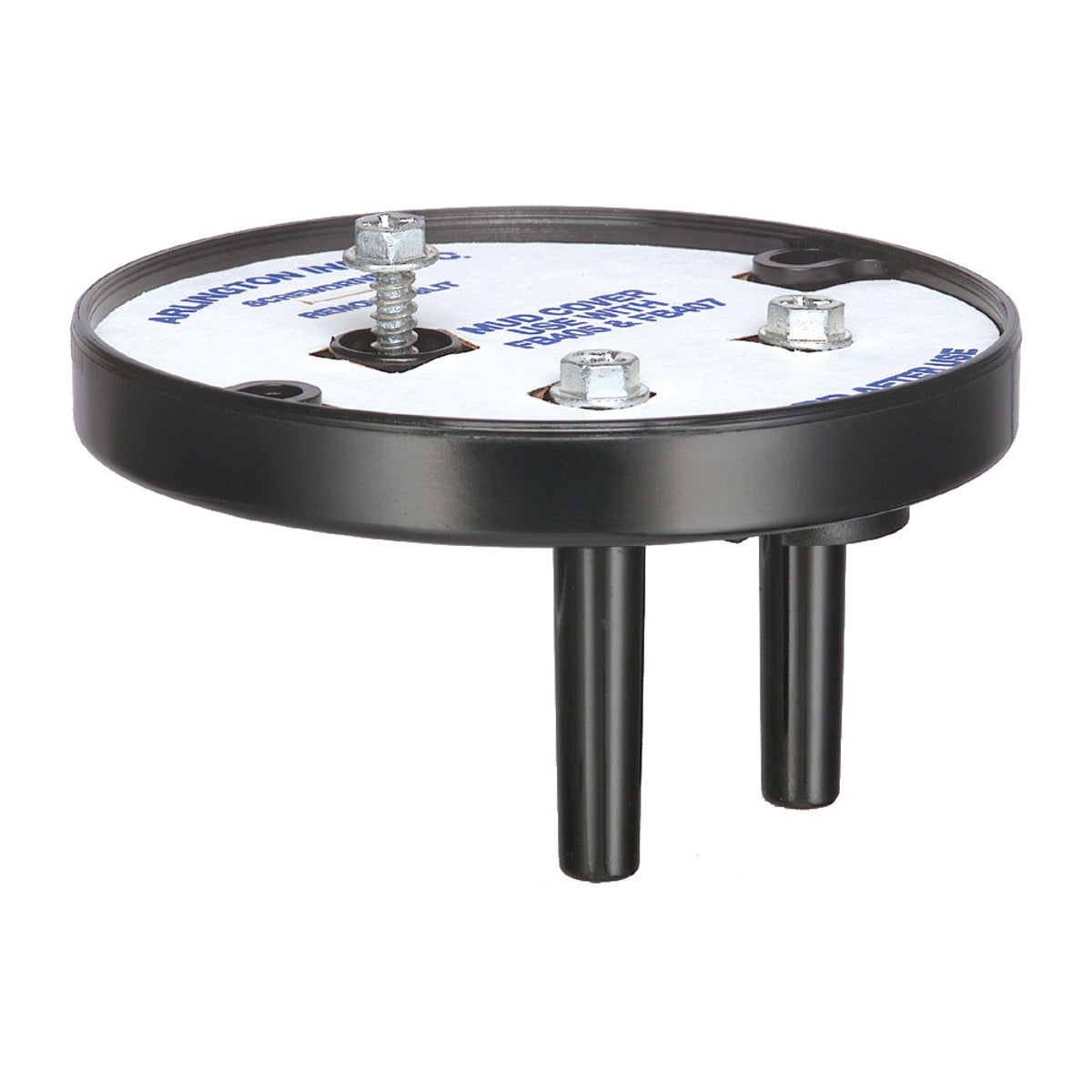

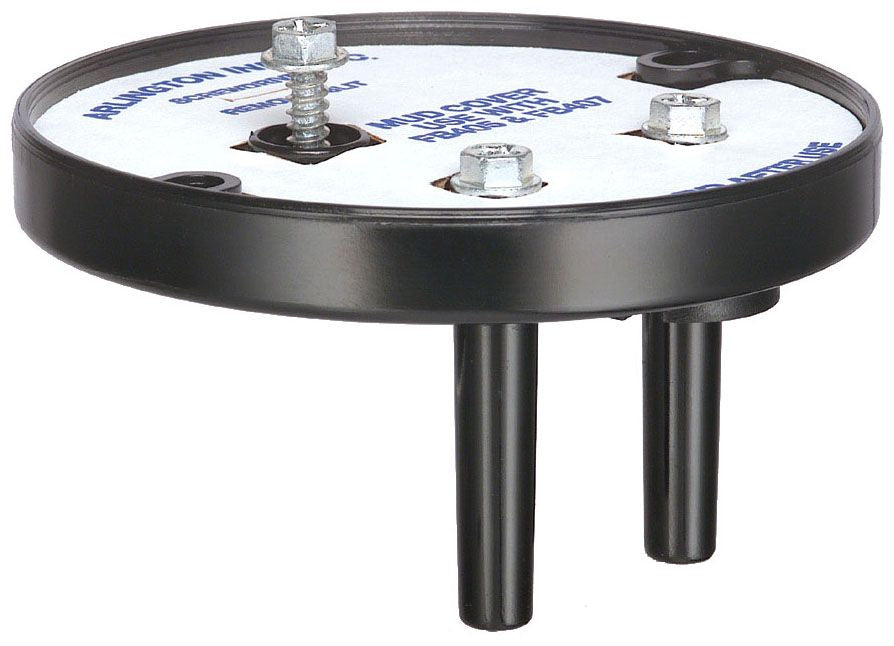

Arlington FB405 fan/fixture mounting box with knockout 6 cu-in

Product Description

The Arlington FB405 fan/fixture mounting box features a knockout and a 6 cu-in capacity. Designed for use with 1/2 in/5/8 in drywall, it includes a ready-to-tighten center screw, an installed NM cable connector, a mud cover, and two screws. It is UL rated for 70 lb fan or 200 lb fixture and CSA rated for 50 lb fan fixture.

• Self-contained unit with no loose parts
• UL rated for 70 lb fan or 200 lb fixture; CSA rated for 50 lb fan fixture
• 2 hr fire rating

Product Highlights

The Arlington FB405 is a self-contained mounting box for fans and fixtures, offering easy installation and high load capacity.

Product Information

Standard Information

• Brand: ARLINGTON
• Manufacturer Part Number: FB405
• Country of Origin: US

Technical Specifications

• Application: For 1/2 in/5/8 in drywall
• Capacity: 6 cu-in
• Color: Black
• Country of Origin: US
• Diameter: 4-1/4 in
• Includes: (1) Ready-to-Tighten Center Screw, (1) Installed NM Cable Connector, (1) Mud Cover and (2) Screws
• Material: Plastic
• Mfg Standards/Approvals: CSA File No. LR49636|UL File No. E170558
• Mounting Type: Joist
• Shape: Round
• Standard: UL and CSA
• Special Features: No loose parts to misplace - totally self-contained
