Arlington F101H Non-Metallic Outlet Box 1 Gang

Product Description

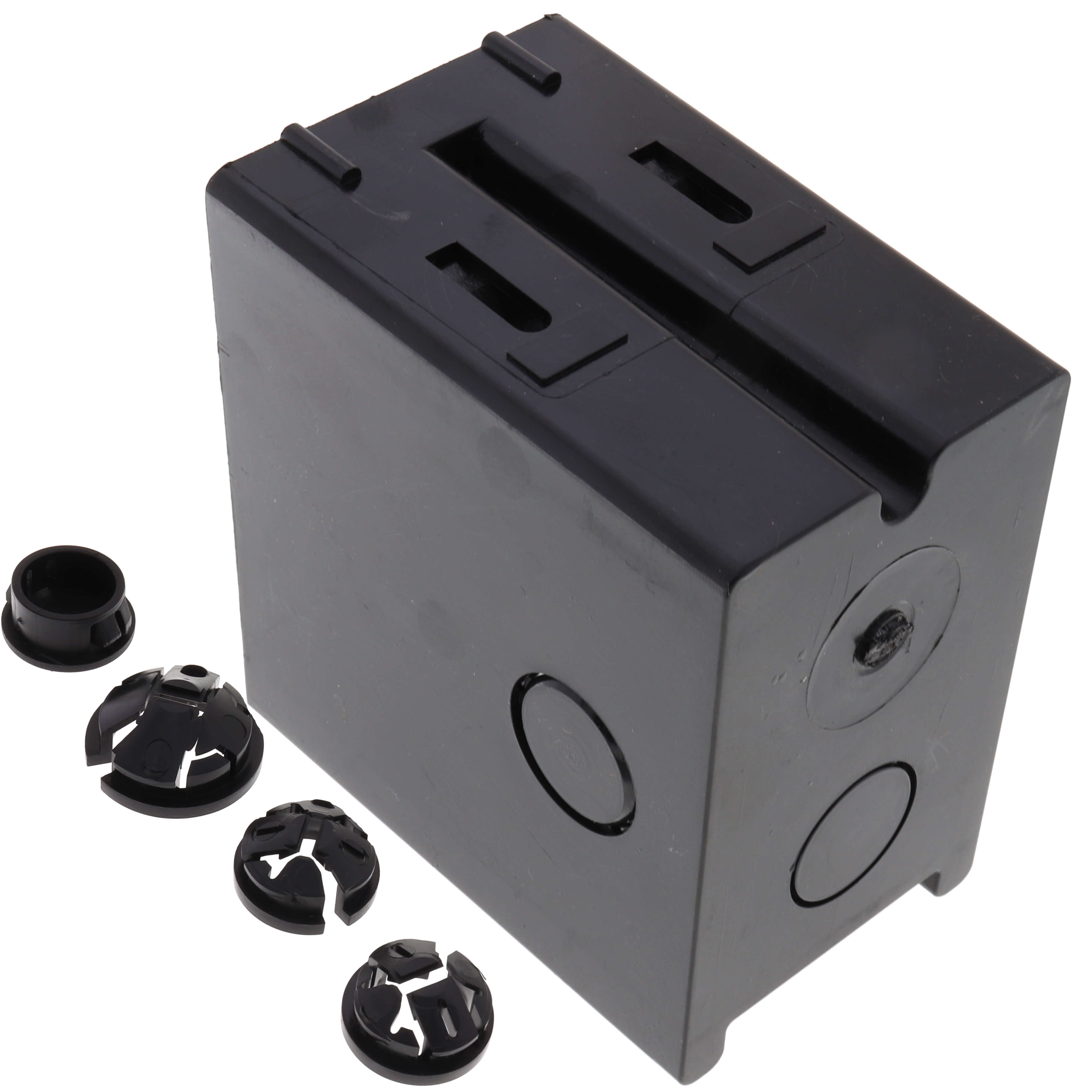

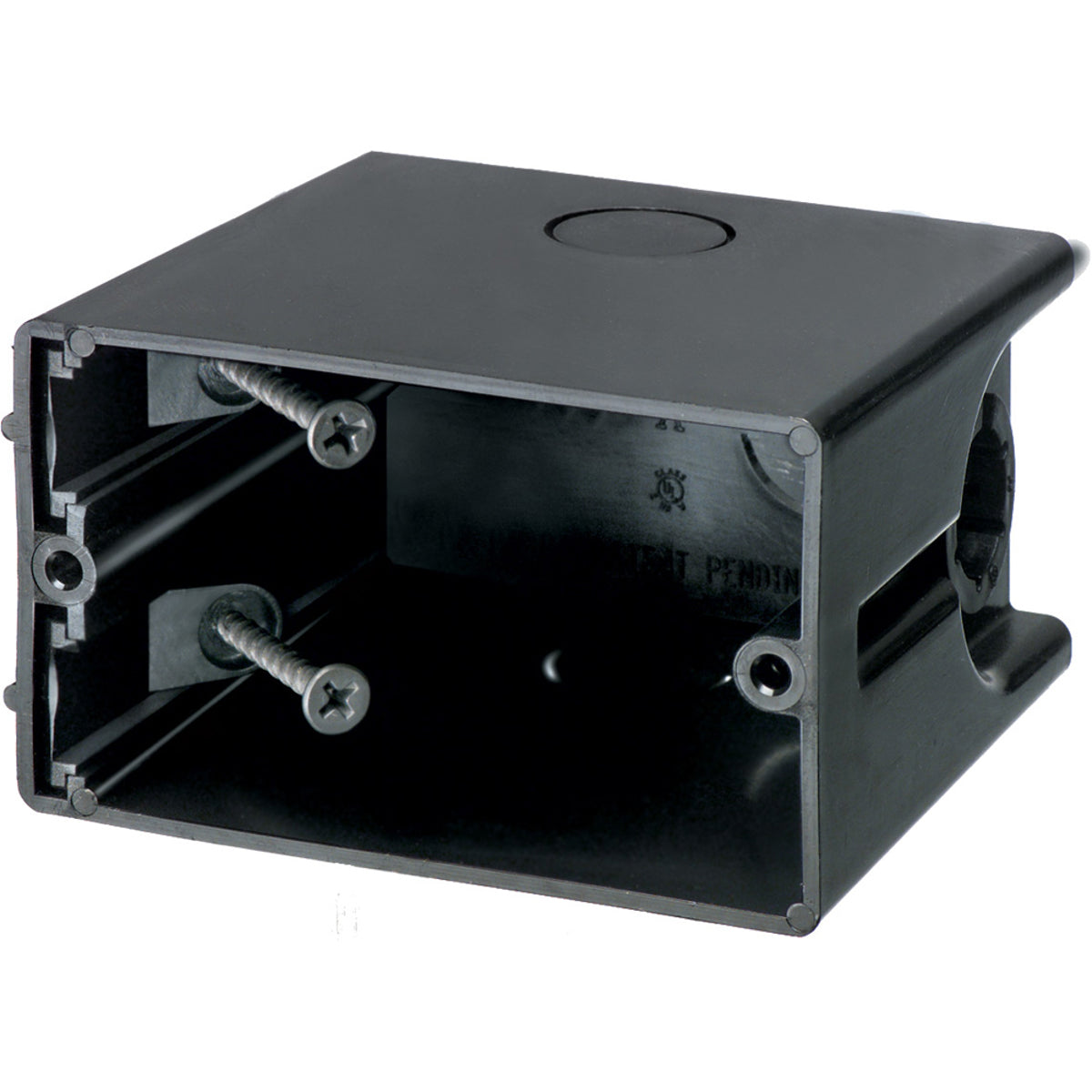

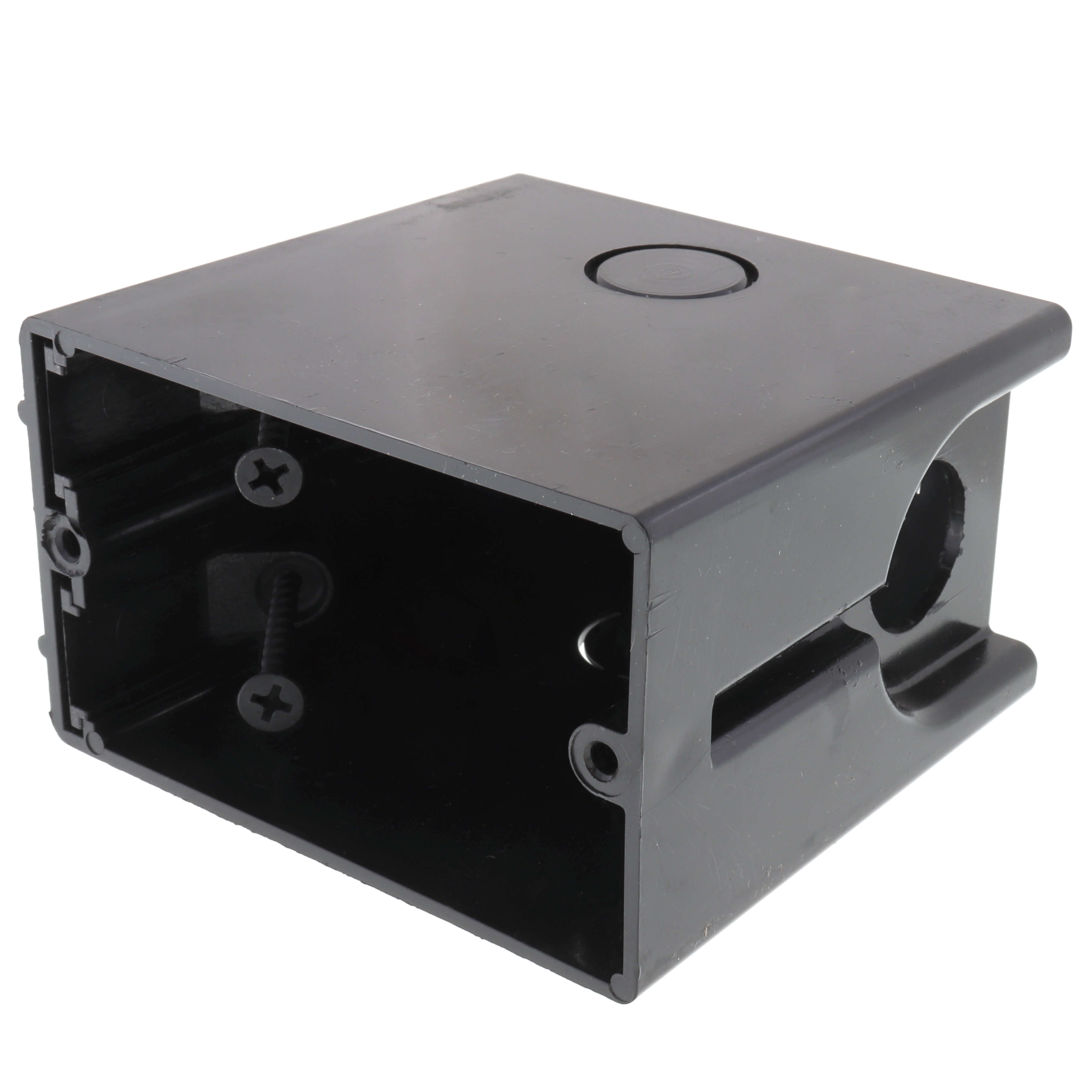

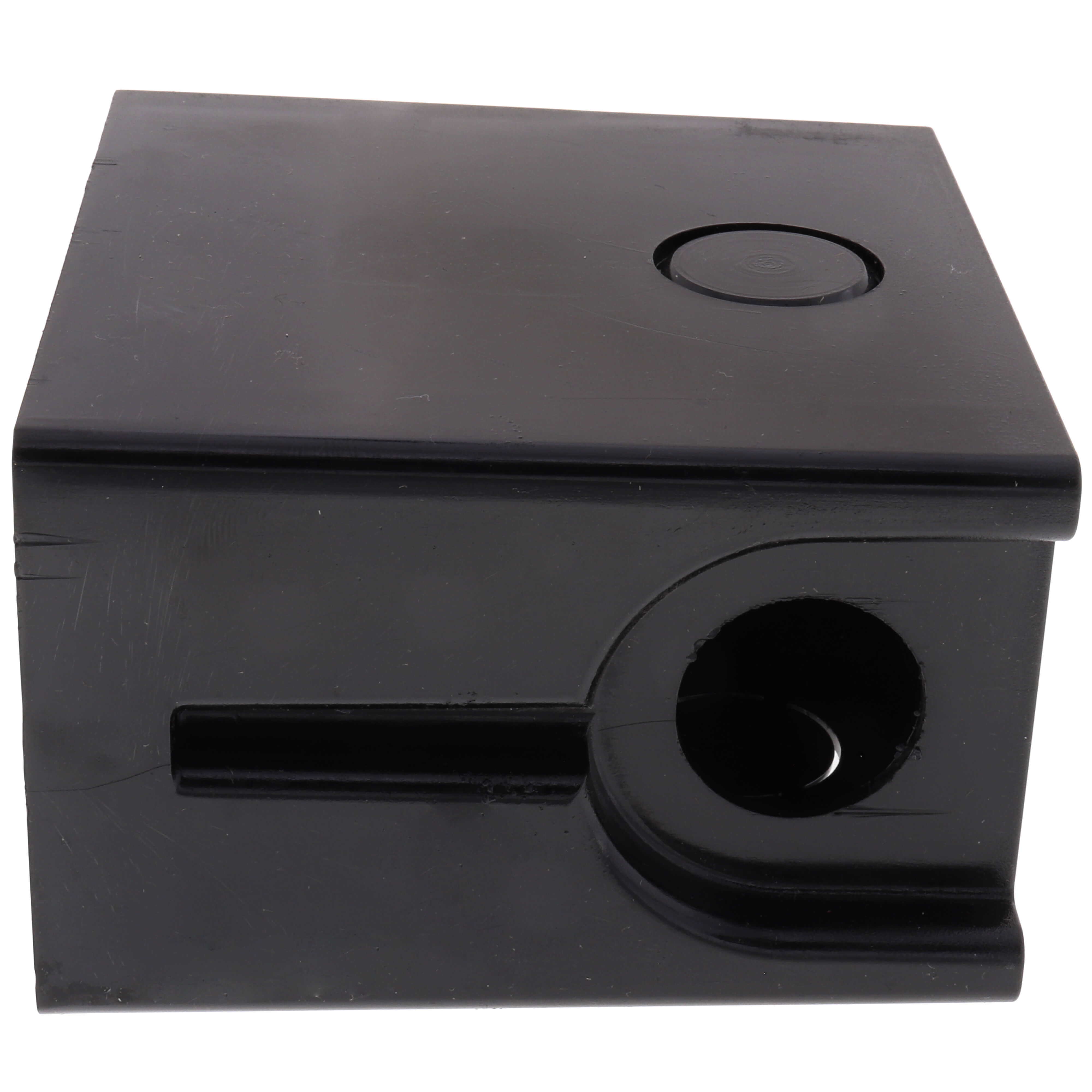

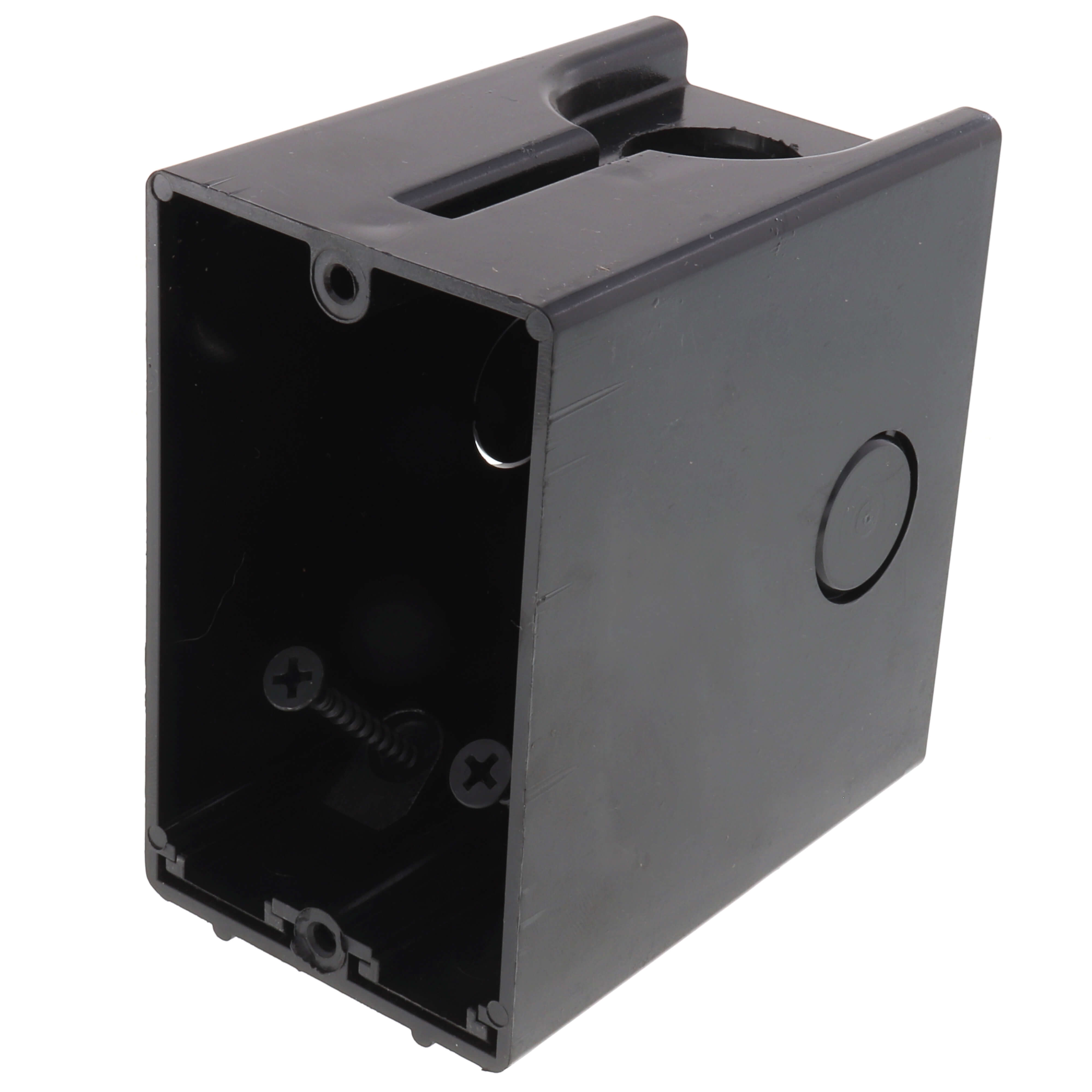

The ARLINGTON F101H non-metallic outlet box is designed for a variety of wall thicknesses and can be removed, adjusted, and re-mounted. It mounts directly to wood or steel studs for secure installation. Suitable for both power and low voltage applications with the F102D voltage divider installed.

• Removable, adjustable, and re-mountable
• Mounts directly to wood or steel stud
• Suitable for power and low voltage applications

Product Highlights

This 1-gang outlet box has a capacity of 22.3 cubic inches and is UL listed.

Product Information

Standard Information

• Brand: ARLINGTON
• Manufacturer Part Number: F101H
• Country of Origin: US

Technical Specifications

• Type: Non-Metallic Screw-On Boxes
• Depth: 3.5 Inches
• Width: 3.72 Inches
• Length: 2.28 Inches
• Material: Plastic
• Mounting: Screw
• Standard: UL Listed
• Knockouts: 2
• Cable Entry: Knockouts
• Cubic Capacity: 22.3 Cubic Inches
• Number Of Outlet: 1
• Country of Origin: US
• Mounting Orientation: Horizontal
• Mounting Type: Threaded
• Number of Gangs: 1
• Application: For new/retrofit construction, power and low voltage applications with the F102D voltage divider installed
• Includes: NM Cable Connector
• Size: L(3.720) x W(2.280) x H(3.500) IN
• Certifications: PROP65
• Sub Brand: One-Box
• Brand: Arlington
• UNSPSC: 39121308
• ECCN: EAR99
• Manufacturer: Arlington Industries, Inc
• Product Line: One Box
• Product Type: Mounting Box
