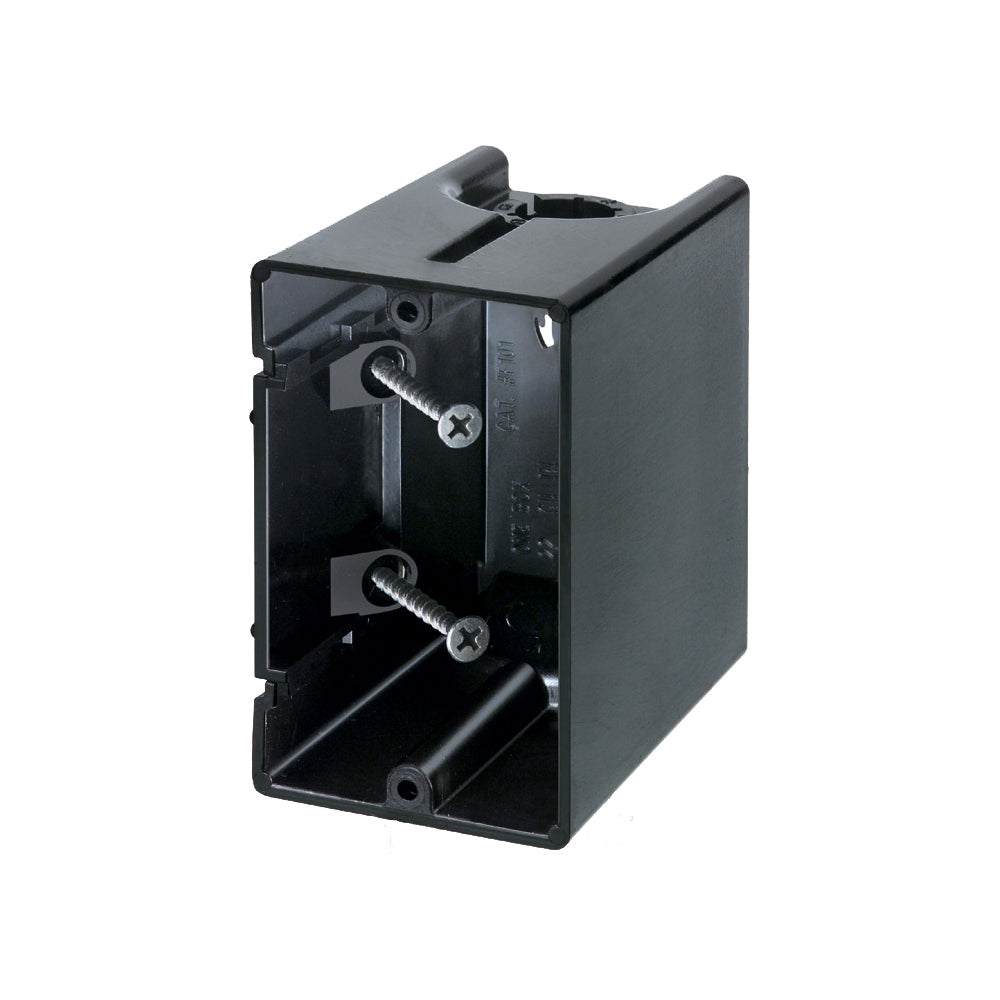

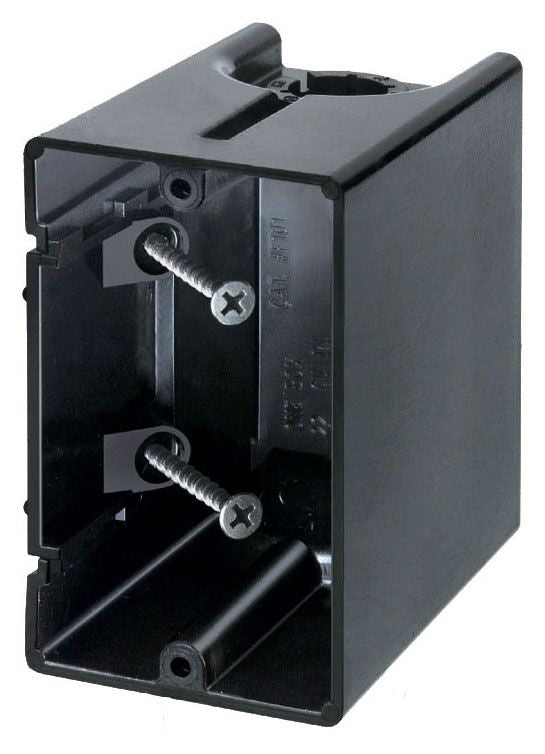

Arlington F101 ONE-BOX Non-Metallic Outlet Box 22.5 cu-in Capacity

Product Description

The Arlington ONE-BOX F101 is a non-metallic outlet box. It has a capacity of twenty-two point five cubic inches, designed for one gang and one outlet. The box mounts vertically and features threaded mounting, making it suitable for both new and retrofit installations. It can be securely attached to a wood or steel stud using angled screws. The design eliminates any wobble during installation, ensuring a stable fit.

• Versatile for various wall thicknesses
• Fast installation with an NM cable connector
• Rated for two hours of fire resistance

Product Highlights

This outlet box is ideal for both power and low voltage applications equipped with the F102D voltage divider. It is a durable and efficient choice for residential construction.

Product Information

Standard Information

• Type: Non-Metallic
• Material: Plastic

Technical Specifications

• Capacity: 22.5 cu-in
• Number of Gangs: 1
• Number of Outlets: 1
• Dimensions: 2.28 in W x 3.51 in D x 3.72 in H
• Mounting Orientation: Vertical
• Mounting Type: Threaded
• Color: Black
