Arlington DBVR1C Low Profile Inbox for Flat Surface Retrofit Vertical Clear Cover

Product Description

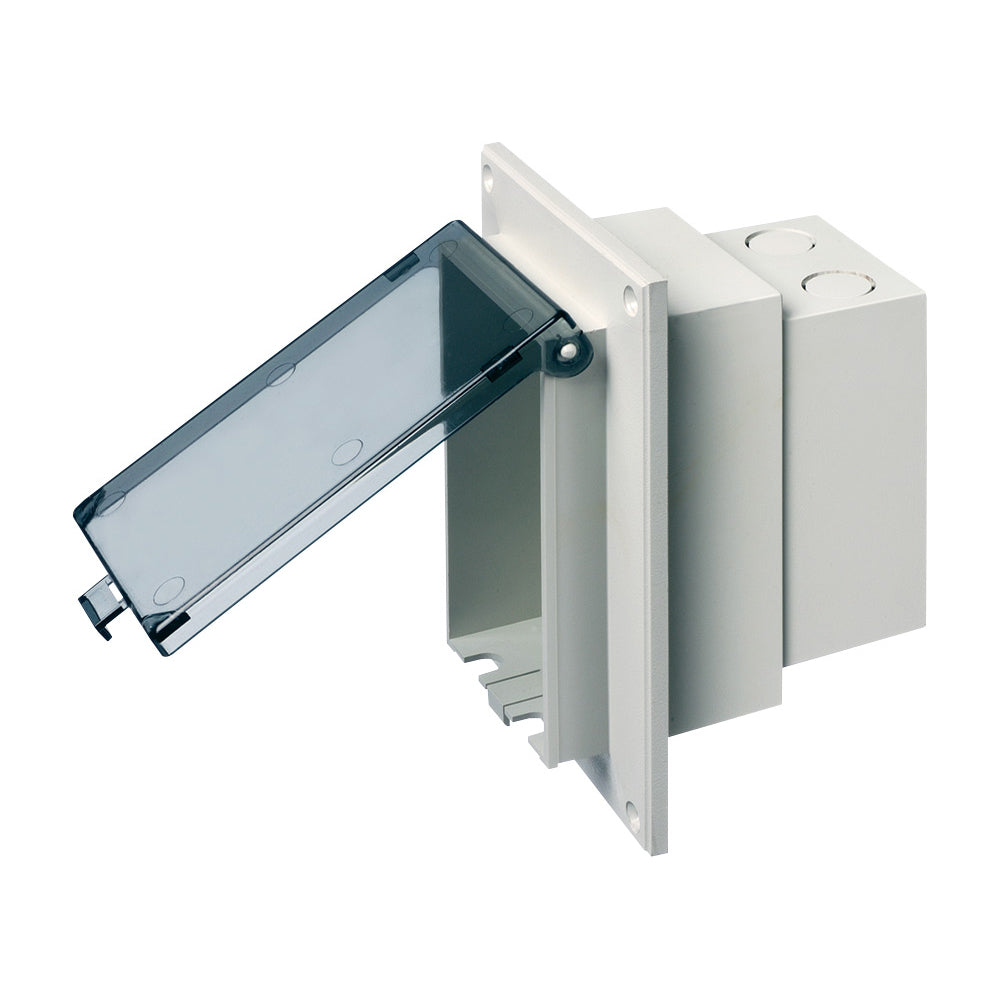

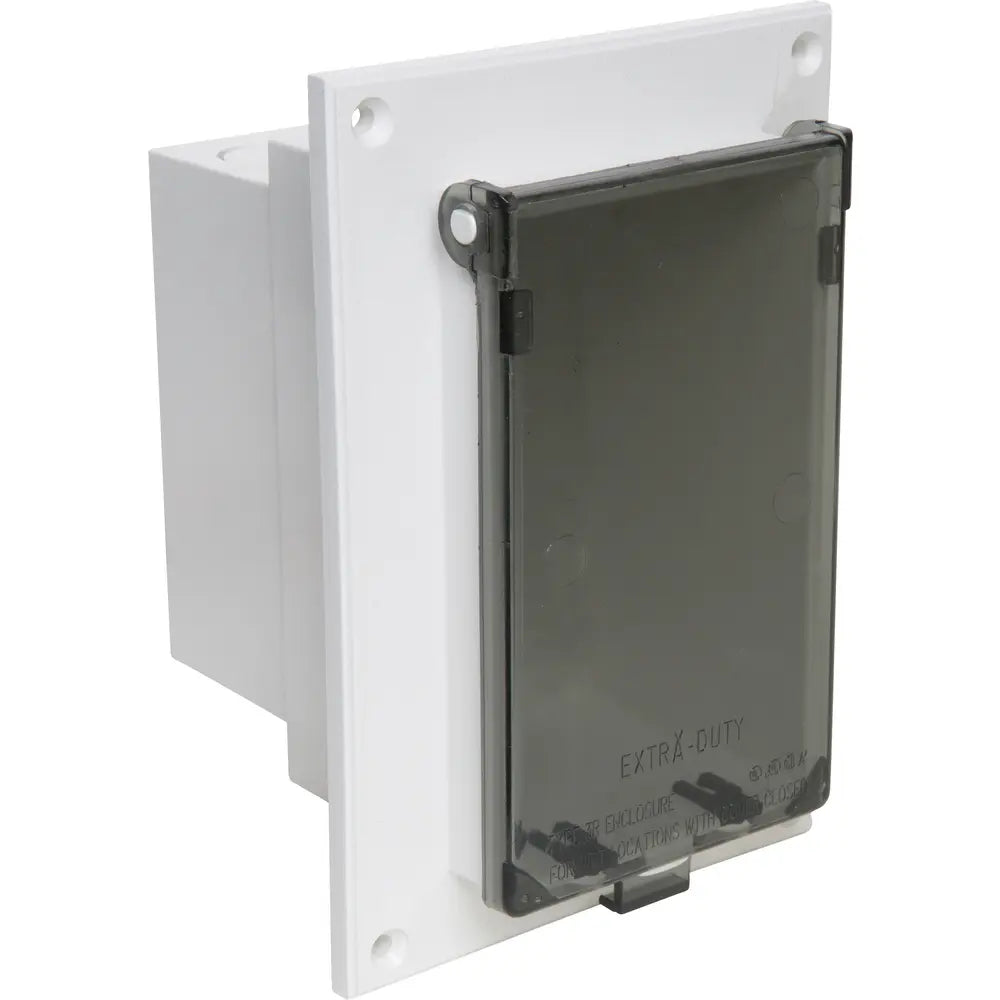

The Arlington DBVR1C is a low profile electrical box designed for flat surface retrofit construction. This single gang box features a weatherproof-in-use extra-duty clear cover. It can be mounted vertically and is made of UV-rated plastic for durability. The dimension of the box is seven point one eight six inches long by four point nine three four inches wide by five point one six inches deep with a capacity of twenty-two cubic inches.

• One-piece assembly simplifies installation and removes the need for multiple components
• Compatible with most single gang wiring devices
• Textured surface allows for paintability to match surroundings

Product Highlights

This product is ideal for outdoor applications requiring protection from elements. It helps organize wiring for fixtures in a clean and efficient manner.

Product Information

Standard Information

• Manufacturer: Arlington
• Part Number: DBVR1C

Technical Specifications

• Type: Low Profile
• Enclosure Type: NEMA 3R
• Number of Gangs: 1
• Number of Outlets: 1
• Material: Plastic
• Capacity: 22 cu-in
• Mounting Orientation: Vertical
• Cable Entry Size: Knockout
