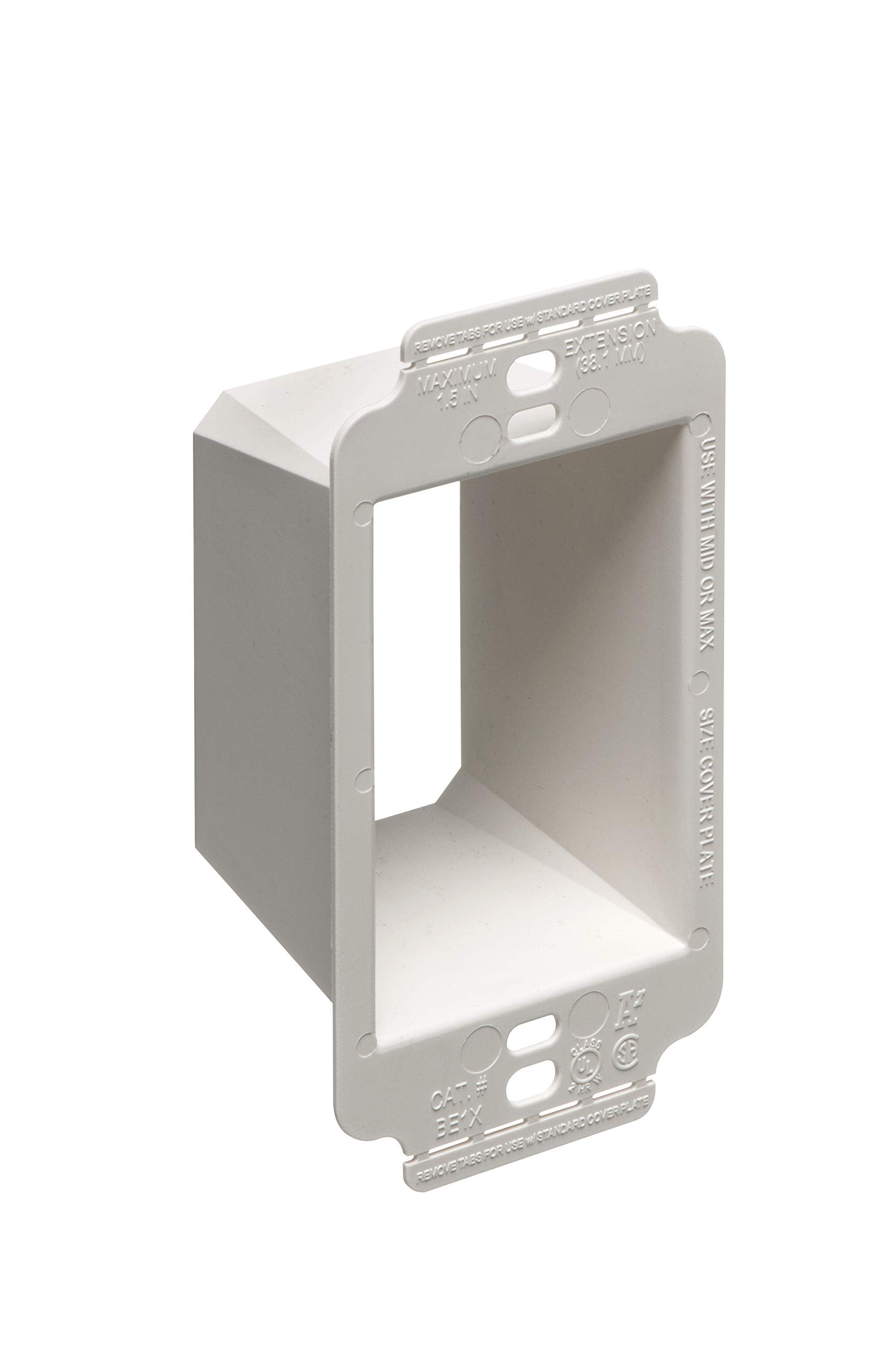

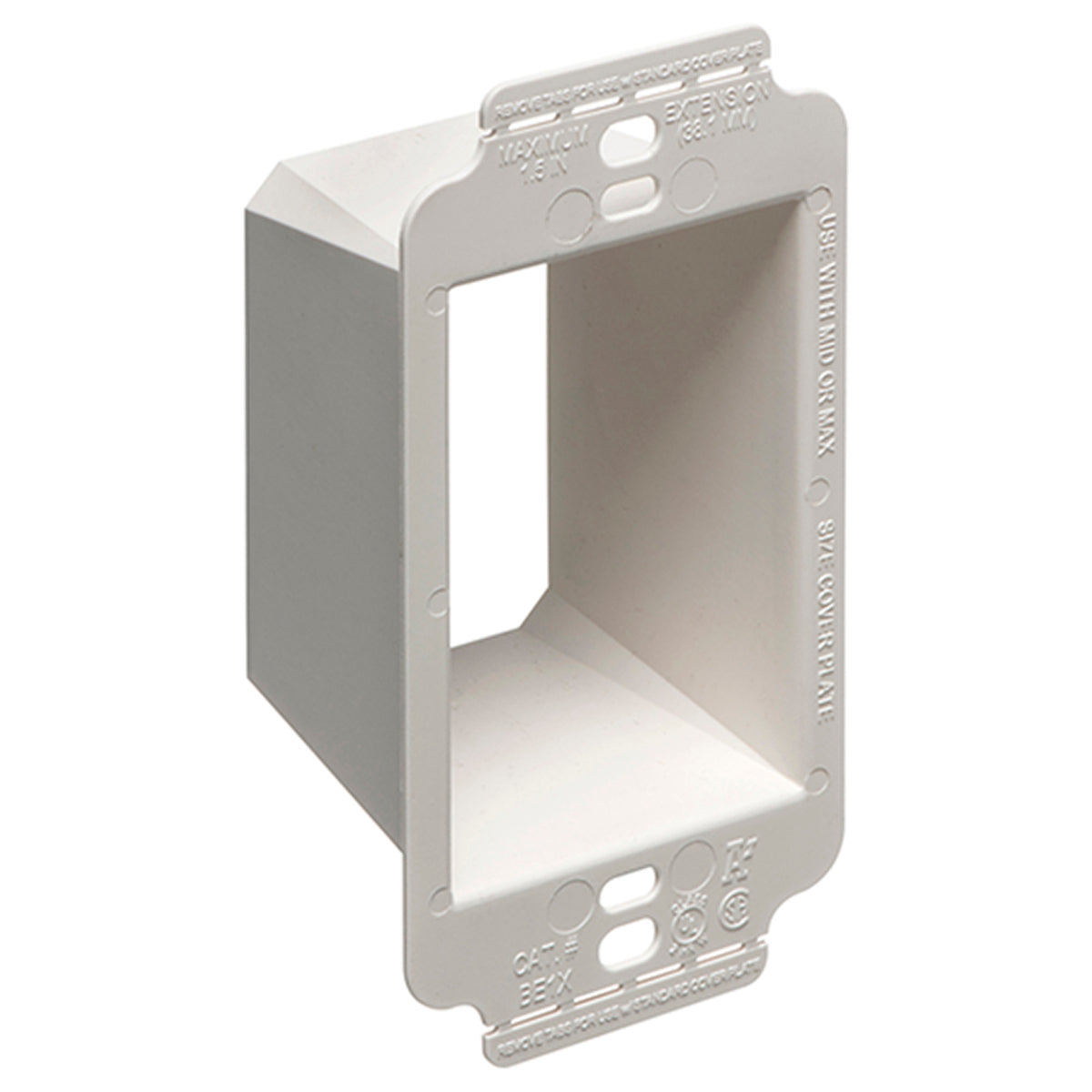

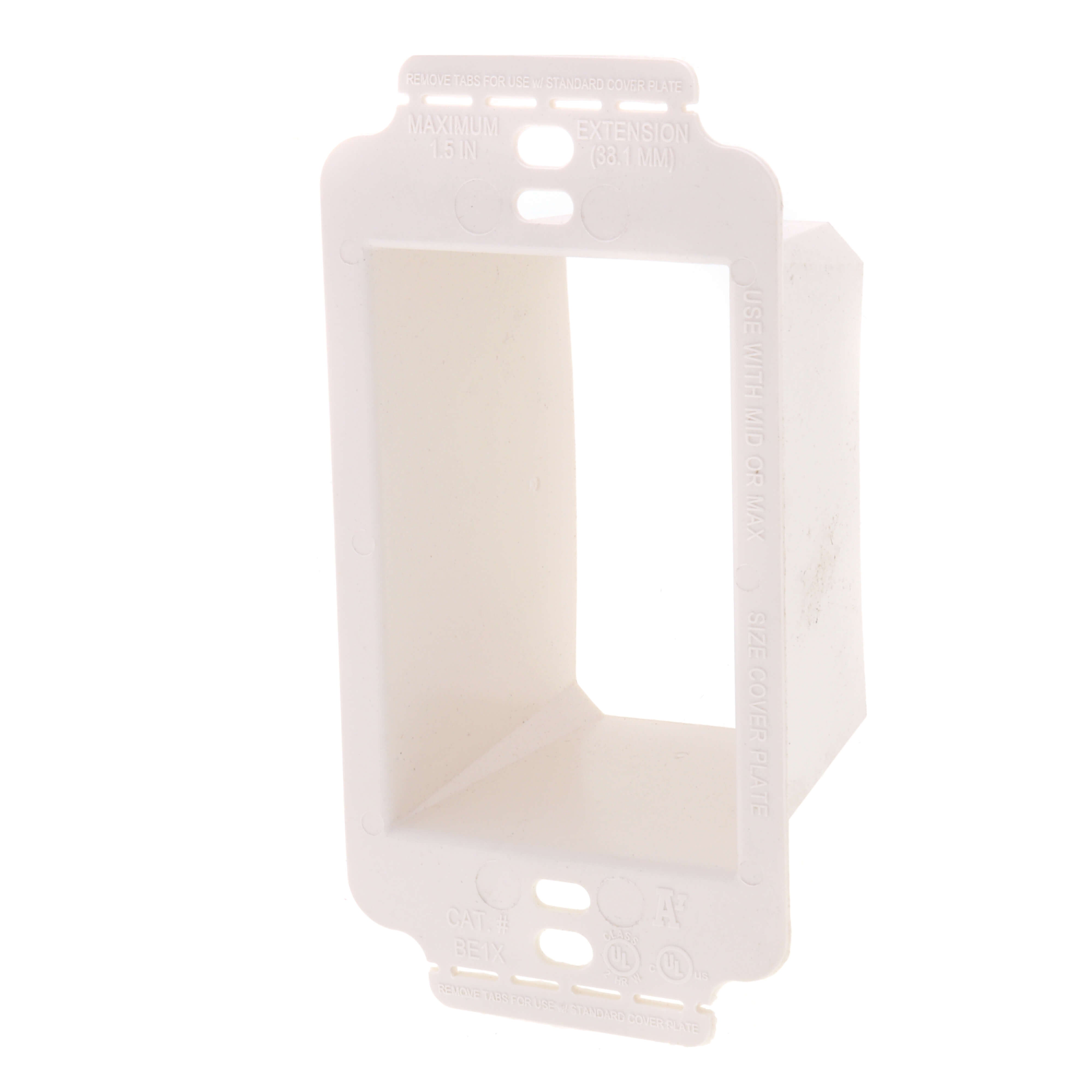

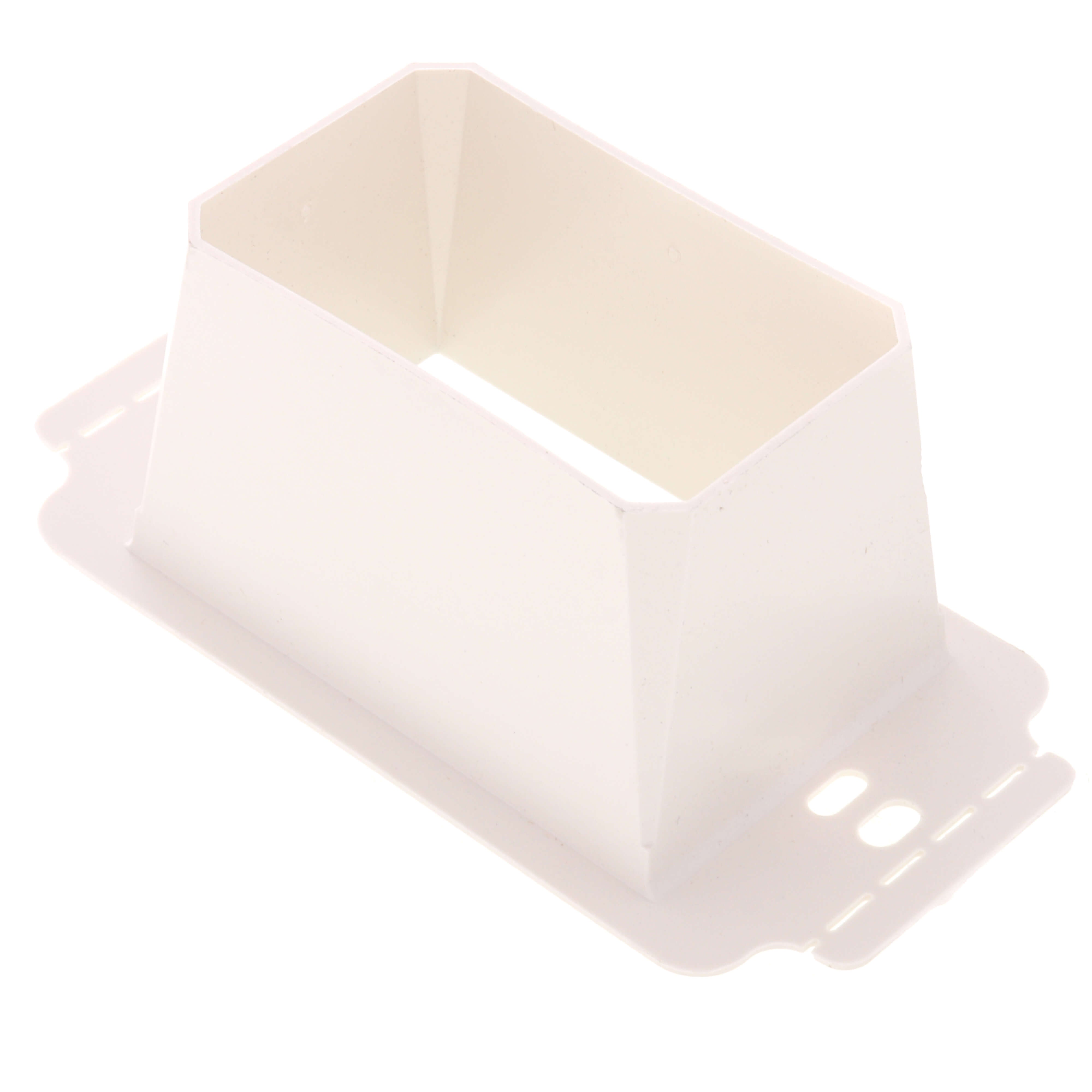

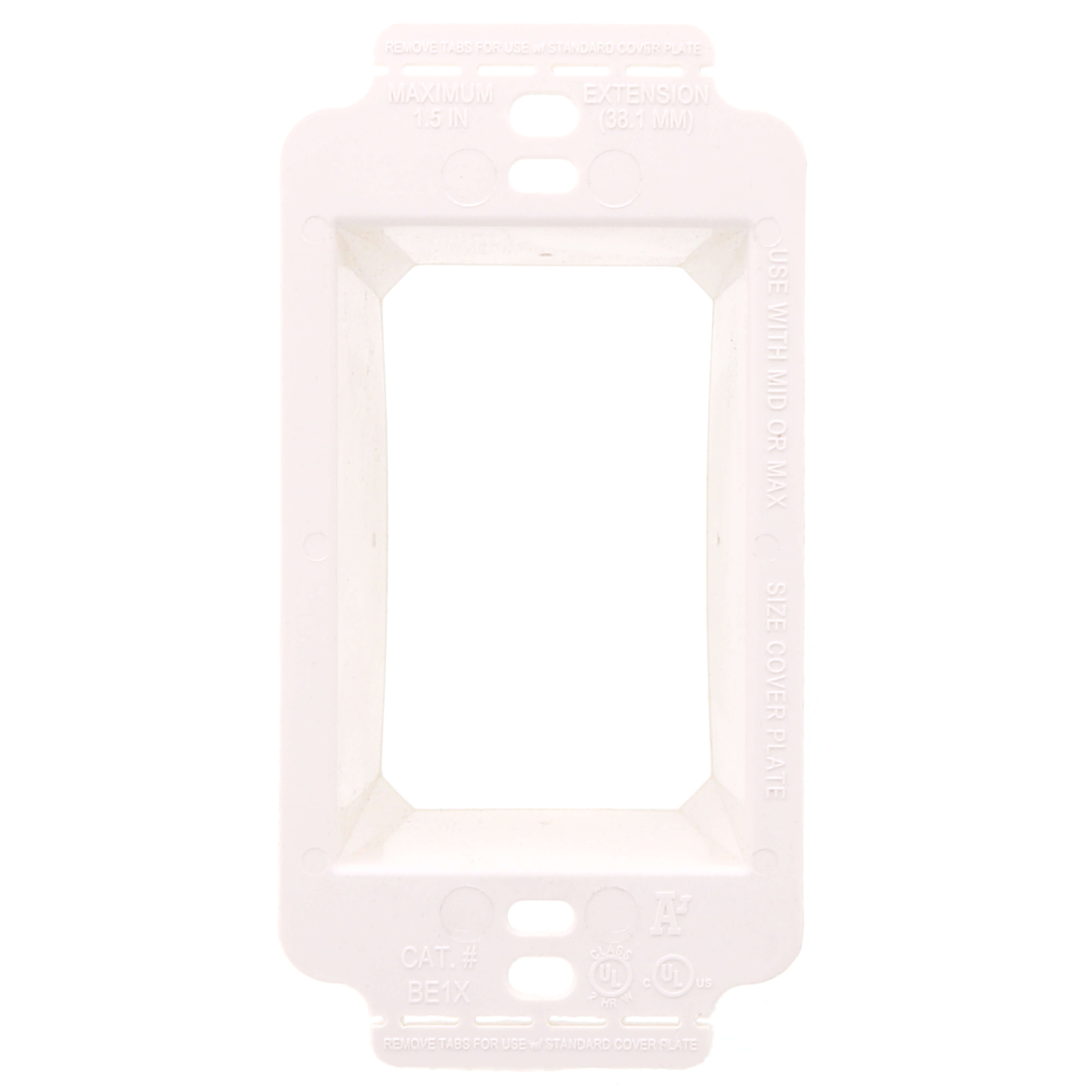

Arlington BE1X Box Extender with Larger Flange Single-Gang

Product Description

The ARLINGTON BE1X box extender offers enhanced support in oversized wall openings. This single-gang box extender levels and supports wiring devices when the box is set back from the wall, extending it up to 1-1/2". It features a 2-hour fire rating and is suitable for use with 4-inch square electrical boxes and handy boxes.

• Levels and supports wiring devices set back from the wall surface.
• Works with standard devices, switches, and GFCIs.
• Provides better device support in miscut or oversized wall openings.

Product Highlights

This box extender is ideal for providing a level and supported wiring device that is flush with the wall surface.

Product Information

Standard Information

• Brand: ARLINGTON
• Manufacturer Part Number: BE1X
• Country of Origin: US

Technical Specifications

• Type: Non-Metallic Box Extensions
• Color: White
• Width: 2.33 Inches
• Height: 4.63 Inches
• Material: Plastic
• Mounting: Screw
• Standard: UL, CSA
• Insulated: No
• Number Of Gangs: Single-Gang
• Country of Origin: US
• Depth: 1.813 in
• Mounting Type: Wall
• Standards/Approvals: UL Listed|CSA Certified|2014 NEC Article 314.20|cULus Listed
• Trade Size: 1-Gang
• Application: For handy boxes and 4 in square electrical boxes with plaster rings for a single switch or receptacle, standard devices, switches and GFCIs applications
• Box Depth: 1-1/2 in.
• Box Shape: Rectangle
