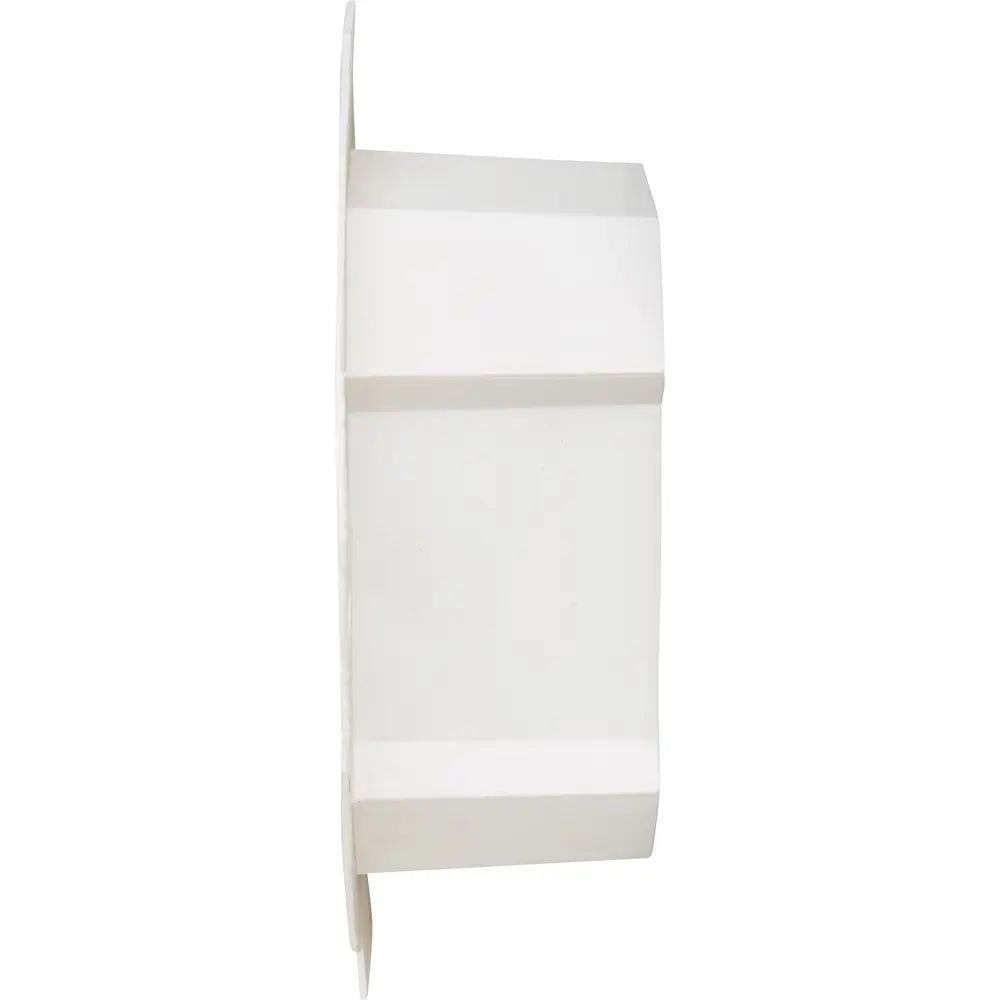

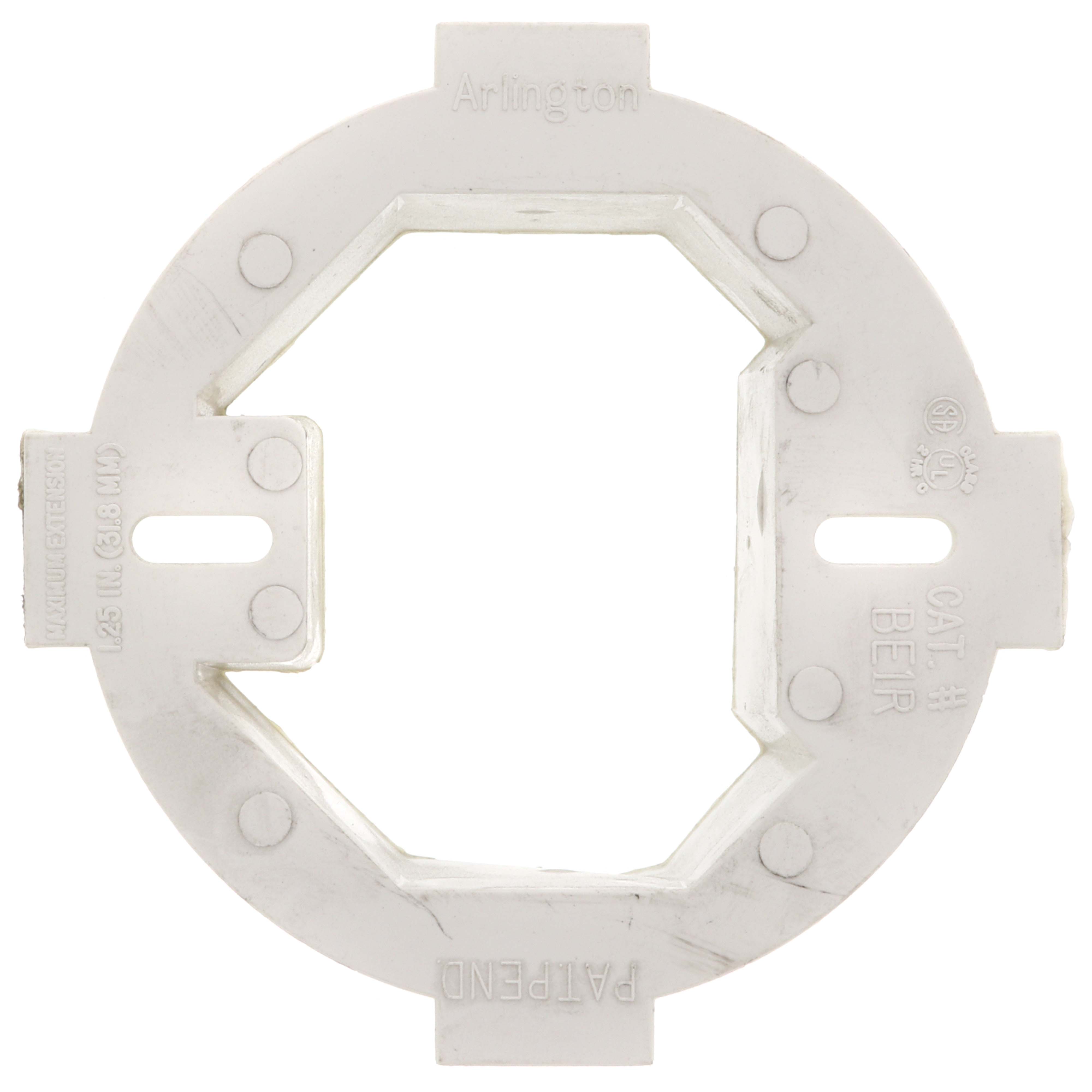

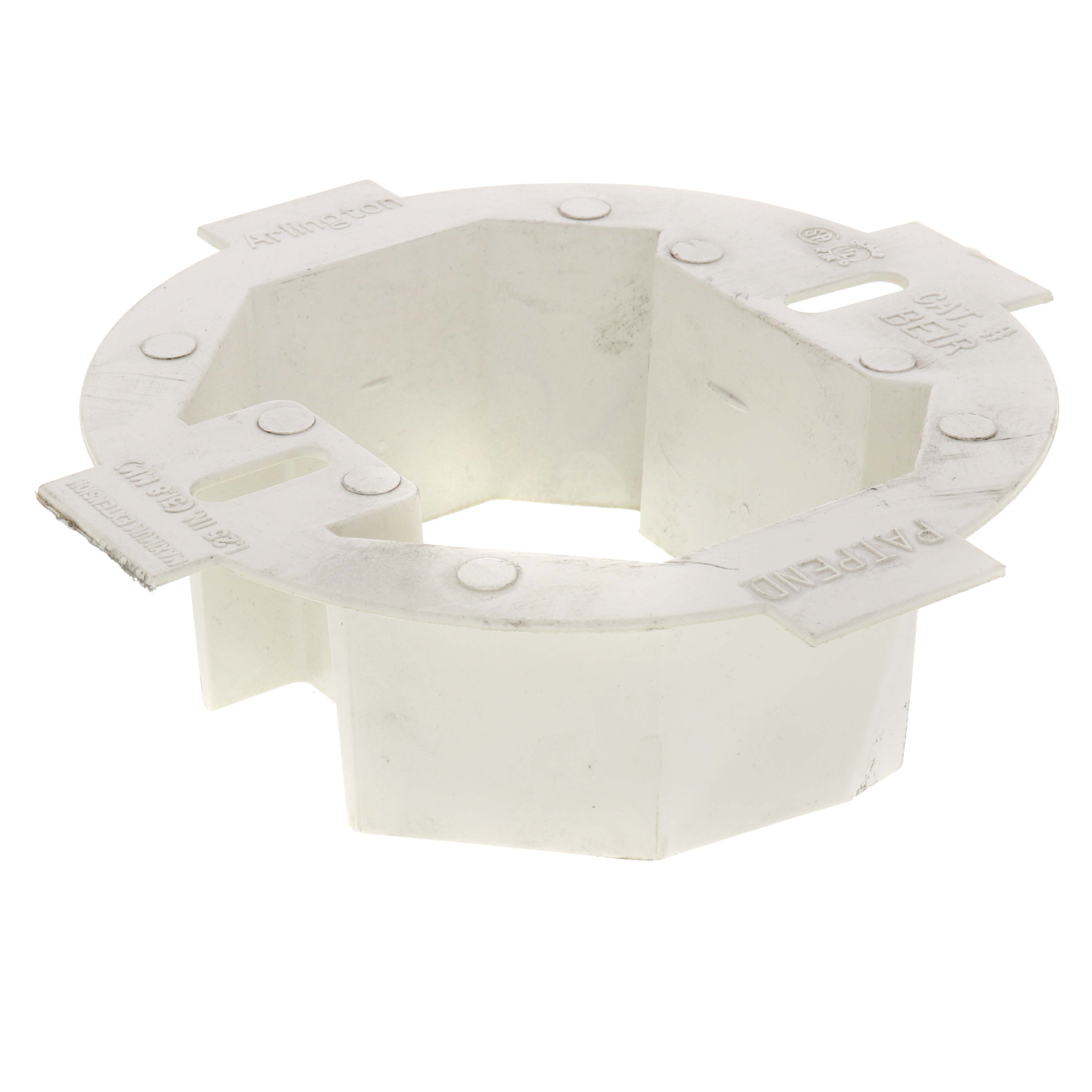

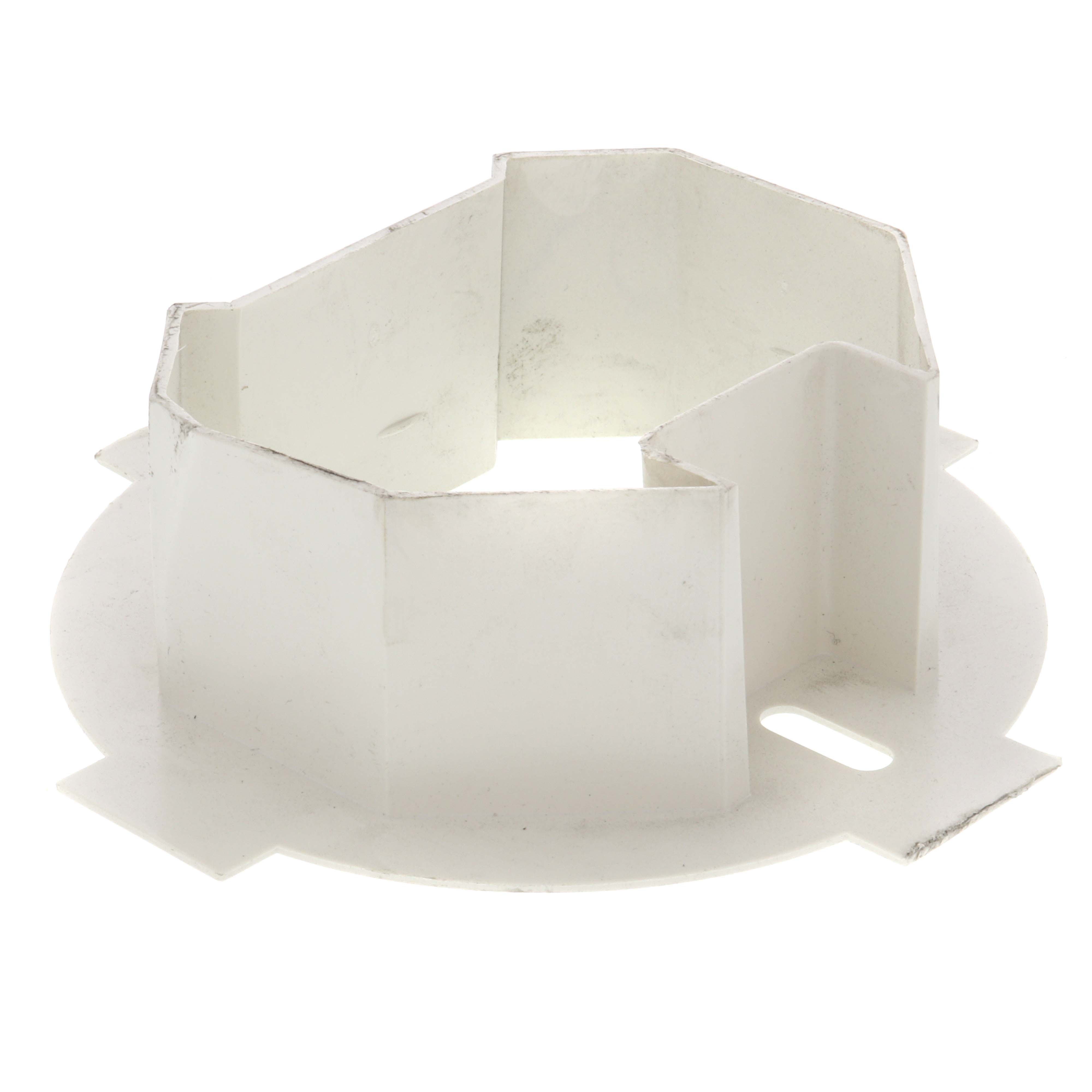

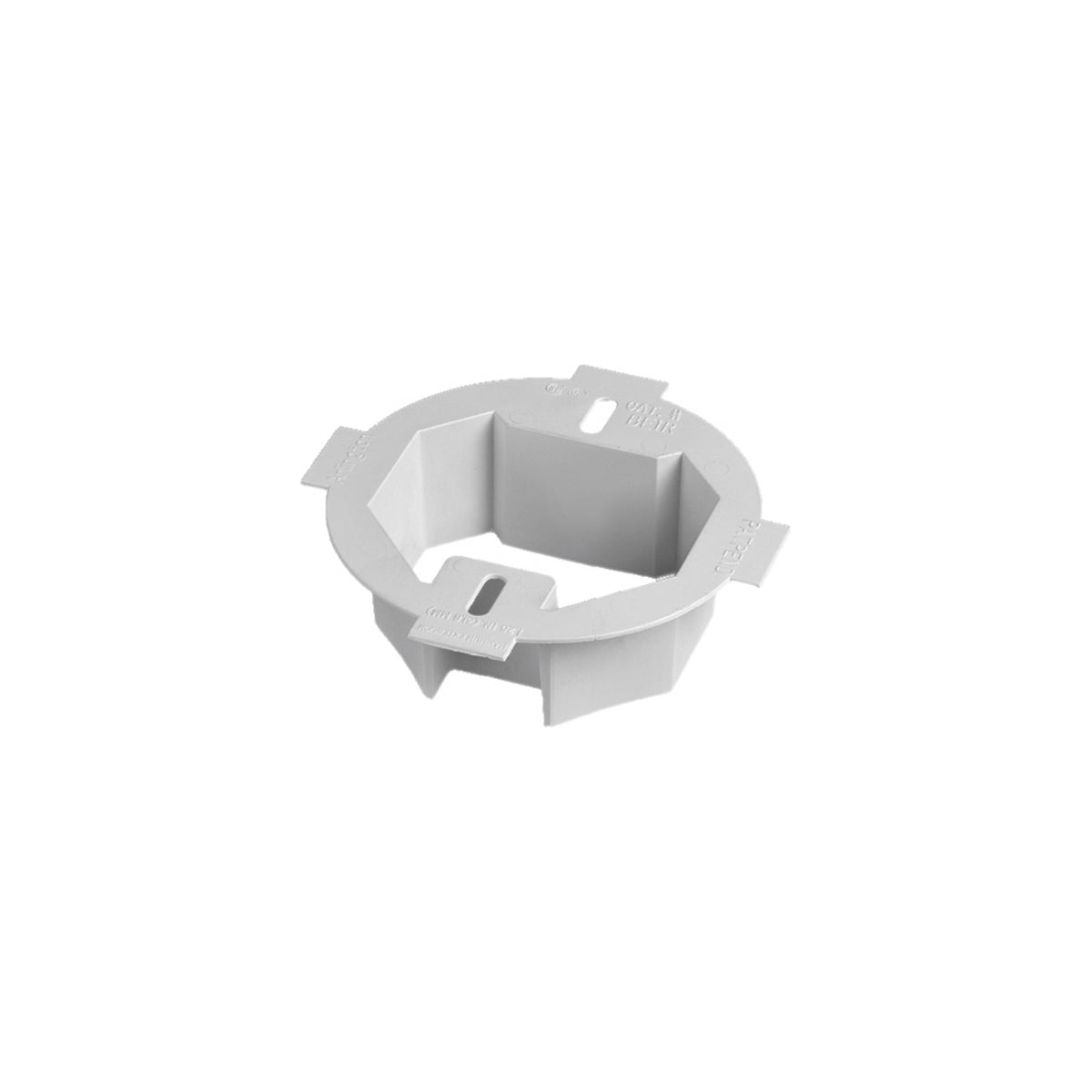

Arlington BE1R Box Extender 1-Gang 4.85 in Length x 4.35 in Width x 1-1/2 in Depth

Product Description

The Arlington BE1R box extender extends set back metal or non-metallic electrical boxes up to 1-1/2 inches. This 1-gang extender works with most steel and non-metallic outlet boxes. It provides a level, fully supported wiring device that's flush with the wall surface. In steel boxes, it prevents arcing and shorting.

• Extends set back metal or non-metallic electrical boxes up to 1-1/2 inches
• Works with any 1-gang device
• Prevents arcing and shorting in steel boxes

Product Highlights

This box extender brings the wiring device level with the ceiling surface and prevents arcing in steel boxes.

Product Information

Standard Information

• Brand: ARLINGTON
• Manufacturer Part Number: BE1R
• Country of Origin: US

Technical Specifications

• Material: Plastic
• Style: Compact
• Finish: Polished
• Installation Type: Screw-In
• Batteries Included?: No
• Batteries Required?: No
• Included Components: BE1R
• Type: Non-Metallic Box Extensions
• Width: 4.35 Inches
• Mounting: Screw
• Standard: cULus
• Insulated: No
• Number Of Gangs: Single-Gang
• Country of Origin: US
• Gang: 1
• Length: 4.85 in
• Depth: 1-1/2 in
• Application: For 3-1/2 and 4 in round or octagonal ceiling boxes applications
• Mounting Type: Ceiling
• Standards/Approvals: CSA File No. LR49636|cULus Listed|UL File No. E170558|2014 NEC Article 314.20
• Product Depth: 1 1/2 in
• Suitable For Use With: 3-1/2 Inch and 4 Inch Round or Octagonal Boxes
