Product Description

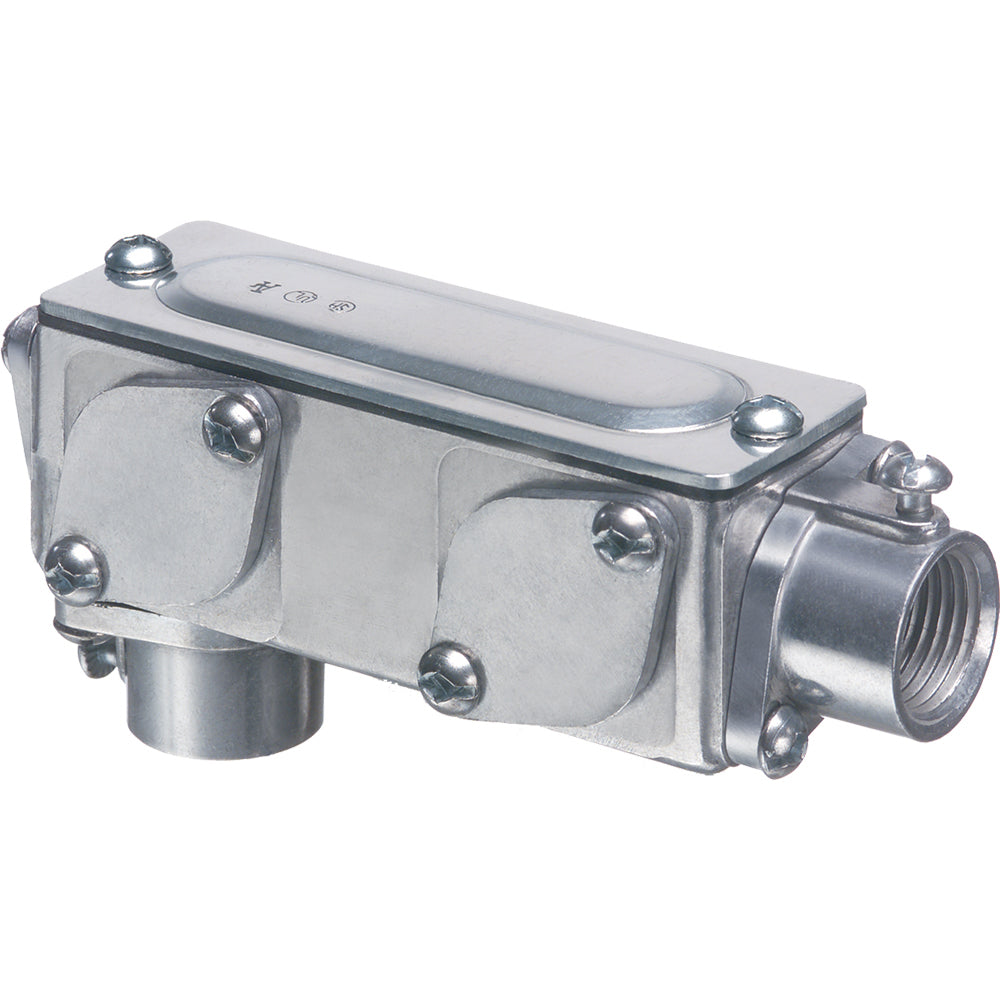

The Arlington conduit body with part number 932 is a copper-free aluminum die cast body. It provides a universal solution as it ships as an LB connection while also converting to a T, LL, LR, or C type as needed. This product features a threaded x set screw connection and is well suited for use with EMT and rigid conduits. Its capacity is eleven and one-half cubic inches, making it a versatile choice for various applications.
- Five-in-one functionality for various configurations
- Includes threaded flange for reliable installation
- Marked for volume and wire fill for easy installation
Product Highlights
This conduit body simplifies installation needs by combining multiple body types into one unit. It allows for space savings and efficiency by reducing the need for multiple parts on site.
Product Information
Standard Information
-
Brand: Arlington
-
MPN: 932
Technical Specifications
-
Body Type: LB
-
Hub Size: 1 inch
-
Material: Copper-free Die Cast Aluminum
-
Dimensions: 6.53 inches long x 3.28 inches wide x 2.16 inches high
-
Capacity: 11-1/2 cubic inches
-
Connection Type: Threaded x Set Screw
-
Standards: UL and CSA
-
Warranty: 1 Year Warranty Against Manufacturer Defects
