Arlington 931 5-in-1 Conduit Body With Cover, Gasket, 3/4 in Hub, 7.8 cu-in Capacity

Product Description

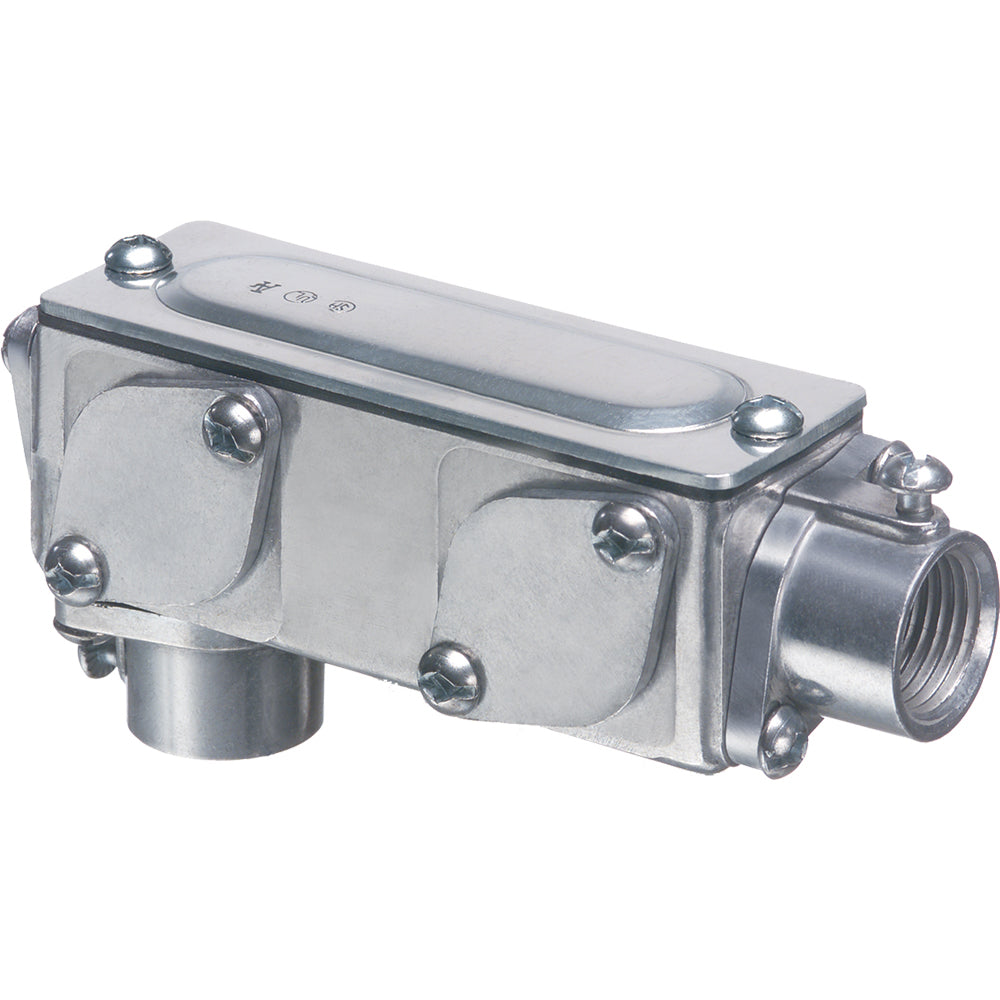

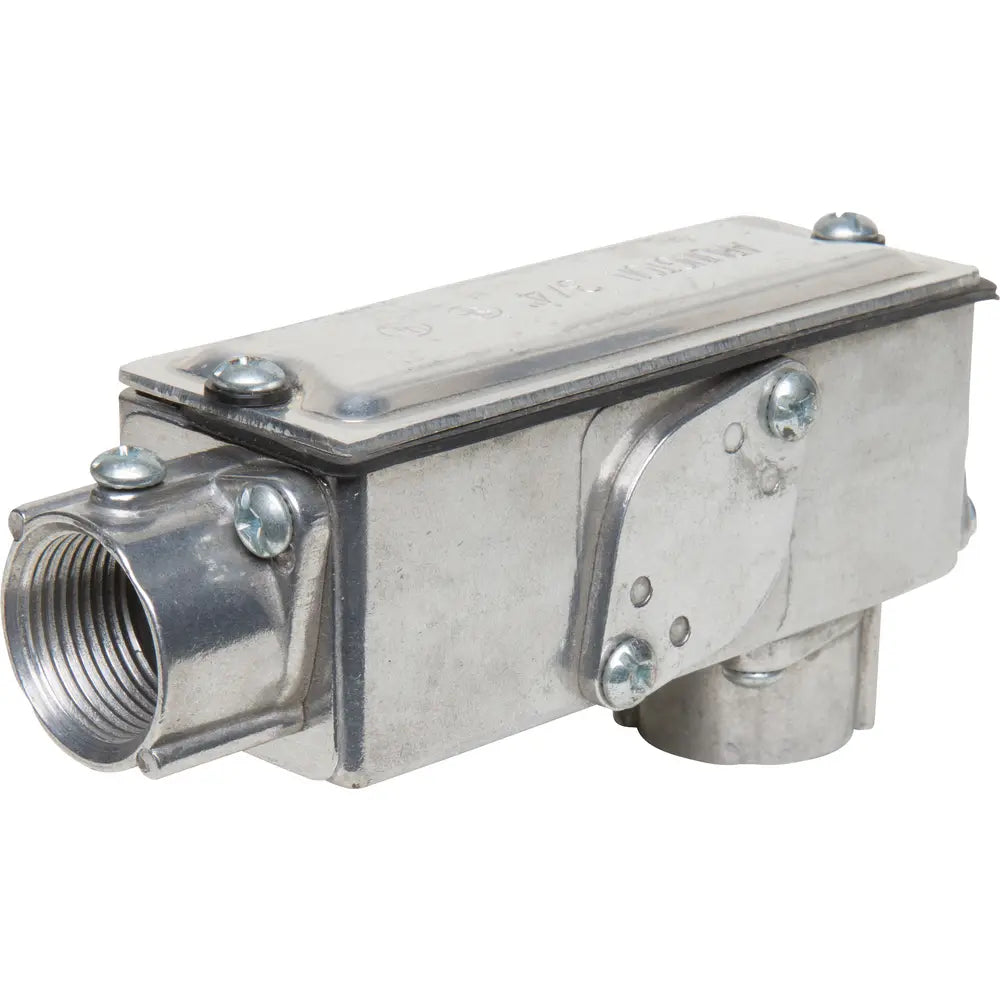

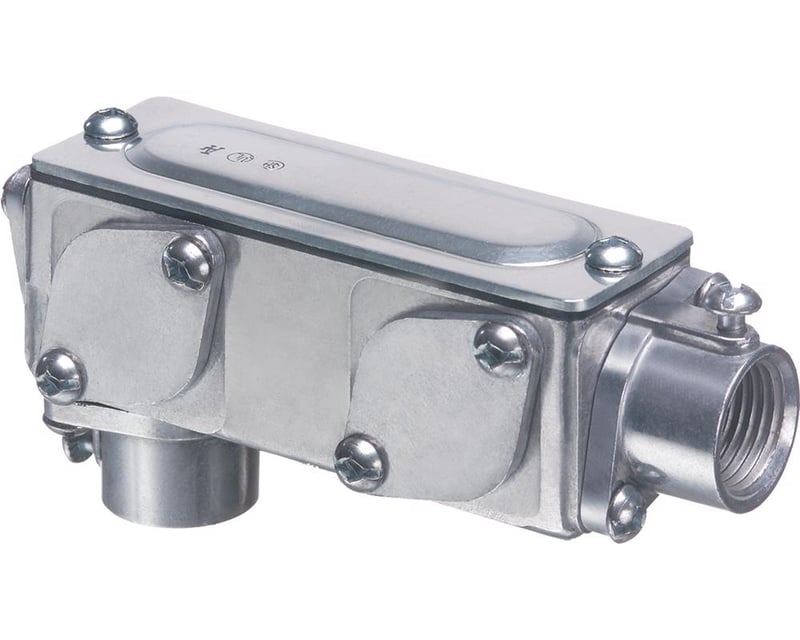

The Arlington AnyBODY conduit body model 931 features a versatile design. It serves as a 5-in-1 conduit body, offering an LB body with a three-quarter inch hub and a capacity of seven point eight cubic inches. This unit is constructed from copper-free die-cast aluminum, ensuring durability and reliability in electrical installations.

• 5-in-1 conduit body design
• Seven point eight cubic inch capacity
• Compatible with IMC and rigid set screw EMT cable

Product Highlights

This conduit body is convenient for projects needing multiple configurations. It can be used as an LB or converted to a T, LL, LR, or C body. The volume and wire fill are marked inside each body for ease of use.

Product Information

Standard Information

• Brand: Arlington
• MPN: 931

Technical Specifications

• Color: Silver
• Material: Copper Free Die Cast Aluminum
• Body Type: LB
• Dimensions: 5.64 in L x 2.77 in W x 2.02 in H
• Hub Size: 3/4 in
• Capacity: 7.8 cu-in
• Connection Type: Threaded x Set Screw
• Country of Origin: CN
